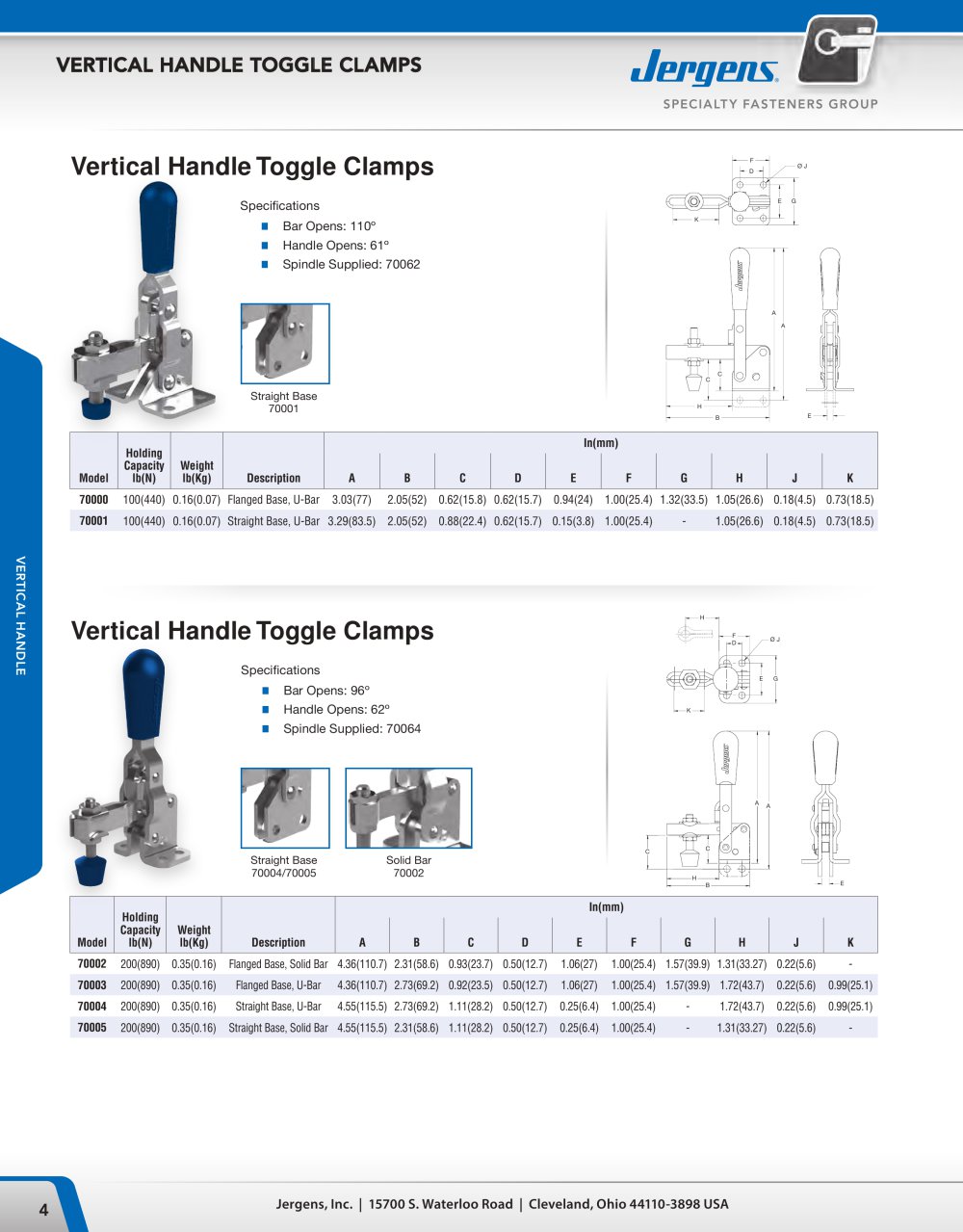

7 T O G G L E C L A M P S www.jergensinc.com 7.4 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA 70350 This popular style of clamp includes solid bar and U-Bar construction. Each clamp accepts all 5/16-18 diameter spindles. Each clamp is supplied with a 70947 neoprene tipped spindle assembly. The vertical handle type is supplied with a blue vinyl handle. • Holding capacity: 500 lbs. max. • Weight: 11 oz. • Handle moves 60°, bar 100° • Solid Bar: 5/8" height, 1/4" wide • U-Bar: 5/8" height, 21/64" inside width • Horizontal spindle adjustment: 1 1/2" • Spindle Thread: 5/16-18 Hold Down Vertical Part Handle Bar Base Number A B C D E F G H J Type Type Type 70350 5 5/8 1 1/4 4 3/4 1.25 - 5/16 1/4 2.25 Vertical Solid Flange 70355 5 15/16 1 9/16 4 3/4 - 1/4 5/16 - 2.25 Vertical Solid Straight 70360 4 1/16 1 1/4 4 3/4 1.25 - 5/16 1/4 2.25 Tee Solid Flange 70365 5 5/8 1 1/4 5 1/4 3/4 1.25 - 5/16 1/4 3.4375 Vertical Solid Flange 71020 4 1/16 1 9/16 3 3/4 3/4 - 1/4 5/16 1/4 2 1/4 Tee Solid Straight 71021 5 5/8 1 9/16 4 1/8 3/4 - 1/4 5/16 1/4 3 7/16 Vertical Solid Straight 71022 4 1/16 1 9/16 4 1/8 3/4 - 1/4 5/16 1/4 3 7/16 Tee Solid Straight 71023 4 1/16 1 1/4 4 1/8 3/4 1.25 1/4 5/16 1/4 3 7/16 Tee Solid Flange 70380 5 5/8 1 1/4 4 3/4 1.25 - 5/16 1/4 2.25 Vertical U-Bar Flange 70385 6 5/16 1 9/16 4 3/4 - 1/4 5/16 - 2.25 Vertical U-Bar Straight 70390 4 1/16 1 1/4 4 3/4 1.25 - 5/16 1/4 2.25 Tee U-Bar Flange 70395 5 5/8 1 1/4 5 1/2 3/4 1.25 - 5/16 1/4 3.75 Vertical U-Bar Flange 71024 4 5/8 1 9/16 3 3/4 3/4 - 1/8 5/16 1/4 2 1/4 Tee U-Bar Straight 71025 6 5/16 1 9/16 4 7/16 3/4 - 1/8 5/16 1/4 3 3/4 Vertical U-Bar Straight 71026 4 5/8 1 9/16 4 7/16 3/4 - 1/8 5/16 1/4 3 3/4 Tee U-Bar Straight 71027 4 1/16 1 1/4 4 7/16 3/4 1.25 - 5/16 1/4 3 3/4 Tee U-Bar Flange *Straight base type dimension. Note: Width of tee handle is 3 5/8". • Solid arm models include a bolt retainer • U-Bar models include 2 flange washers A* J F B* A C B D G H E 9/32 DIA. L A A* K For accessories see pages 7.19 For interchangeability with other toggle clamps, see page 7.42
