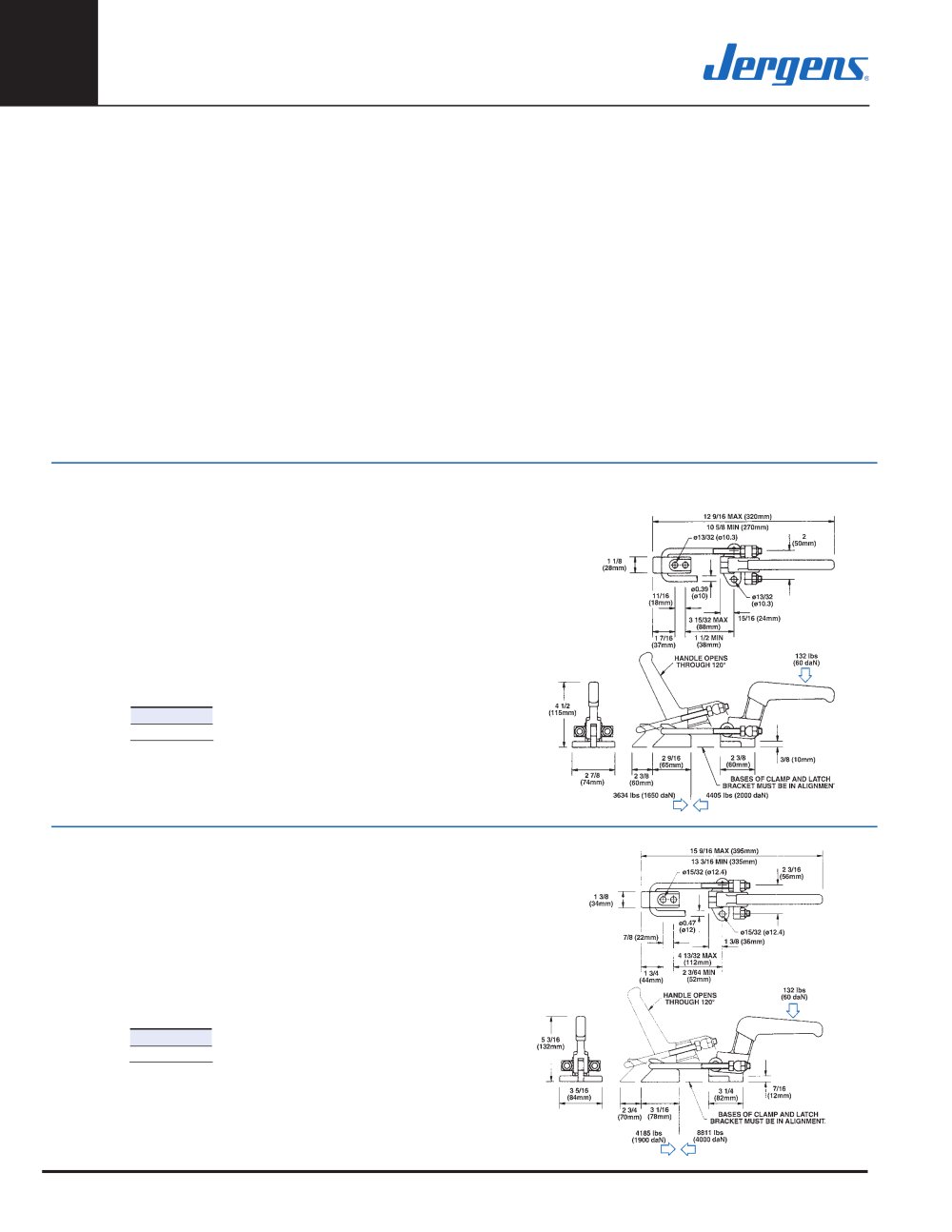

7 T O G G L E C L A M P S
www.jergensinc.com
7.36 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA
Features:
Latch clamps are available in two sizes. Bracket holes will not elongate over
time. They have a small footprint for space constrained applications.
All latch clamps are fitted with PVC handle grips.
Specifications:
The HDL Series clamps have precision cast steel bases and latch brackets with
cast iron handles. The finish is black oxide.
Installation:
It is important that the clamp and latch bracket are in alignment when viewed from
both the top and the side to ensure that the clamp locks over center correctly.
The ‘U’ bolt should be adjusted to ensure an equal pull on either side.
Horizontal Latch Clamps
Model HDL4400
Nominal Holding Force: 4,405 lbs
Weight: 3 lbs 1 oz.
Supplied complete with: Latch Bracket
as shown
Model HDL8800
Nominal Holding Force: 8,811 lbs
Weight: 5 lbs 9 ozs.
Supplied complete with: Latch Bracket
as shown
Part Number
72301
Part Number
72302
Horizontal Latch Clamps
