TOGGLE CLAMPS 7
www.jergensinc.com
Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 7.35

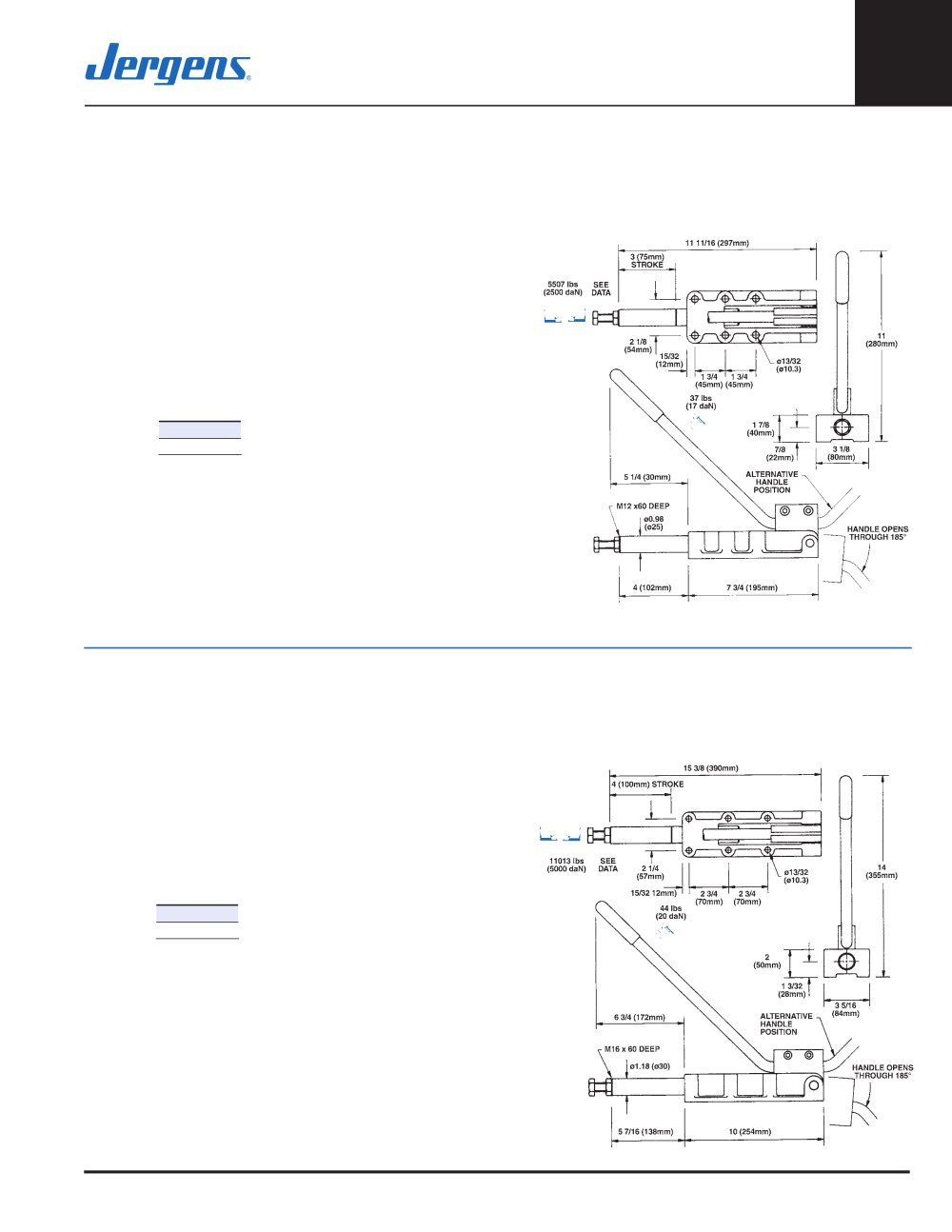

Model HDP5500/L
With 37 lbs handle force the
output force is: lbs
Fully retracted 2,203
0.394 extended 220
0.787 ,, 159
1.180 ,, 132
1.573 ,, 154
1.970 ,, 194
2.364 ,, 260
2.758 ,, 419
2.836 ,, 507
2.915 ,, 778
Fully extended 2,423
Plunger: Locks at both extended &
retracted ends of the stroke
Base: Body mounting
Nominal Holding Force: 5,507 lbs.
Weight: 9 lbs 1 oz.
Supplied complete with: Setscrew & nut
Model HDP11000/L
With 44 lbs handle force the
output force is: lbs
Fully retracted 2,423
0.394 extended 397
0.787 ,, 242
1.180 ,, 165
1.573 ,, 176
1.970 ,, 181
2.364 ,, 220
2.758 ,, 220
3.152 ,, 286
3.546 ,, 419
3.743 ,, 551
3.821 ,, 683
3.900 ,, 991
Fully extended 2,665
Plunger: Locks at both extended &
retracted ends of the stroke
Base: Body mounting
Nominal Holding Force: 11,013 lbs.
Weight: 15 lbs 6 oz.
Supplied complete with: Setscrew & nut
Part Number
72207
Part Number
72208
Heavy-Duty & Long-Handled Push-Pull Clamps
