TOGGLE CLAMPS 7
www.jergensinc.com
Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 7.17

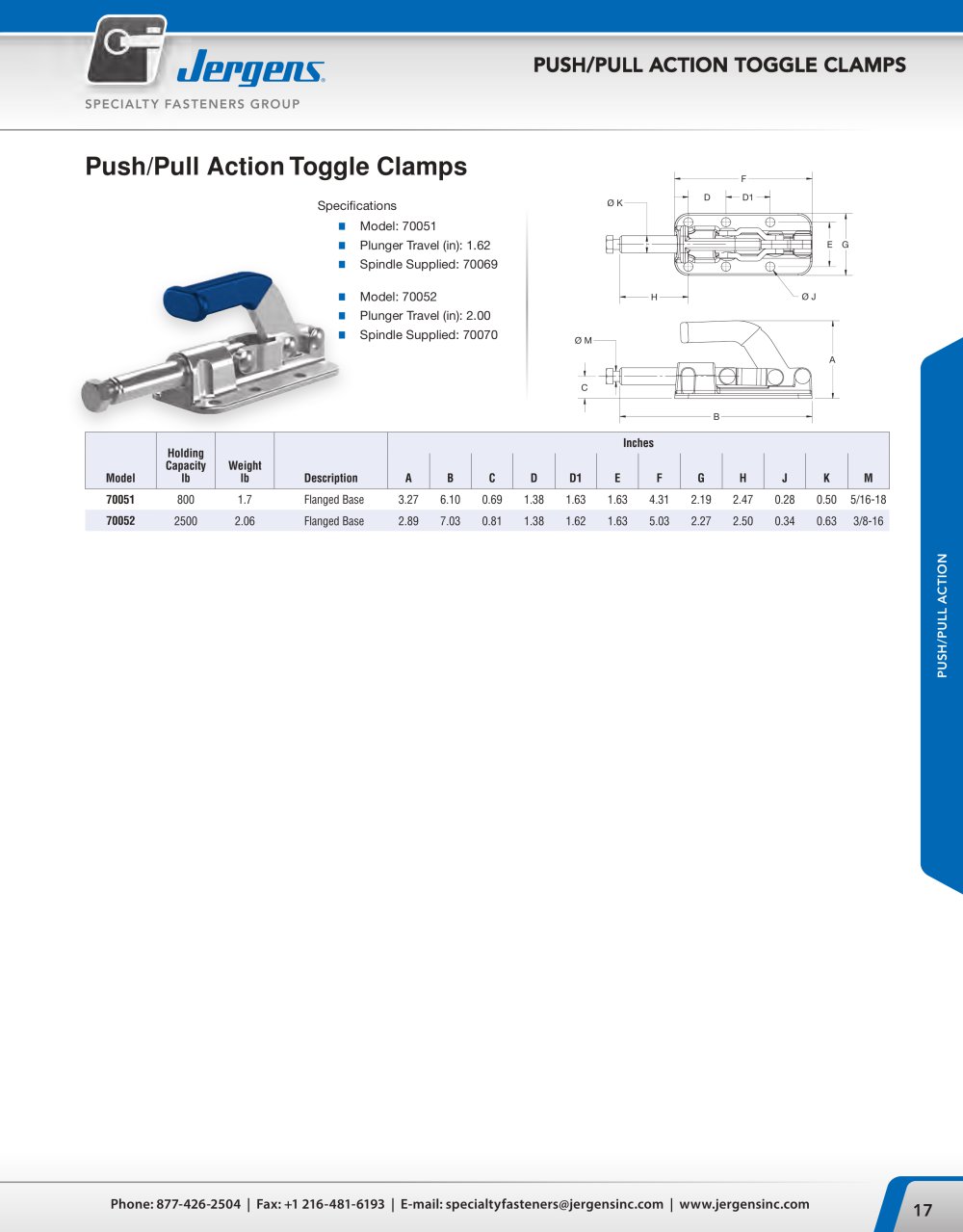

G
D
H
B
A
J
C
E
E
11/32" DIA.
HOLES
FOR 5/16"
SCREWS
Part Base
Number A B C D E G H J Type
70860 2 7/8 13/16 7 1/16 1 3/8 1 5/8 1/2 5/16 5 1/16 Flange
The forged steel construction enables this powerful
plunger-style clamp to perform on rugged, heavy duty
applications. Handle locks in both push and pull
positions. A blue vinyl handle is included.
• Holding capacity: 2500 lbs.
• Weight: 2 lbs., 2 oz.
• Plunger travel: 2"
• Plunger tapped: 3/8-16 X 1 1/4" deep
70860
Straight Line
For accessories see pages 7.19 For interchangeability with other
toggle clamps, see page 7.42
