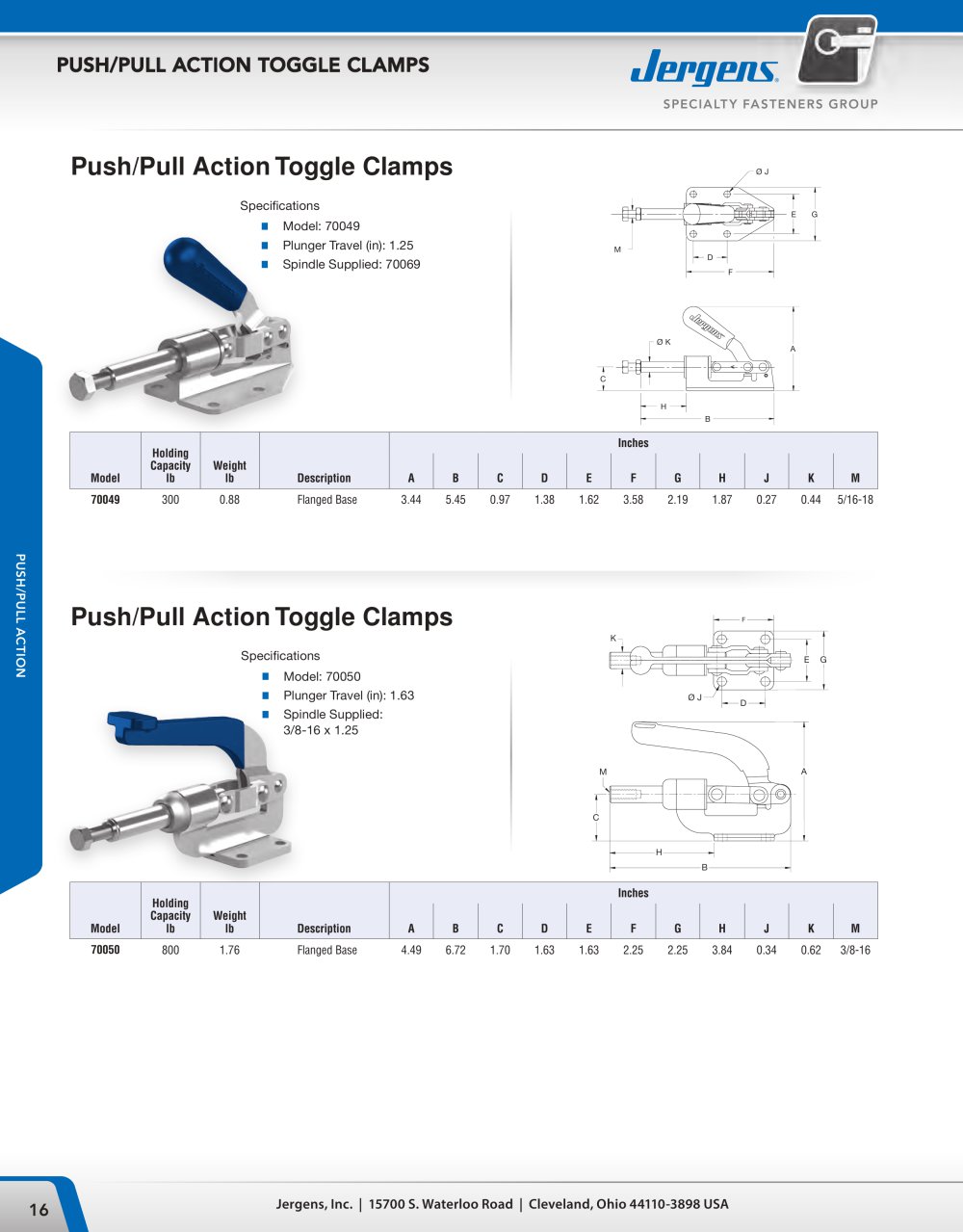

7 T O G G L E C L A M P S www.jergensinc.com 7.16 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA G D E H B A J C 70840 11/32" DIA. HOLES FOR 5/16" SCREWS The heavy duty construction of the clamp is ideal for hard to hold applications. The plunger locks in both push and pull positions with maximum pressure. A blue vinyl handle is included. • Holding capacity: 800 lbs. • Weight: 1 lb., 12 oz. • Plunger travel: 1 5/8" • Plunger tapped: 3/8-16 X 1" deep B J C A G D E H Part Number A B C D E G H J 70820 3 5/16 31/32 5 7/16 1 3/8 1 5/8 9/32 9/32 1 15/16 This popular plunger style clamp can be used for push and pull clamping. The rivet in the handle can be removed allowing the clamp to be set in either the push or pull position. A blue vinyl handle is included. • Holding capacity: 300 lbs. • Weight: 10 oz. • Plunger travel: 1 1/4" • Plunger tapped: 5/16-18 X 1" deep 70820 7/32" DIA. HOLES FOR NO. 10 SCREWS Straight Line Part Base Number A B C D E G H J Type 70840 4 9/16 1 3/4 6 3/4 1 5/8 1 5/8 5/16 5/16 4 3/16 Flange For accessories see pages 7.19 For interchangeability with other toggle clamps, see page 7.42
