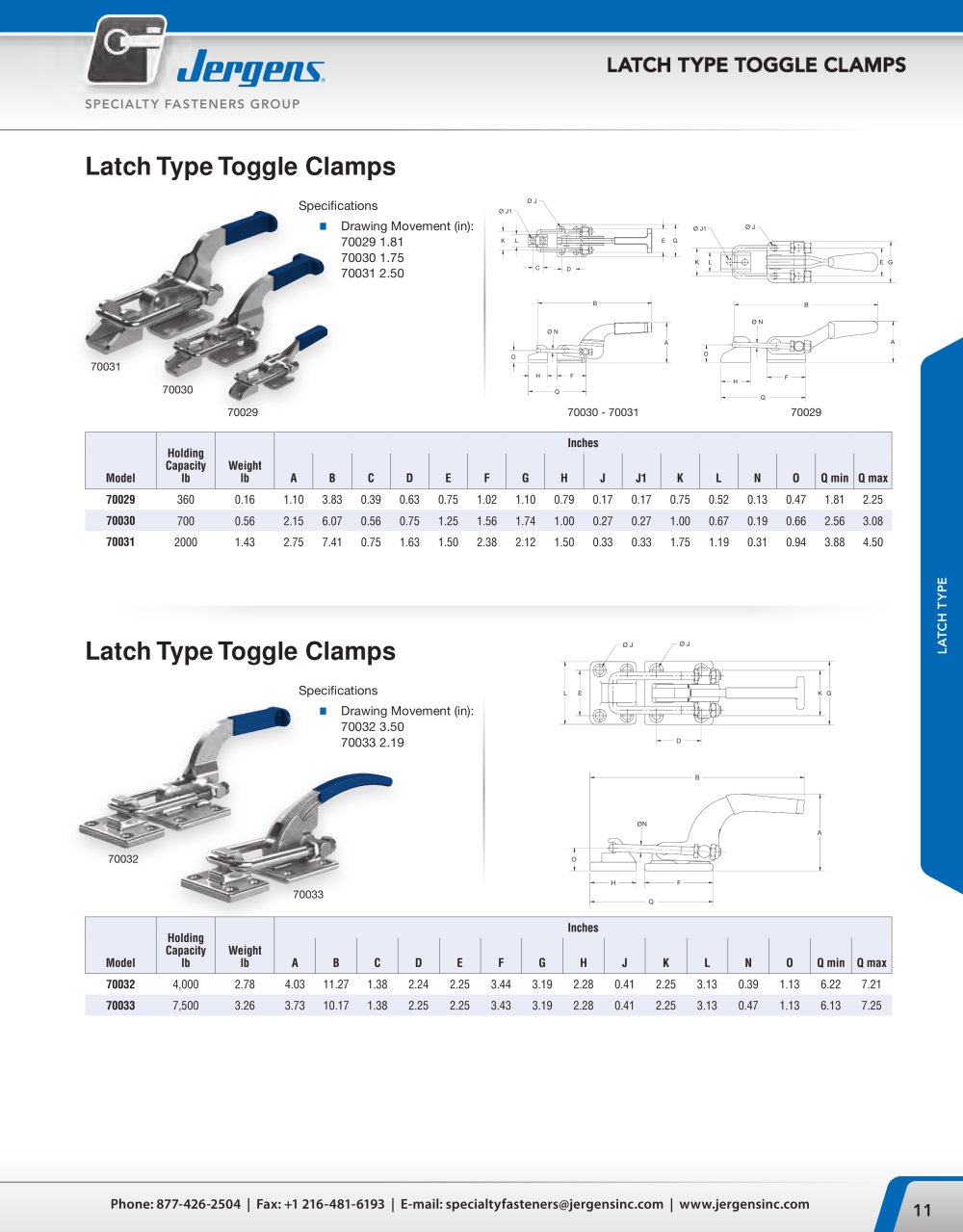

TOGGLE CLAMPS 7 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 7.11 70120 This clamp can be flush mounted using the hex locknut or it can be mounted directly into tapped hole. Either mounting allows 360° clamp rotation. The clamp locks in forward or reverse position. It is furnished with the hex locknut and a blue vinyl handle. 70570 C D TRAVEL B A E F A B D F E C 1 1/2" 1/2" NARROW BASE 13/64" DIA. HOLES FOR NO. 10 SCREWS The adjustable hook is ideal for latching, locking or fastening doors, fixtures, pressure vessels, covers, and hatches on storage tanks. The hook bar has a 4" pull and is threaded for convenient adjustment. This clamp is furnished with a blue vinyl handle. Note: 70580 is a narrow base 1/2" wide 9/32" DIA 2 HOLES FOR 1/4" SCREWS Note: Longer Hook Lengths Available Upon Request Flush Mount Pull Action Holding Part Drawing Capacity Wt. Number A B C D E F Movement (lbs) (oz.) 70570 1 7/16 3/4 8 5/16 3/4 1 3/8 5/16 4 375 10 70580 1 7/16 3/4 8 5/16 1 1/2 — 5/16 4 375 10 71039 2 5/8 1 13/16 13 1/4 1 1/8 2 3/8 1/2 6 1/8 990 16 Holding Part Travel Capacity Wt. Plunger Number A B C D E F Thread (lbs) (oz.) Tapped 70118 2 7/8 3/4 2 7/16 3/8 15/16 1/4 5/8-18 200 3.5 1/4-20 x 19/32 70120 4 1 1/2 4 3/4 7/16 1 1/4 3/4-16 x 5/8 300 9 5/16-18 x 1 70140 5 1/4 2 5/8 6 11/16 5/8 1 1/2 1/4 1-14 x 7/8 700 27 3/8-16 x 1 1/4 For accessories see pages 7.19 For interchangeability with other toggle clamps, see page 7.42
