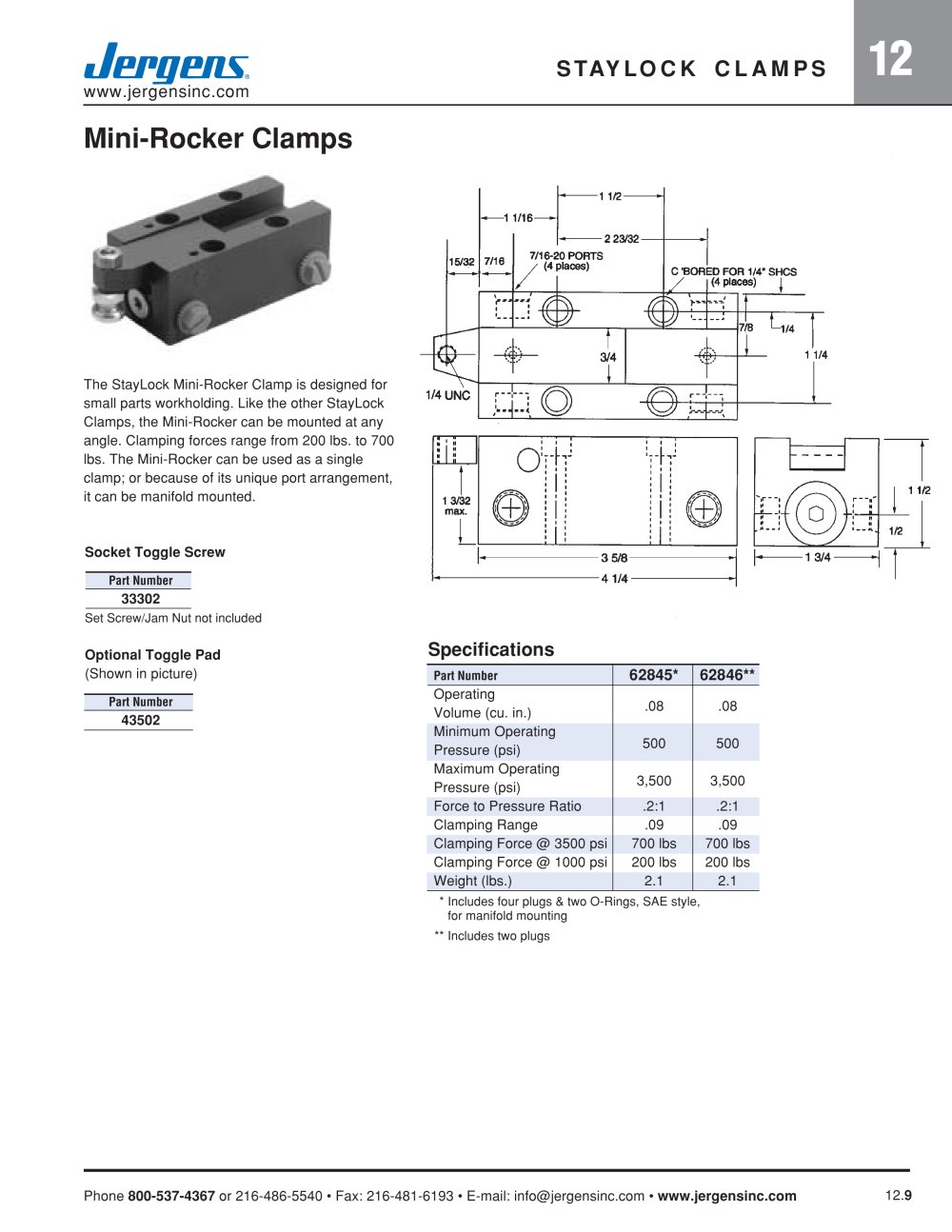

Staylock Clamps - 7113 12 Mini-Rocker Clamps

The StayLock Mini-Rocker Clamp is designed forsmall parts workholding. Like the other StayLockClamps, the Mini-Rocker can be mounted at any angle. Clamping forces range from 200 lbs. to 700lbs. The Mini-Rocker can be used as a singleclamp; or because of its unique port arrangement, it can be manifold mounted. Socket Toggle Screw
Part Number 33302
Set Screw/Jam Nut not included Optional Toggle Pad

Specifications

(Shown in picture)
Part Number

62845*62846**

Part Number OperatingVolume (cu. in.).08.08Minimum OperatingPressure (psi)500500Maximum OperatingPressure (psi)3,5003,500Force to Pressure Ratio.2:1.2:1Clamping Range.09.09 Clamping Force @ 3500 psi700 lbs700 lbsClamping Force @ 1000 psi200 lbs200 lbsWeight (lbs.)2.12.1 43502
*Includes four plugs & two O-Rings, SAE style,for manifold mounting**Includes two plugs Phone 800-537-4367 or 216-486-5540 • Fax: 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 12. 9
