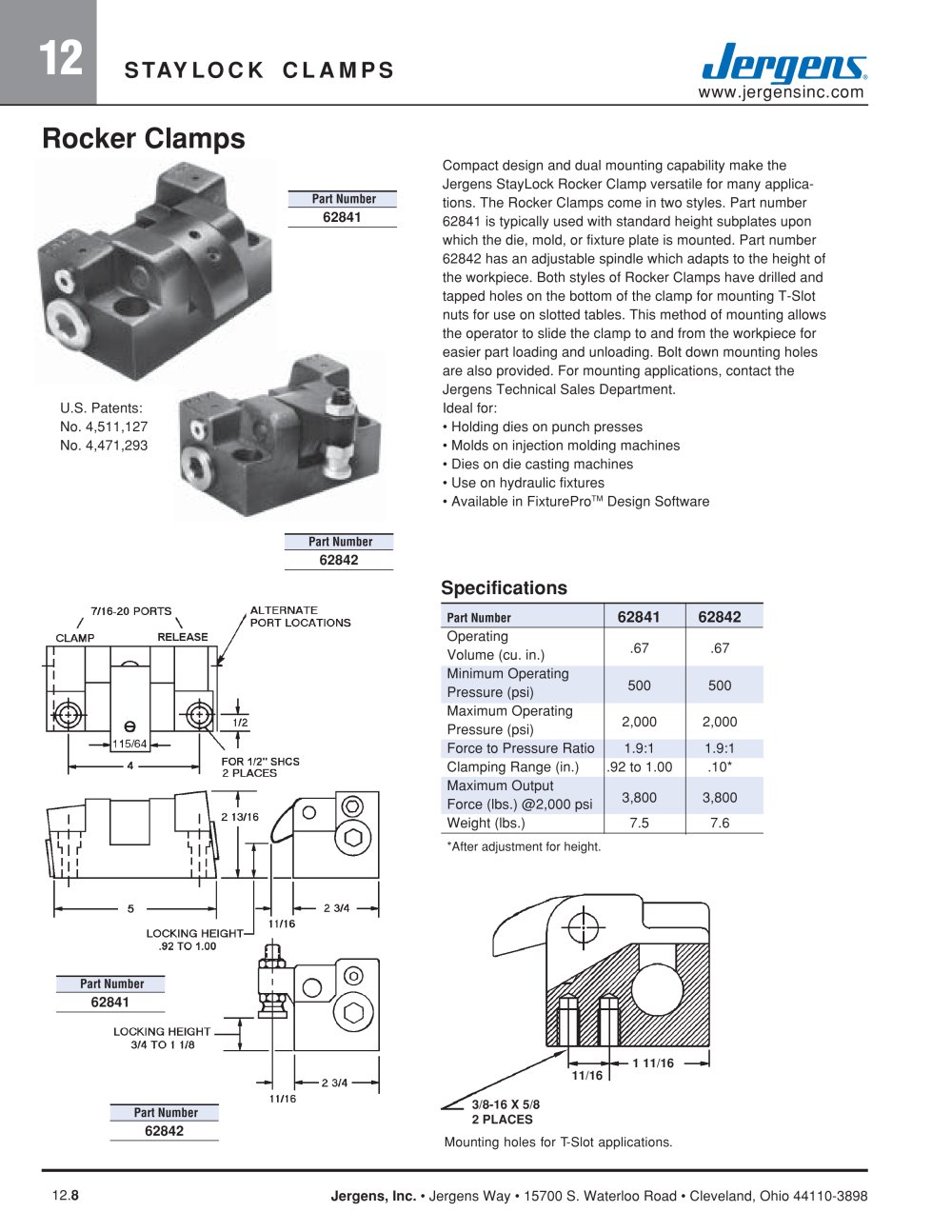

STAYLOCK CLAMPS

www.jergensinc.com

Rocker Clamps

Compact design and dual mounting capability make theJergens StayLock Rocker Clamp versatile for many applica- tions. The Rocker Clamps come in two styles. Part number62841 is typically used with standard height subplates upon which the die, mold, or fixture plate is mounted. Part number62842 has an adjustable spindle which adapts to the height ofthe workpiece. Both styles of Rocker Clamps have drilled and tapped holes on the bottom of the clamp for mounting T-Slot nuts for use on slotted tables. This method of mounting allowsthe operator to slide the clamp to and from the workpiece foreasier part loading and unloading. Bolt down mounting holes are also provided. For mounting applications, contact theJergens Technical Sales Department.Ideal for: • Holding dies on punch presses• Molds on injection molding machines • Dies on die casting machines• Use on hydraulic fixtures • Available in FixturePro
Part Number 62841 U.S. Patents:No. 4,511,127 No. 4,471,293
TM Design Software
Part Number 62842

Specifications

Part Number

6284162842

OperatingVolume (cu. in.).67.67Minimum OperatingPressure (psi)500500Maximum OperatingPressure (psi)2,0002,000Force to Pressure Ratio1.9:11.9:1Clamping Range (in.).92 to 1.00.10*Maximum Output Force (lbs.) @2,000 psi3,8003,800Weight (lbs.)7.57.6
*After adjustment for height. Part Number 62841
1 11/16 11/163/8-16 X 5/82 PLACES Part Number 62842
Mounting holes for T-Slot applications. 12. 8 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898
