STAYLOCK CLAMPS

www.jergensinc.com

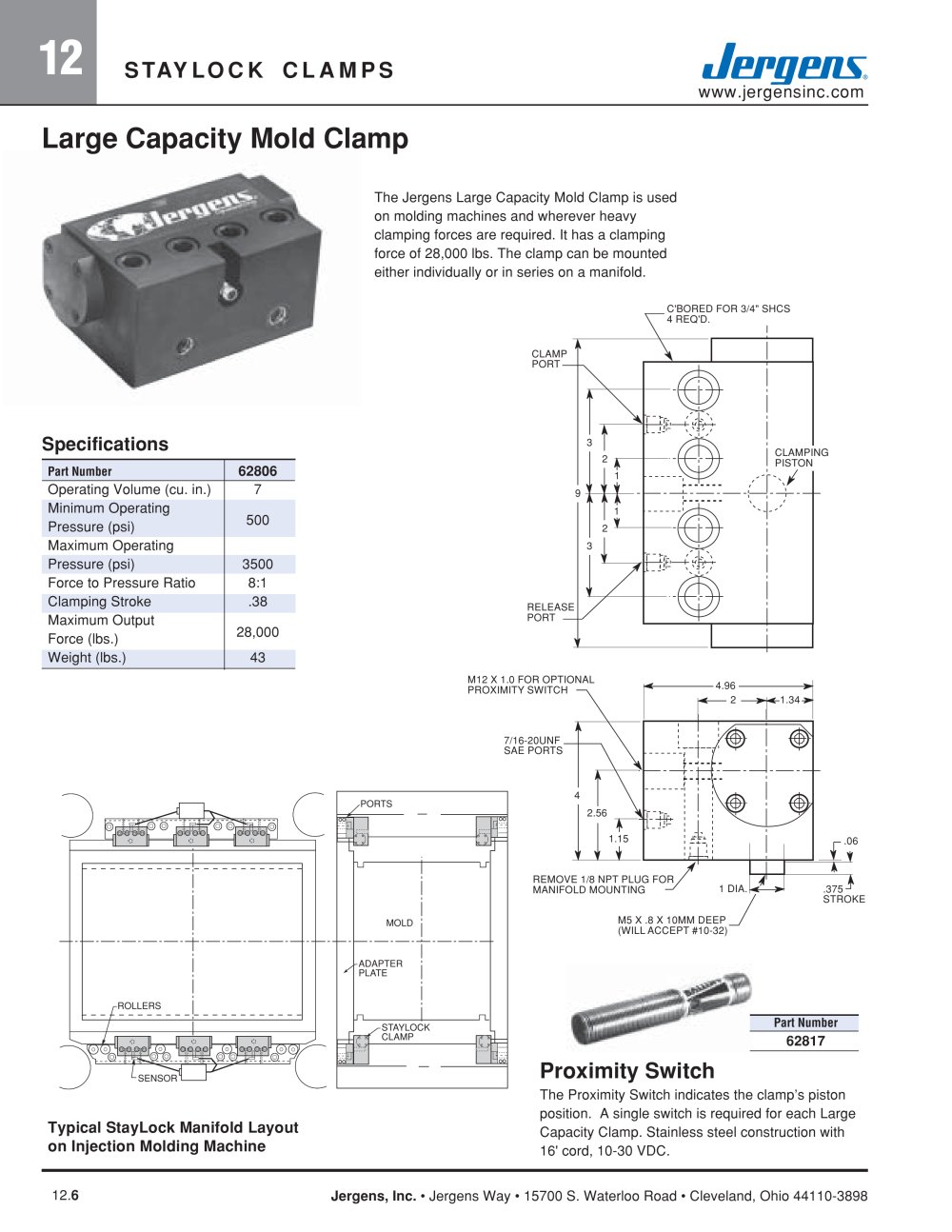

Large Capacity Mold Clamp

The Jergens Large Capacity Mold Clamp is usedon molding machines and wherever heavyclamping forces are required. It has a clampingforce of 28,000 lbs. The clamp can be mounted either individually or in series on a manifold.

C'BORED FOR 3/4" SHCS4 REQ'D. CLAMP PORT

Specifications

3 2 CLAMPING PISTON

Part Number

62806

1

Operating Volume (cu. in.)7Minimum Operating Pressure (psi)500Maximum OperatingPressure (psi)3500Force to Pressure Ratio8:1 Clamping Stroke.38Maximum OutputForce (lbs.)28,000Weight (lbs.)43

9 1 2 3 RELEASE PORT 4.96 2 1.34 4
PORTS 2.56 1.15 1 DIA..06.375STROKE
MOLD M5 X .8 X 10MM DEEP (WILL ACCEPT #10-32)REMOVE 1/8 NPT PLUG FOR MANIFOLD MOUNTING M12 X 1.0 FOR OPTIONAL PROXIMITY SWITCH7/16-20UNFSAE PORTS
ADAPTER PLATE ROLLERSSENSOR STAYLOCKCLAMP

Part Number

62817

Proximity Switch

The Proximity Switch indicates the clamp’s pistonposition. A single switch is required for each LargeCapacity Clamp. Stainless steel construction with16' cord, 10-30 VDC. Typical StayLock Manifold Layouton Injection Molding Machine 12. 6 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898
