STAYLOCK CLAMPS

www.jergensinc.com

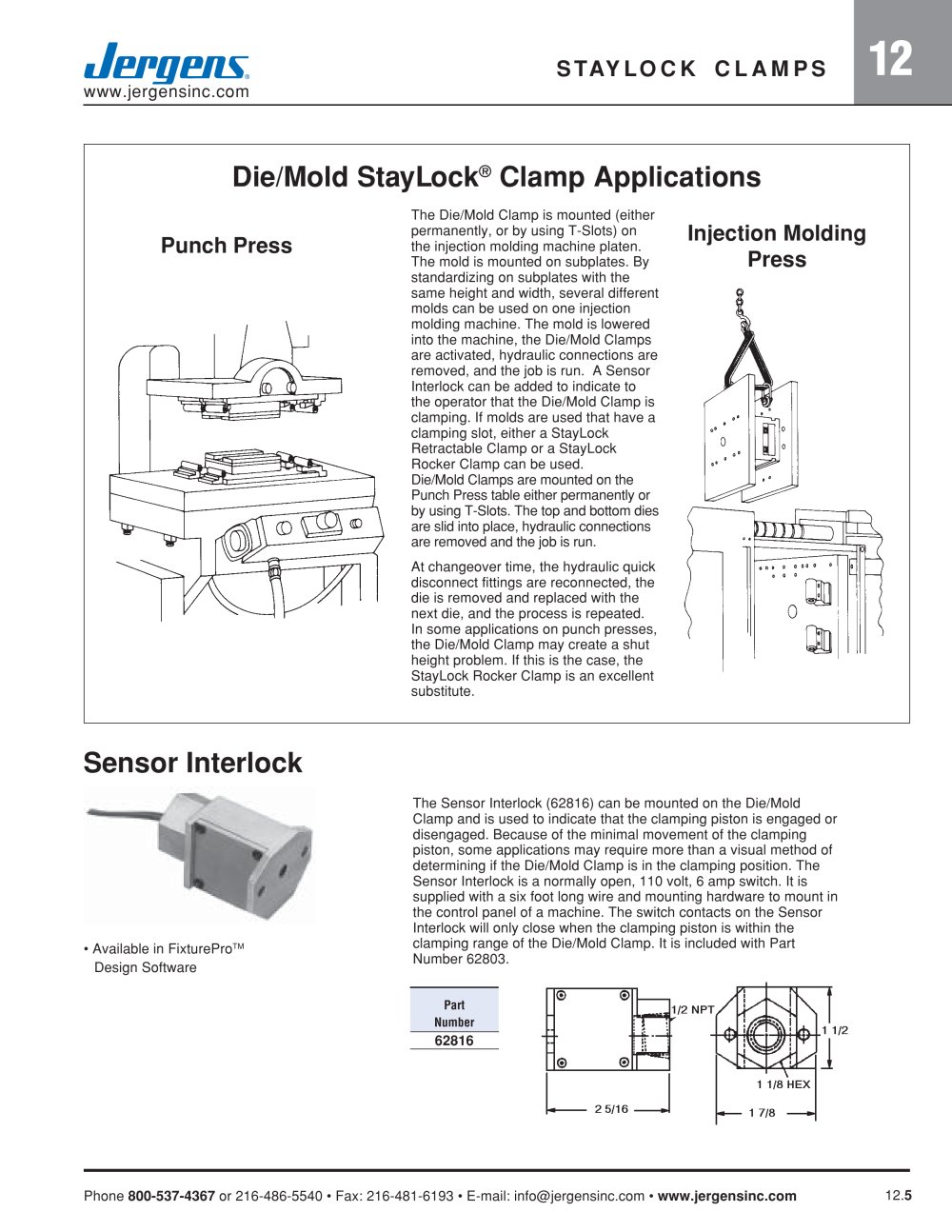

Staylock Clamps - 7113 12

Die/Mold StayLock

®

Clamp Applications

The Die/Mold Clamp is mounted (eitherpermanently, or by using T-Slots) on the injection molding machine platen.The mold is mounted on subplates. Bystandardizing on subplates with the same height and width, several differentmolds can be used on one injectionmolding machine. The mold is lowered into the machine, the Die/Mold Clampsare activated, hydraulic connections areremoved, and the job is run. A Sensor Interlock can be added to indicate tothe operator that the Die/Mold Clamp isclamping. If molds are used that have a clamping slot, either a StayLockRetractable Clamp or a StayLockRocker Clamp can be used. Die/Mold Clamps are mounted on thePunch Press table either permanently orby using T-Slots. The top and bottom dies are slid into place, hydraulic connectionsare removed and the job is run.At changeover time, the hydraulic quickdisconnect fittings are reconnected, thedie is removed and replaced with thenext die, and the process is repeated. In some applications on punch presses,the Die/Mold Clamp may create a shutheight problem. If this is the case, the StayLock Rocker Clamp is an excellentsubstitute.

Injection MoldingPressPunch Press

Sensor Interlock

The Sensor Interlock (62816) can be mounted on the Die/MoldClamp and is used to indicate that the clamping piston is engaged or disengaged. Because of the minimal movement of the clampingpiston, some applications may require more than a visual method ofdetermining if the Die/Mold Clamp is in the clamping position. The Sensor Interlock is a normally open, 110 volt, 6 amp switch. It issupplied with a six foot long wire and mounting hardware to mount inthe control panel of a machine. The switch contacts on the Sensor Interlock will only close when the clamping piston is within theclamping range of the Die/Mold Clamp. It is included with PartNumber 62803. • Available in FixturePro
TM Design Software
PartNumber 62816 Phone 800-537-4367 or 216-486-5540 • Fax: 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 12. 5
