Staylock Clamps - 7113 12

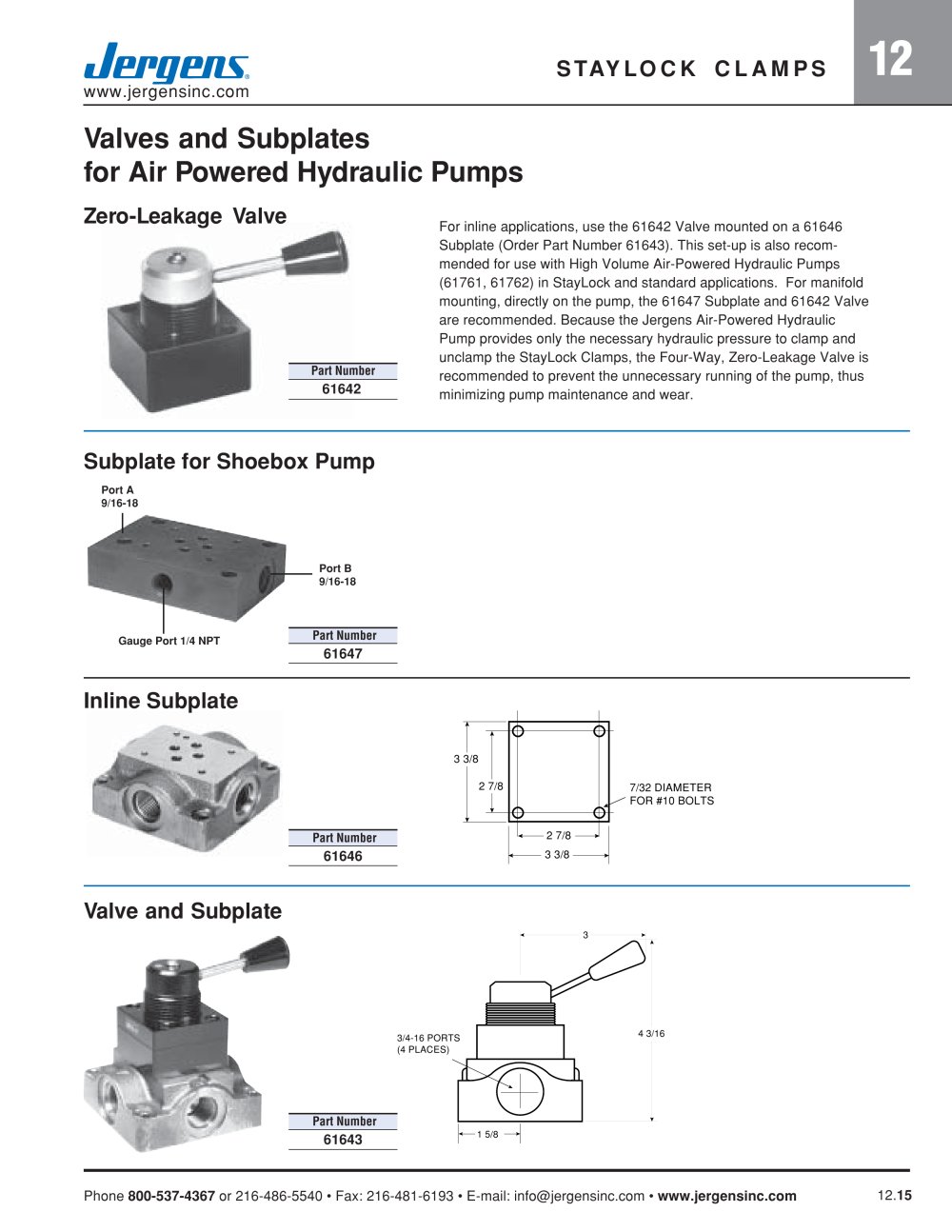

Valves and Subplatesfor Air Powered Hydraulic Pumps

Zero-Leakage Valve Valve and Subplate

For inline applications, use the 61642 Valve mounted on a 61646Subplate (Order Part Number 61643). This set-up is also recom-mended for use with High Volume Air-Powered Hydraulic Pumps(61761, 61762) in StayLock and standard applications. For manifold mounting, directly on the pump, the 61647 Subplate and 61642 Valveare recommended. Because the Jergens Air-Powered HydraulicPump provides only the necessary hydraulic pressure to clamp and unclamp the StayLock Clamps, the Four-Way, Zero-Leakage Valve is recommended to prevent the unnecessary running of the pump, thusminimizing pump maintenance and wear.
Part Number 61642

Subplate for Shoebox Pump

Port A9/16-18 Port B 9/16-18Gauge Port 1/4 NPT Part Number 61647

Inline Subplate

Part Number 2 7/87/32 DIAMETERFOR #10 BOLTS2 7/83 3/83 3/8 61646
3 4 3/16 Part Number 61643
1 5/83/4-16 PORTS(4 PLACES) Phone 800-537-4367 or 216-486-5540 • Fax: 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 12. 15
