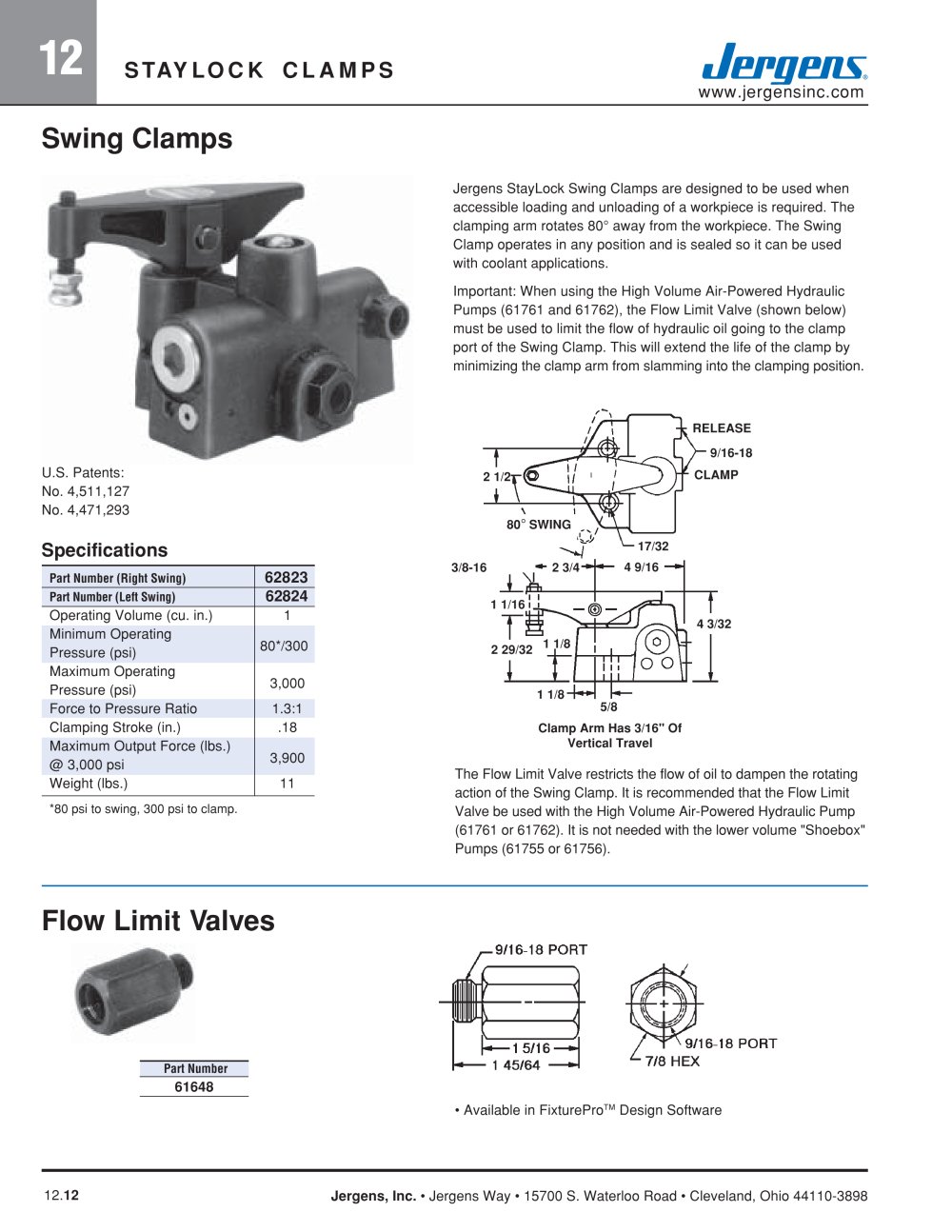

STAYLOCK CLAMPS

www.jergensinc.com

Swing Clamps

Jergens StayLock Swing Clamps are designed to be used whenaccessible loading and unloading of a workpiece is required. The clamping arm rotates 80 ° away from the workpiece. The SwingClamp operates in any position and is sealed so it can be used with coolant applications.Important: When using the High Volume Air-Powered HydraulicPumps (61761 and 61762), the Flow Limit Valve (shown below)must be used to limit the flow of hydraulic oil going to the clamp port of the Swing Clamp. This will extend the life of the clamp by minimizing the clamp arm from slamming into the clamping position.

RELEASE 9/16-18

U.S. Patents: No. 4,511,127No. 4,471,293

2 1/2 CLAMP 80

°

SWING

Specifications

17/32

62823

3/8-16 2 3/4 4 9/16 Part Number (Right Swing) Part Number (Left Swing)

62824

1 1/16

Operating Volume (cu. in.)1Minimum Operating Pressure (psi)80*/300Maximum OperatingPressure (psi)3,000Force to Pressure Ratio1.3:1Clamping Stroke (in.).18Maximum Output Force (lbs.) @ 3,000 psi3,900Weight (lbs.)11

4 3/32 2 29/32 1 1/8 1 1/8 5/8 Clamp Arm Has 3/16" OfVertical Travel

The Flow Limit Valve restricts the flow of oil to dampen the rotatingaction of the Swing Clamp. It is recommended that the Flow Limit Valve be used with the High Volume Air-Powered Hydraulic Pump(61761 or 61762). It is not needed with the lower volume "Shoebox"Pumps (61755 or 61756).

*80 psi to swing, 300 psi to clamp.

Flow Limit Valves

Part Number

61648 • Available in FixturePro

TM

Design Software 12. 12 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898
