Jergens.

www.jergensinc.com

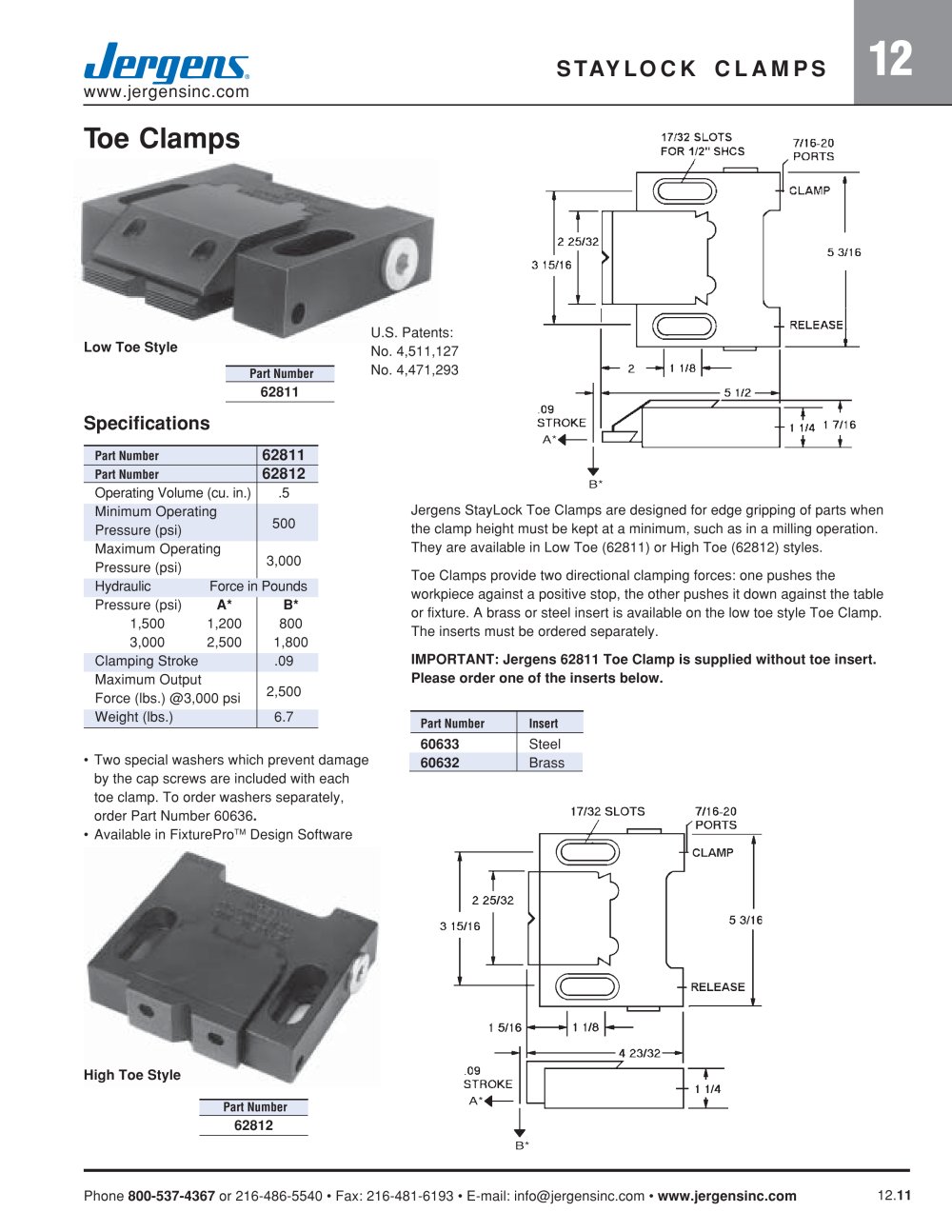

STAYLOCK CLAMPS

Toe Clamps

U.S. Patents: No. 4,511,127 No. 4,471,293

Low Toe Style

Part Number 62811


	I ----
	Part Number	62811
	Part Number	62812
	Operating Volume (cu. in.) Minimum Operating Pressure (psi)	.5 500
	Maximum Operating Pressure (psi) Hydraulic Force in Pressure (psi) A*	3,000 Pounds B*
	1,500 1,200	800
	3,000 2,500 Clamping Stroke Maximum Output Force (lbs.) @3,000 psi	1,800 .09 2,500
	Weight (lbs.)	6.7

Jergens StayLock Toe Clamps are designed for edge gripping of parts when the clamp height must be kept at a minimum, such as in a milling operation. They are available in Low Toe (62811) or High Toe (62812) styles.

Toe Clamps provide two directional clamping forces: one pushes the workpiece against a positive stop, the other pushes it down against the table or fixture. A brass or steel insert is available on the low toe style Toe Clamp. The inserts must be ordered separately.

IMPORTANT: Jergens 62811 Toe Clamp is supplied without toe insert. Please order one of the inserts below.


	Part Number	Insert
	60633 60632	Steel Brass

Two special washers which prevent damage by the cap screws are included with each toe clamp. To order washers separately, order Part Number 60636. Available in FixturePro™ Design Software

High Toe Style

Part Number 62812

Phone 800-537-4367 or 216-486-5540 • Fax: 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com

12.11
