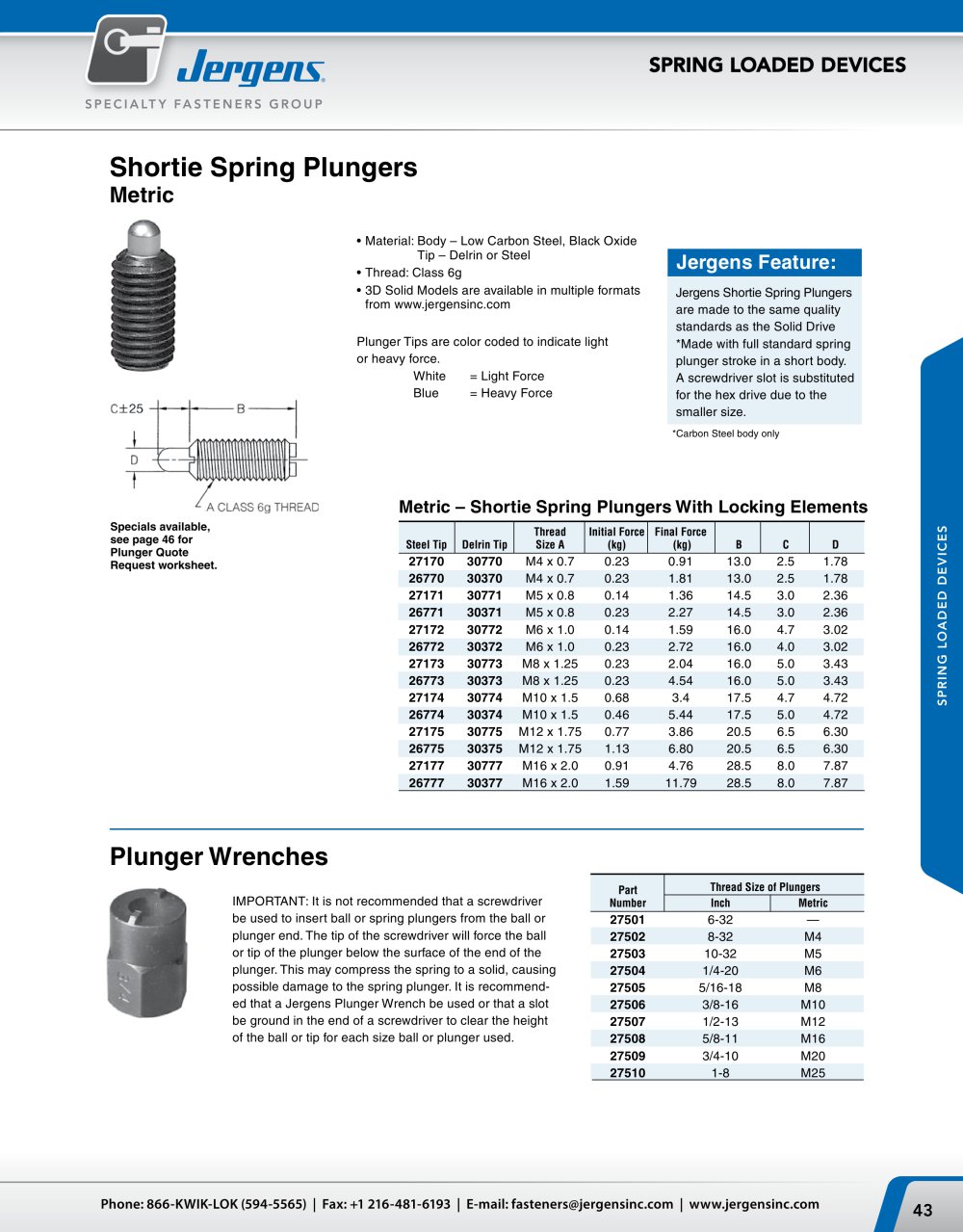

SPRING LOADED DEVICES 5 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 5.9 Shortie Spring Plungers Metric IMPORTANT: It is not recommended that a screwdriver be used to insert ball or spring plungers from the ball or plunger end. The tip of the screwdriver will force the ball or tip of the plunger below the surface of the end of the plunger. This may compress the spring to a solid, causing possible damage to the spring plunger. It is recommended that a Jergens Plunger Wrench be used or that a slot be ground in the end of a screwdriver to clear the height of the ball or tip for each size ball or plunger used. Plunger Wrenches Specials available, see page 5.12 for Plunger Quote Request worksheet. Jergens Feature: Jergens Shortie Spring Plungers are made to the same quality standards as the Solid Drive® *Made with full standard spring plunger stroke in a short body. A screwdriver slot is substituted for the hex drive due to the smaller size. *Carbon Steel body only Part Thread Size of Plungers Number Inch Metric 27501 6-32 – 27502 8-32 M4 27503 10-32 M5 27504 1/4-20 M6 27505 5/16-18 M8 27506 3/8-16 M10 27507 1/2-13 M12 27508 5/8-11 M16 27509 3/4-10 M20 27510 1-8 M25 Thread Initial Force Final Force Steel Tip Delrin Tip Size A (kg) (kg) B C D 27170 30770 M4 x 0.7 0.23 0.91 13.0 2.5 1.78 26770 30370 M4 x 0.7 0.23 1.81 13.0 2.5 1.78 27171 30771 M5 x 0.8 0.14 1.36 14.5 3.0 2.36 26771 30371 M5 x 0.8 0.23 2.27 14.5 3.0 2.36 27172 30772 M6 x 1.0 0.14 1.59 16.0 4.0 3.02 26772 30372 M6 x 1.0 0.23 2.72 16.0 4.0 3.02 27173 30773 M8 x 1.25 0.23 2.04 16.0 5.0 3.43 26773 30373 M8 x 1.25 0.23 4.54 16.0 5.0 3.43 27174 30774 M10 x 1.5 0.68 3.4 17.5 5.5 4.72 26774 30374 M10 x 1.5 0.46 5.44 17.5 5.5 4.72 27175 30775 M12 x 1.75 0.77 3.86 20.5 6.5 6.30 26775 30375 M12 x 1.75 1.13 6.80 20.5 6.5 6.30 27177 30777 M16 x 2.0 0.91 4.76 28.5 8.0 7.87 26777 30377 M16 x 2.0 1.59 11.79 28.5 8.0 7.87 Metric - Shortie Spring Plungers With Locking Elements • Material: Body – Low Carbon Steel, Black Oxide or 303-Stainless Steel Tip – Delrin or Steel • Thread: Class 6g • Available in FixtureProTM Design Software Plunger Tips are color coded to indicate light or heavy force. White = Light Force Blue = Heavy Force
