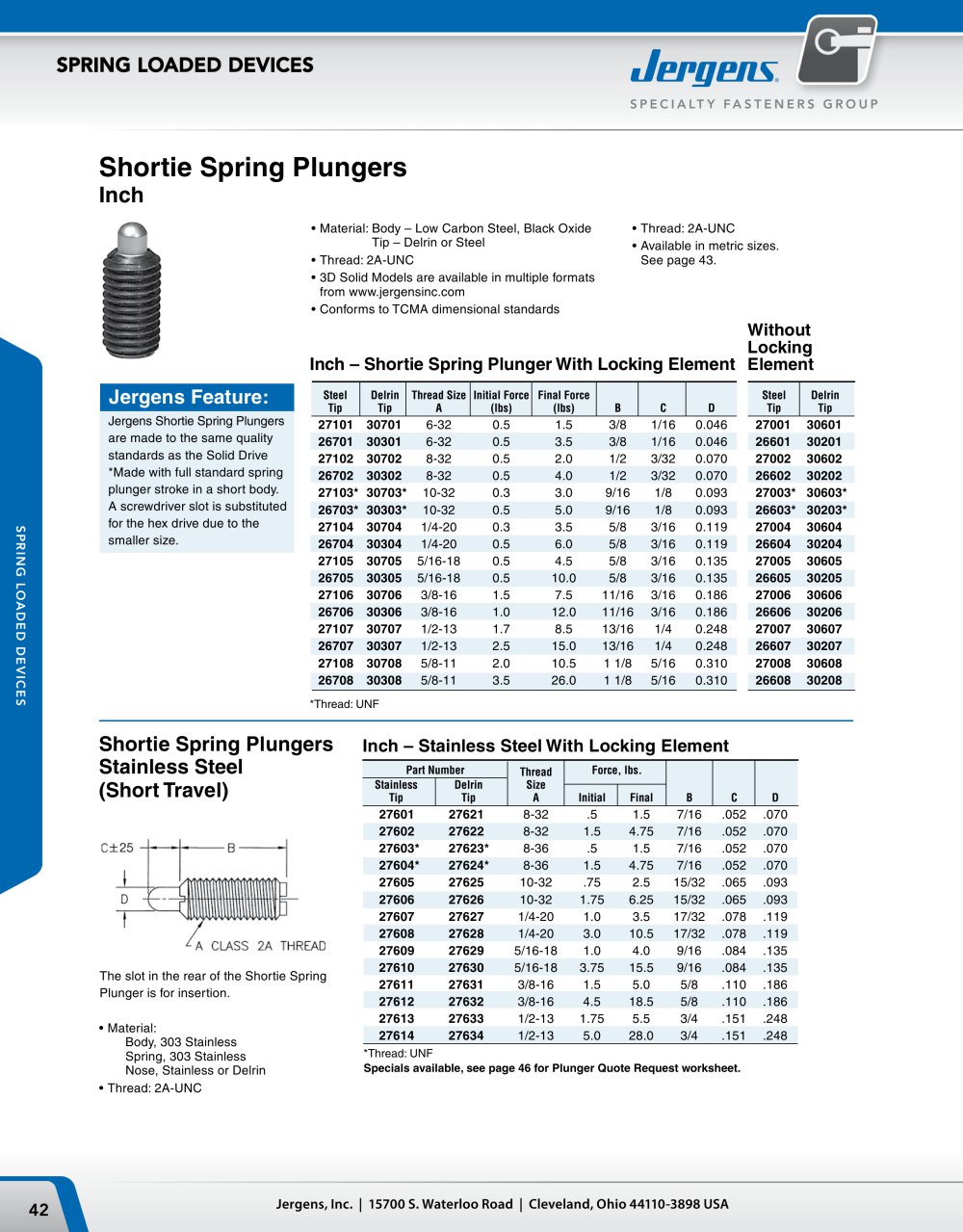

5 SPRING LOADED DEVICES www.jergensinc.com 5.8 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Shortie Spring Plungers Inch The slot in the rear of the Shortie Spring Plunger is for insertion. Shortie Spring Plungers Stainless Steel (Short Travel) • Thread: 2A-UNC • Available in metric sizes. See page 5.9. • Available in FixtureProTM Design Software • Material: Body, 303 Stainless Spring, 303 Stainless Nose, Stainless or Delrin • Thread: 2A-UNC Jergens Feature: Jergens Shortie Spring Plungers are made to the same quality standards as the Solid Drive® *Made with full standard spring plunger stroke in a short body. A screwdriver slot is substituted for the hex drive due to the smaller size. Inch - Shortie Spring Plunger With Locking Element Without Locking Element Steel Delrin Thread Size Initial Force Final Force Steel Delrin Tip Tip A (lbs) (lbs) B C D Tip Tip 27101 30701 6-32 0.5 1.5 3/8 1/16 0.046 27001 30601 26701 30301 6-32 0.5 3.5 3/8 1/16 0.046 26601 30201 27102 30702 8-32 0.5 2.0 1/2 3/32 0.070 27002 30602 26702 30302 8-32 0.5 4.0 1/2 3/32 0.070 26602 30202 27103* 30703* 10-32 0.3 3.0 9/16 1/8 0.093 27003* 30603* 26703* 30303* 10-32 0.5 5.0 9/16 1/8 0.093 26603* 30203* 27104 30704 1/4-20 0.3 3.5 5/8 3/16 0.119 27004 30604 26704 30304 1/4-20 0.5 6.0 5/8 3/16 0.119 26604 30204 27105 30705 5/16-18 0.5 4.5 5/8 3/16 0.135 27005 30605 26705 30305 5/16-18 0.5 10.0 5/8 3/16 0.135 26605 30205 27106 30706 3/8-16 1.5 7.5 11/16 3/16 0.186 27006 30606 26706 30306 3/8-16 1.0 12.0 11/16 3/16 0.186 26606 30206 27107 30707 1/2-13 1.7 8.5 13/16 1/4 0.248 27007 30607 26707 30307 1/2-13 2.5 15.0 13/16 1/4 0.248 26607 30207 27108 30708 5/8-11 2.0 10.5 1 1/8 5/16 0.310 27008 30608 26708 30308 5/8-11 3.5 26.0 1 1/8 5/16 0.310 26608 30208 *Thread: UNF Specials available, see page 5.12 for Plunger Quote Request worksheet. I nch - Stainless Steel With Locking Element Part Number Thread Force, lbs. Stainless Delrin Size Tip Tip A Initial Final B C D 27601 27621 8-32 .5 1.5 7/16 .052 .070 27602 27622 8-32 1.5 4.75 7/16 .052 .070 27603* 27623* 8-36 .5 1.5 7/16 .052 .070 27604* 27624* 8-36 1.5 4.75 7/16 .052 .070 27605 27625 10-32 .75 2.5 15/32 .065 .093 27606 27626 10-32 1.75 6.25 15/32 .065 .093 27607 27627 1/4-20 1.0 3.5 17/32 .078 .119 27608 27628 1/4-20 3.0 10.5 17/32 .078 .119 27609 27629 5/16-18 1.0 4.0 9/16 .084 .135 27610 27630 5/16-18 3.75 15.5 9/16 .084 .135 27611 27631 3/8-16 1.5 5.0 5/8 .110 .186 27612 27632 3/8-16 4.5 18.5 5/8 .110 .186 27613 27633 1/2-13 1.75 5.5 3/4 .151 .248 27614 27634 1/2-13 5.0 28.0 3/4 .151 .248 *Thread: UNF • Material: Body – Low Carbon Steel, Black Oxide Tip – Delrin or Steel • Thread: 2A-UNC • Available in FixtureProTM Design Software • Conforms to TCMA dimensional standards
