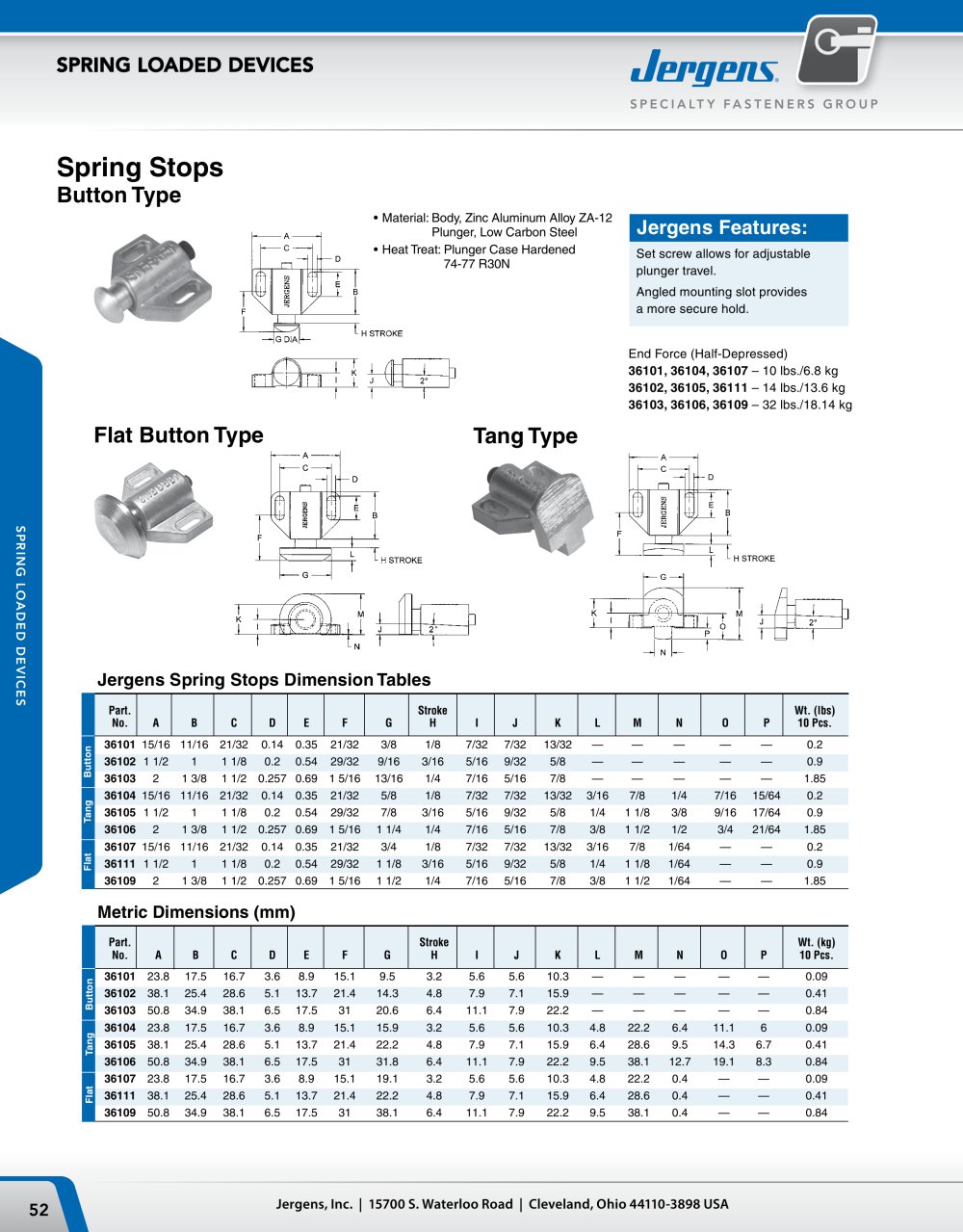

5 SPRING LOADED DEVICES www.jergensinc.com 5.18 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Spring Stops Button Type Flat Button Type Tang Type Jergens Features: Set screw allows for adjustable plunger travel. Angled mounting slot provides a more secure hold. End Force (Half-Depressed) 36101, 36104, 36107 – 10 lbs./6.8 kg 36102, 36105, 36111 – 14 lbs./13.6 kg 36103, 36106, 36109 – 32 lbs./18.14 kg • Material: Body, Zinc Aluminum Alloy ZA-12 Plunger, Low Carbon Steel • Heat Treat: Plunger Case Hardened 74-77 R30N Flat Tang Button Flat Tang Button Jergens Spring Stops Dimension Tables Part. Stroke Wt. (lbs) No. A B C D E F G H I J K L M N O P 10 Pcs. 36101 15/16 11/16 21/32 0.14 0.35 21/32 3/8 1/8 7/32 7/32 13/32 – – – – – 0.2 36102 1 1/2 1 1 1/8 0.2 0.54 29/32 9/16 3/16 5/16 9/32 5/8 – – – – – 0.9 36103 2 1 3/8 1 1/2 0.257 0.69 1 5/16 13/16 1/4 7/16 5/16 7/8 – – – – – 1.85 36104 15/16 11/16 21/32 0.14 0.35 21/32 5/8 1/8 7/32 7/32 13/32 3/16 7/8 1/4 7/16 15/64 0.2 36105 1 1/2 1 1 1/8 0.2 0.54 29/32 7/8 3/16 5/16 9/32 5/8 1/4 1 1/8 3/8 9/16 17/64 0.9 36106 2 1 3/8 1 1/2 0.257 0.69 1 5/16 1 1/4 1/4 7/16 5/16 7/8 3/8 1 1/2 1/2 3/4 21/64 1.85 36107 15/16 11/16 21/32 0.14 0.35 21/32 3/4 1/8 7/32 7/32 13/32 3/16 7/8 1/64 – – 0.2 36111 1 1/2 1 1 1/8 0.2 0.54 29/32 1 1/8 3/16 5/16 9/32 5/8 1/4 1 1/8 1/64 – – 0.9 36109 2 1 3/8 1 1/2 0.257 0.69 1 5/16 1 1/2 1/4 7/16 5/16 7/8 3/8 1 1/2 1/64 – – 1.85 Metric Dimensions (mm) Part. Stroke Wt. (kg) No. A B C D E F G H I J K L M N O P 10 Pcs. 36101 23.8 17.5 16.7 3.6 8.9 15.1 9.5 3.2 5.6 5.6 10.3 – – – – – 0.09 36102 38.1 25.4 28.6 5.1 13.7 21.4 14.3 4.8 7.9 7.1 15.9 – – – – – 0.41 36103 50.8 34.9 38.1 6.5 17.5 31 20.6 6.4 11.1 7.9 22.2 – – – – – 0.84 36104 23.8 17.5 16.7 3.6 8.9 15.1 15.9 3.2 5.6 5.6 10.3 4.8 22.2 6.4 11.1 6 0.09 36105 38.1 25.4 28.6 5.1 13.7 21.4 22.2 4.8 7.9 7.1 15.9 6.4 28.6 9.5 14.3 6.7 0.41 36106 50.8 34.9 38.1 6.5 17.5 31 31.8 6.4 11.1 7.9 22.2 9.5 38.1 12.7 19.1 8.3 0.84 36107 23.8 17.5 16.7 3.6 8.9 15.1 19.1 3.2 5.6 5.6 10.3 4.8 22.2 0.4 – – 0.09 36111 38.1 25.4 28.6 5.1 13.7 21.4 22.2 4.8 7.9 7.1 15.9 6.4 28.6 0.4 – – 0.41 36109 50.8 34.9 38.1 6.5 17.5 31 38.1 6.4 11.1 7.9 22.2 9.5 38.1 0.4 – – 0.84
