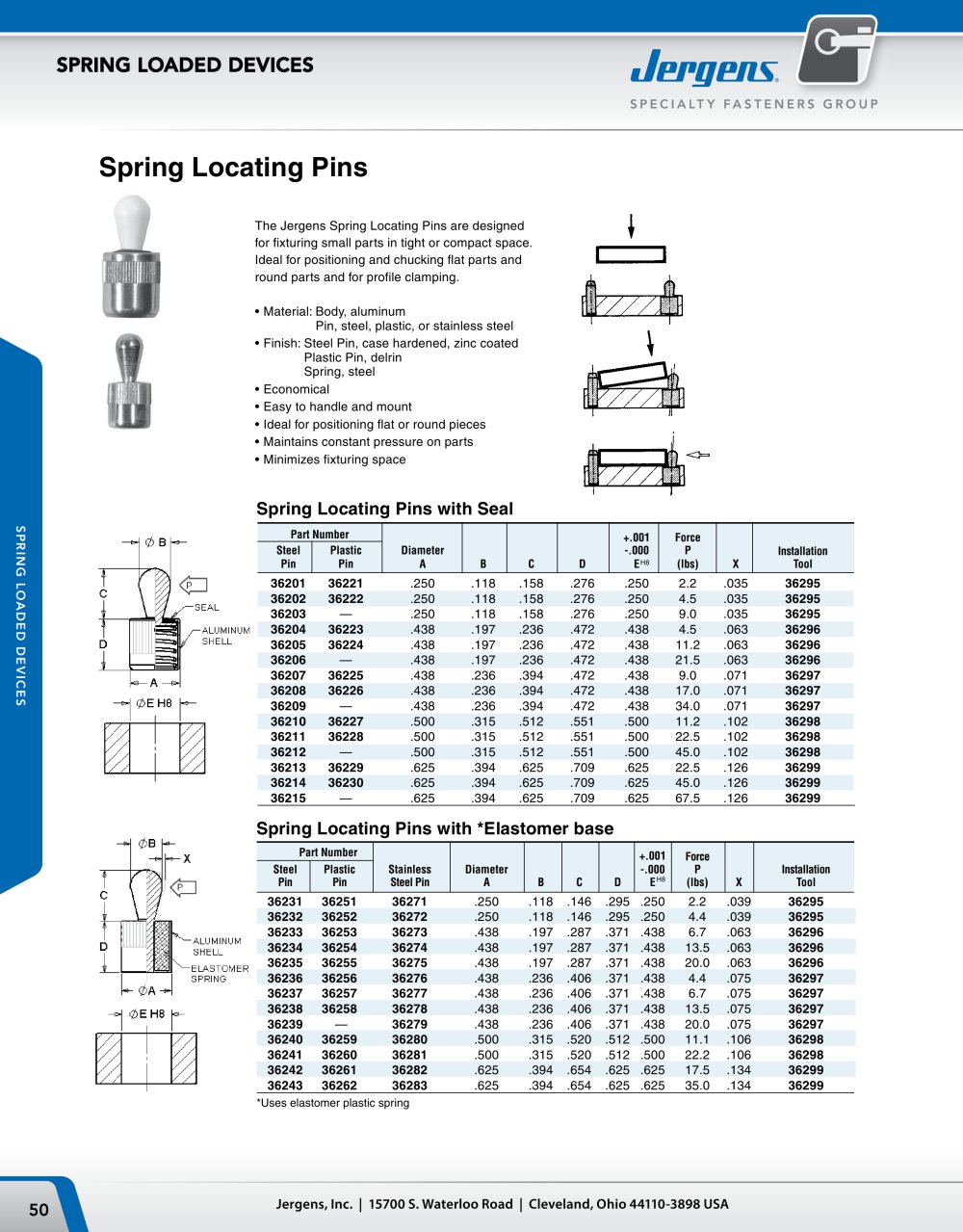

5 SPRING LOADED DEVICES www.jergensinc.com 5.16 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Spring Locating Pins The Jergens Spring Locating Pins are designed for fixturing small parts in tight or compact space. Ideal for positioning and chucking flat parts and round parts and for profile clamping. • Material: Body, aluminum Pin, steel, plastic, or stainless steel • Finish: Steel Pin, case hardened, zinc coated Plastic Pin, delrin Spring, steel • Economical • Easy to handle and mount • Ideal for positioning flat or round pieces • Maintains constant pressure on parts • Minimizes fixturing space Spring Locating Pins with Seal Part Number +.001 Force Steel Plastic Diameter -.000 P Installation Pin Pin A B C D E (lbs) X Tool 36201 36221 .250 .118 .158 .276 .250 2.2 .035 36295 36202 36222 .250 .118 .158 .276 .250 4.5 .035 36295 36203 – .250 .118 .158 .276 .250 9.0 .035 36295 36204 36223 .438 .197 .236 .472 .438 4.5 .063 36296 36205 36224 .438 .197 .236 .472 .438 11.2 .063 36296 36206 – .438 .197 .236 .472 .438 21.5 .063 36296 36207 36225 .438 .236 .394 .472 .438 9.0 .071 36297 36208 36226 .438 .236 .394 .472 .438 17.0 .071 36297 36209 – .438 .236 .394 .472 .438 34.0 .071 36297 36210 36227 .500 .315 .512 .551 .500 11.2 .102 36298 36211 36228 .500 .315 .512 .551 .500 22.5 .102 36298 36212 – .500 .315 .512 .551 .500 45.0 .102 36298 36213 36229 .625 .394 .625 .709 .625 22.5 .126 36299 36214 36230 .625 .394 .625 .709 .625 45.0 .126 36299 36215 – .625 .394 .625 .709 .625 67.5 .126 36299 Spring Locating Pins with *Elastomer base Part Number +.001 Force Steel Plastic Stainless Diameter -.000 P Installation Pin Pin Steel Pin A B C D E (lbs) X Tool 36231 36251 36271 .250 .118 .146 .295 .250 2.2 .039 36295 36232 36252 36272 .250 .118 .146 .295 .250 4.4 .039 36295 36233 36253 36273 .438 .197 .287 .354 .438 6.7 .063 36296 36234 36254 36274 .438 .197 .287 .354 .438 13.5 .063 36296 36235 36255 36275 .438 .197 .287 .354 .438 20.0 .063 36296 36236 36256 36276 .438 .236 .406 .354 .438 4.4 .075 36297 36237 36257 36277 .438 .236 .406 .354 .438 6.7 .075 36297 36238 36258 36278 .438 .236 .406 .354 .438 13.5 .075 36297 36239 — 36279 .438 .236 .406 .354 .438 20.0 .075 36297 36240 36259 36280 .500 .315 .520 .512 .500 11.1 .106 36298 36241 36260 36281 .500 .315 .520 .512 .500 22.2 .106 36298 36242 36261 36282 .625 .394 .654 .625 .625 17.5 .134 36299 36243 36262 36283 .625 .394 .654 .625 .625 35.0 .134 36299 *Uses elastomer plastic spring
