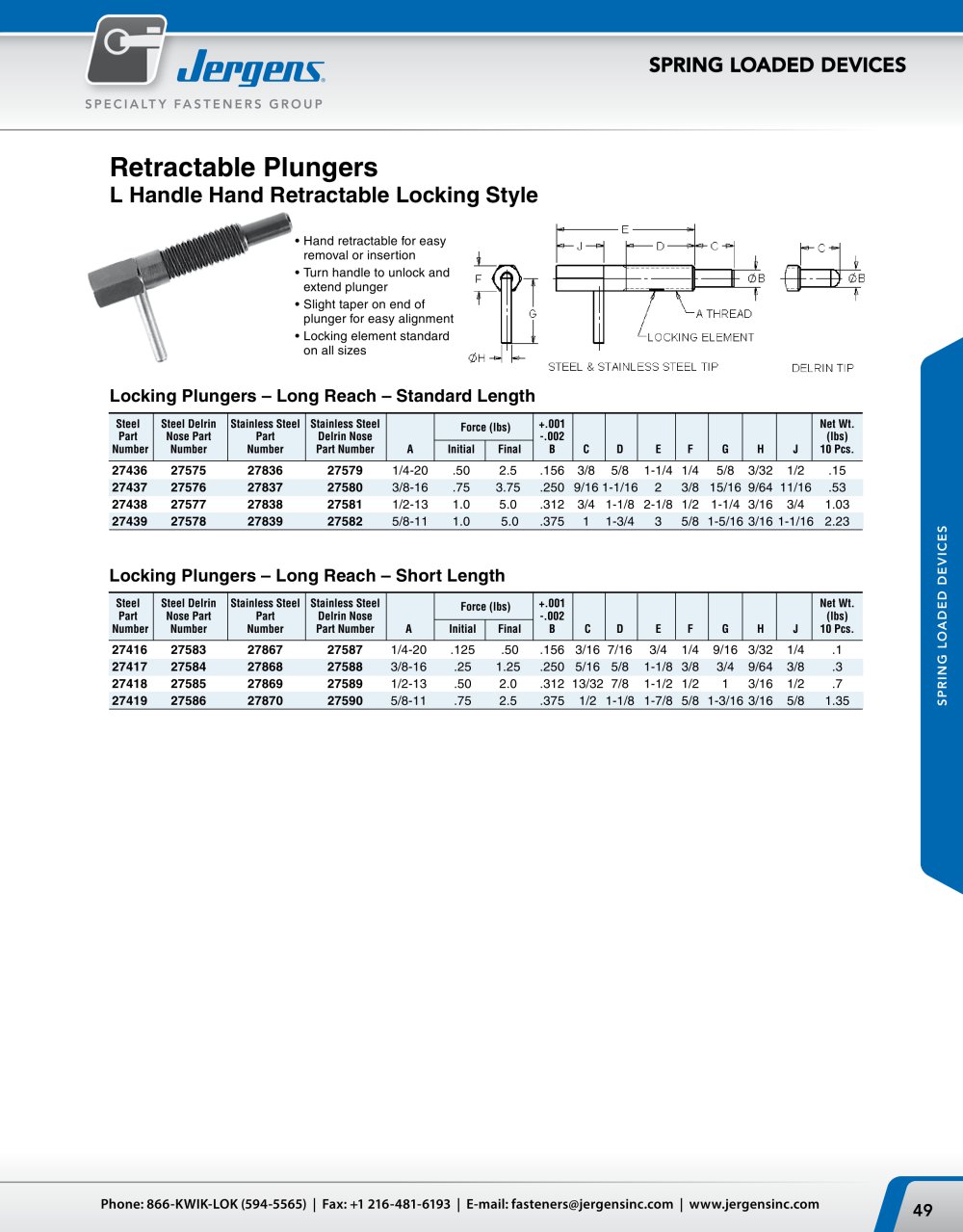

SPRING LOADED DEVICES 5 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 5.15 Retractable Plungers L Handle Hand Retractable Locking Style • Hand retractable for easy removal or insertion • Turn handle to unlock and extend plunger • Slight taper on end of plunger for easy alignment • Locking element standard on all sizes Locking Plungers - Long Reach - Standard Length Locking Plungers - Long Reach - Short Length Steel Steel Phenolic Stainless Steel Stainless Steel +.001 Net Wt. Part Nose Part Part Phenolic Nose Force (lbs) -.002 (lbs) Number Number Number Part Number A Initial Final B C D E F G H J 10 Pcs. 27436 27851 27836 27855 1/4-20 .50 2.5 .156 3/8 5/8 1-1/4 1/4 5/8 3/32 1/2 .15 27437 27852 27837 27856 3/8-16 .75 3.75 .250 9/16 1-1/16 2 3/8 15/16 9/64 11/16 .53 27438 27853 27838 27857 1/2-13 1.0 5.0 .312 3/4 1-1/8 2-1/8 1/2 1-1/4 3/16 3/4 1.03 27439 27854 27839 27858 5/8-11 1.0 5.0 .375 1 1-3/4 3 5/8 1-5/16 3/16 1-1/16 2.23 Steel Steel Phenolic Stainless Steel Stainless Steel +.001 Net Wt. Part Nose Part Part Phenolic Nose Force (lbs) -.002 (lbs) Number Number Number Part Number A Initial Final B C D E F G H J 10 Pcs. 27416 27859 27867 27863 1/4-20 .125 .50 .156 3/16 7/16 3/4 1/4 9/16 3/32 1/4 .1 27417 27860 27868 27864 3/8-16 .25 1.25 .250 5/16 5/8 1-1/8 3/8 3/4 9/64 3/8 .3 27418 27861 27869 27865 1/2-13 .50 2.0 .312 13/32 7/8 1-1/2 1/2 1 3/16 1/2 .7 27419 27862 27870 27866 5/8-11 .75 2.5 .375 1/2 1-1/8 1-7/8 5/8 1-3/16 3/16 5/8 1.35
