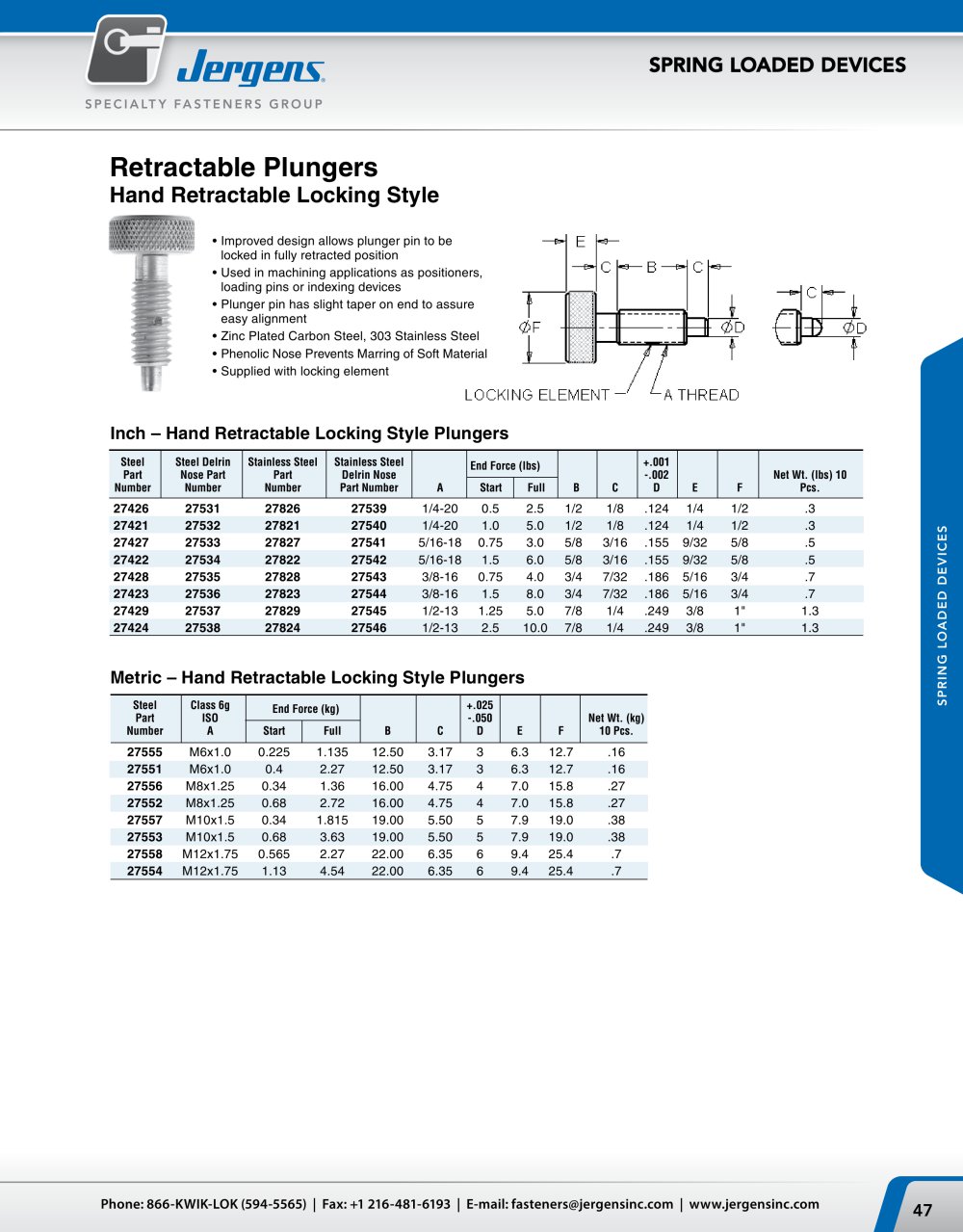

SPRING LOADED DEVICES 5 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 5.13 Retractable Plungers Hand Retractable Locking Style • Improved design allows plunger pin to be locked in fully retracted position • Used in machining applications as positioners, loading pins or indexing devices • Plunger pin has slight taper on end to assure easy alignment • Zinc Plated Carbon Steel, 303 Stainless Steel • Phenolic Nose Prevents Marring of Soft Material • Supplied with locking element Inch - Hand Retractable Locking Style Plungers Metric - Hand Retractable Locking Style Plungers Steel Steel Phenolic Stainless Steel Stainless Steel +.001 Part Nose Part Part Phenolic Nose End Force (lbs) -.002 Net Wt. (lbs) 10 Number Number Number Part Number A Start Full B C D E F Pcs. 27426 27523 27826 27527 1/4-20 0.5 2.5 1/2 1/8 .124 1/4 1/2 .3 27421 27515 27821 27519 1/4-20 1.0 5.0 1/2 1/8 .124 1/4 1/2 .3 27427 27524 27827 27528 5/16-18 0.75 3.0 5/8 3/16 .155 9/32 5/8 .5 27422 27516 27822 27520 5/16-18 1.5 6.0 5/8 3/16 .155 9/32 5/8 .5 27428 27525 27828 27529 3/8-16 0.75 4.0 3/4 7/32 .186 5/16 3/4 .7 27423 27517 27823 27521 3/8-16 1.5 8.0 3/4 7/32 .186 5/16 3/4 .7 27429 27526 27829 27530 1/2-13 1.25 5.0 7/8 1/4 .249 3/8 1" 1.3 27424 27518 27824 27522 1/2-13 2.5 10.0 7/8 1/4 .249 3/8 1" 1.3 Steel Class 6g +.025 Part ISO End Force (kg) -.050 Net Wt. (kg) Number A Start Full B C D E F 10 Pcs. 27555 M6x1.0 0.225 1.135 12.50 3.17 3 6.3 12.7 .16 27551 M6x1.0 0.4 2.27 12.50 3.17 3 6.3 12.7 .16 27556 M8x1.25 0.34 1.36 16.00 4.75 4 7.0 15.8 .27 27552 M8x1.25 0.68 2.72 16.00 4.75 4 7.0 15.8 .27 27557 M10x1.5 0.34 1.815 19.00 5.50 5 7.9 19.0 .38 27553 M10x1.5 0.68 3.63 19.00 5.50 5 7.9 19.0 .38 27558 M12x1.75 0.565 2.27 22.00 6.35 6 9.4 25.4 .7 27554 M12x1.75 1.13 4.54 22.00 6.35 6 9.4 25.4 .7
