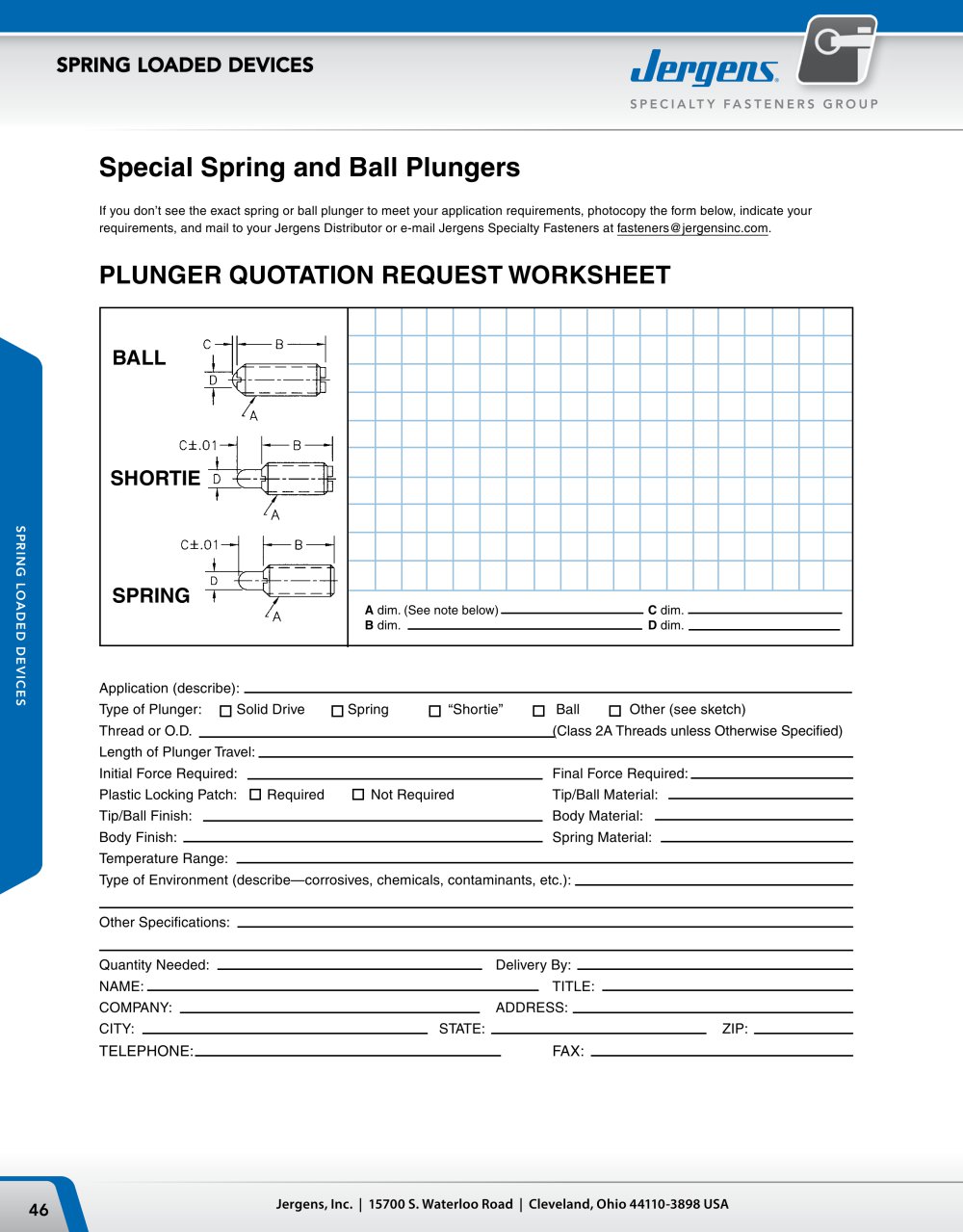

5 SPRING LOADED DEVICES www.jergensinc.com 5.12 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Special Spring and Ball Plungers If you don’t see the exact spring or ball plunger to meet your application requirements, photocopy the form below, indicate your requirements, and mail to your Jergens Distributor. A dim. (See note below) C dim. B dim. D dim. SHORTIE BALL SPRING PLUNGER QUOTATION REQUEST WORKSHEET Application (describe): Type of Plunger: Solid Drive® Spring “Shortie” Ball Other (see sketch) Thread or O.D. (Class 2A Threads unless Otherwise Specified) Length of Plunger Travel: Initial Force Required: Final Force Required: Plastic Locking Patch: Required Not Required Tip/Ball Material: Tip/Ball Finish: Body Material: Body Finish: Spring Material: Temperature Range: Type of Environment (describe—corrosives, chemicals, contaminants, etc.): Other Specifications: Quantity Needed: Delivery By: NAME: TITLE: COMPANY: ADDRESS: CITY: STATE: ZIP: TELEPHONE: FAX:
