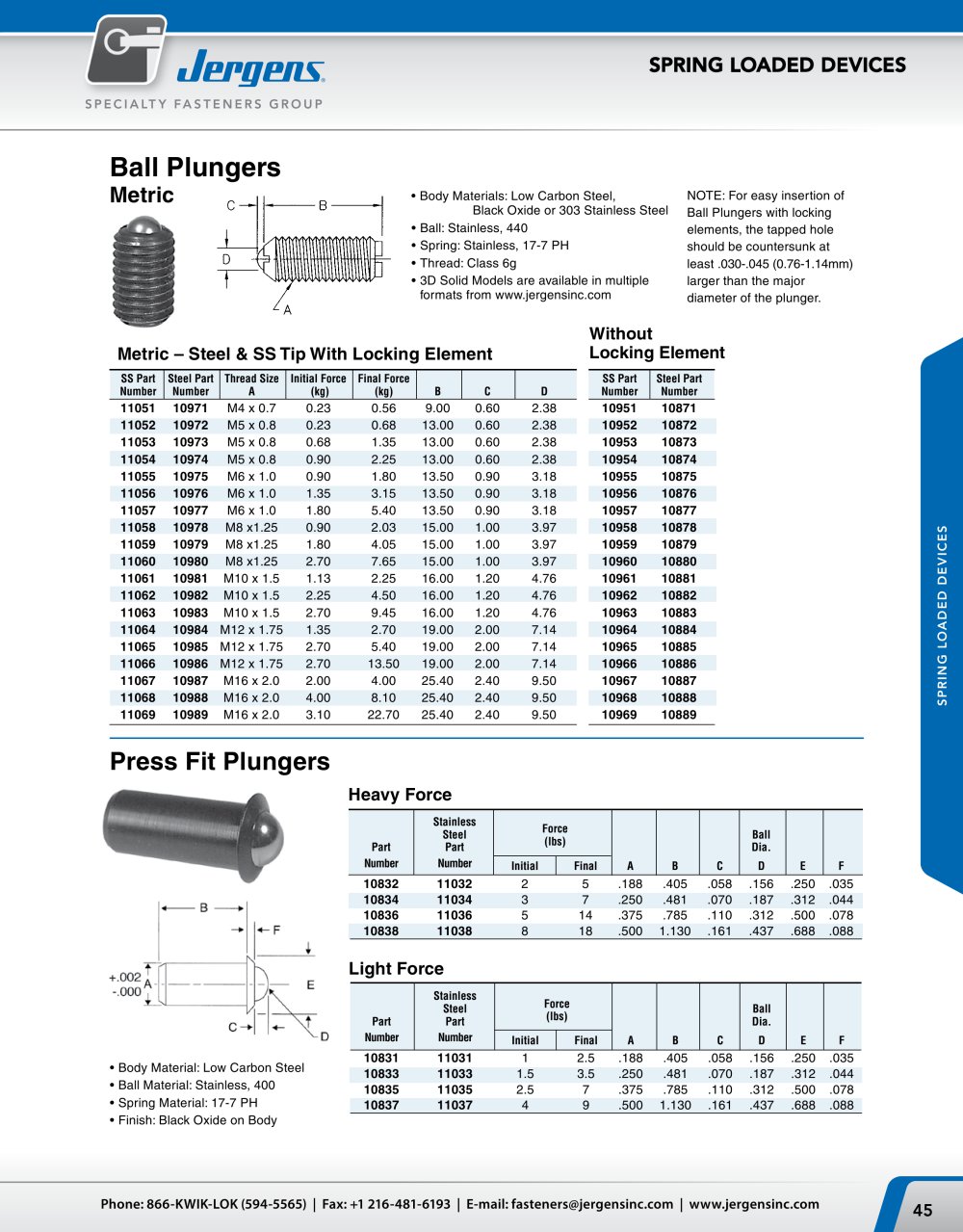

SPRING LOADED DEVICES 5 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 5.11 Stainless Steel Force Ball Part Part (lbs) Dia. Number Number Initial Final A B C D E F 10831 11031 1 2.5 .188 .405 .058 .156 .250 .035 10833 11033 1.5 3.5 .250 .481 .070 .187 .312 .044 10835 11035 2.5 7 .375 .785 .110 .312 .500 .078 10837 11037 4 9 .500 1.130 .161 .437 .688 .088 Ball Plungers Metric Press Fit Plungers Heavy Force Light Force • Body Material: Low Carbon Steel • Ball Material: Stainless, 400 • Spring Material: 17-7 PH • Finish: Black Oxide on Body Stainless Steel Force Ball Part Part (lbs) Dia. Number Number Initial Final A B C D E F 10832 11032 2 5 .188 .405 .058 .156 .250 .035 10834 11034 3 7 .250 .481 .070 .187 .312 .044 10836 11036 5 14 .375 .785 .110 .312 .500 .078 10838 11038 8 18 .500 1.130 .161 .437 .688 .088 Metric - Steel & SS Tip With Locking Element Without Locking Element SS Part Steel Part Thread Size Initial Force Final Force SS Part Steel Part Number Number A (kg) (kg) B C D Number Number 11051 10971 M4 x 0.7 0.23 0.56 9.00 0.60 2.38 10951 10871 11052 10972 M5 x 0.8 0.23 0.68 13.00 0.60 2.38 10952 10872 11053 10973 M5 x 0.8 0.68 1.35 13.00 0.60 2.38 10953 10873 11054 10974 M5 x 0.8 0.90 2.25 13.00 0.60 2.38 10954 10874 11055 10975 M6 x 1.0 0.90 1.80 13.50 0.90 3.18 10955 10875 11056 10976 M6 x 1.0 1.35 3.15 13.50 0.90 3.18 10956 10876 11057 10977 M6 x 1.0 1.80 5.40 13.50 0.90 3.18 10957 10877 11058 10978 M8 x1.25 0.90 2.03 15.00 1.00 3.97 10958 10878 11059 10979 M8 x1.25 1.80 4.05 15.00 1.00 3.97 10959 10879 11060 10980 M8 x1.25 2.70 7.65 15.00 1.00 3.97 10960 10880 11061 10981 M10 x 1.5 1.13 2.25 16.00 1.20 4.76 10961 10881 11062 10982 M10 x 1.5 2.25 4.50 16.00 1.20 4.76 10962 10882 11063 10983 M10 x 1.5 2.70 9.45 16.00 1.20 4.76 10963 10883 11064 10984 M12 x 1.75 1.35 2.70 19.00 2.00 7.14 10964 10884 11065 10985 M12 x 1.75 2.70 5.40 19.00 2.00 7.14 10965 10885 11066 10986 M12 x 1.75 2.70 13.50 19.00 2.00 7.14 10966 10886 11067 10987 M16 x 2.0 2.00 4.00 25.40 2.40 9.50 10967 10887 11068 10988 M16 x 2.0 4.00 8.10 25.40 2.40 9.50 10968 10888 11069 10989 M16 x 2.0 3.10 22.70 25.40 2.40 9.50 10969 10889 • Body Materials: Low Carbon Steel, Black Oxide or 303 Stainless Steel • Ball: Stainless, 440 • Spring: Stainless, 17-7 PH • Thread: Class 6g • Available in FixtureProTM Design Software NOTE: For easy insertion of Ball Plungers with locking elements, the tapped hole should be countersunk at least .030-.045 (0.76-1.14mm) larger than the major diameter of the plunger.
