Swing Clamp

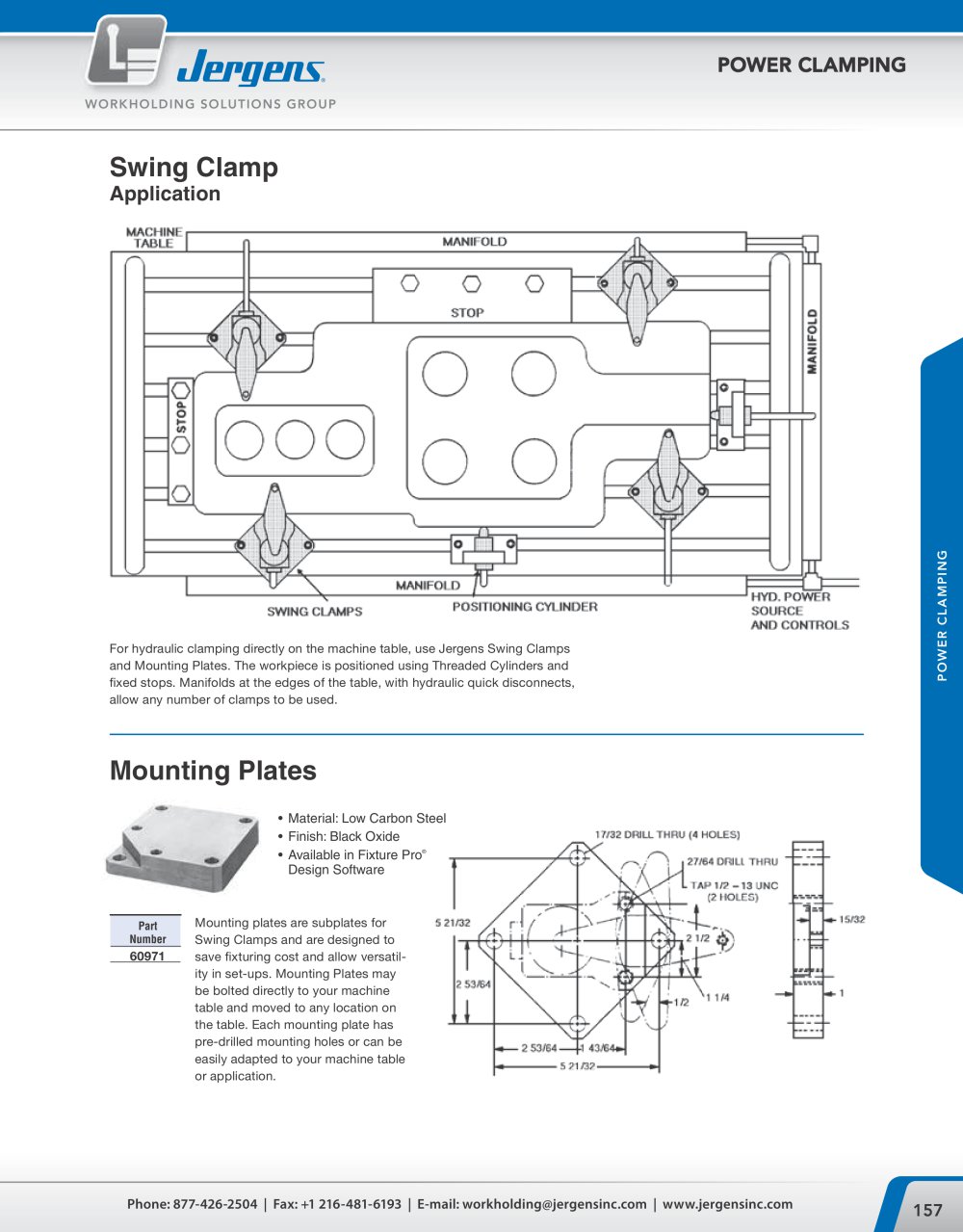

Application
For hydraulic clamping directly on the machine table, use Jergens Swing Clamps
and Mounting Plates. The workpiece is positioned using Threaded Cylinders and
fixed stops. Manifolds at the edges of the table, with hydraulic quick disconnects,
allow any number of clamps to be used.
Mounting plates are subplates for
Swing Clamps and are designed to
save fixturing cost and allow versatility
in set-ups. Mounting Plates may
be bolted directly to your machine
table and moved to any location on
the table. Each mounting plate has
pre-drilled mounting holes or can be
easily adapted to your machine table
or application.
Mounting Plates
Part
Number
60971
• Material: Low Carbon Steel
• Finish: Black Oxide
• Available in FixtureProTM
Design Software
