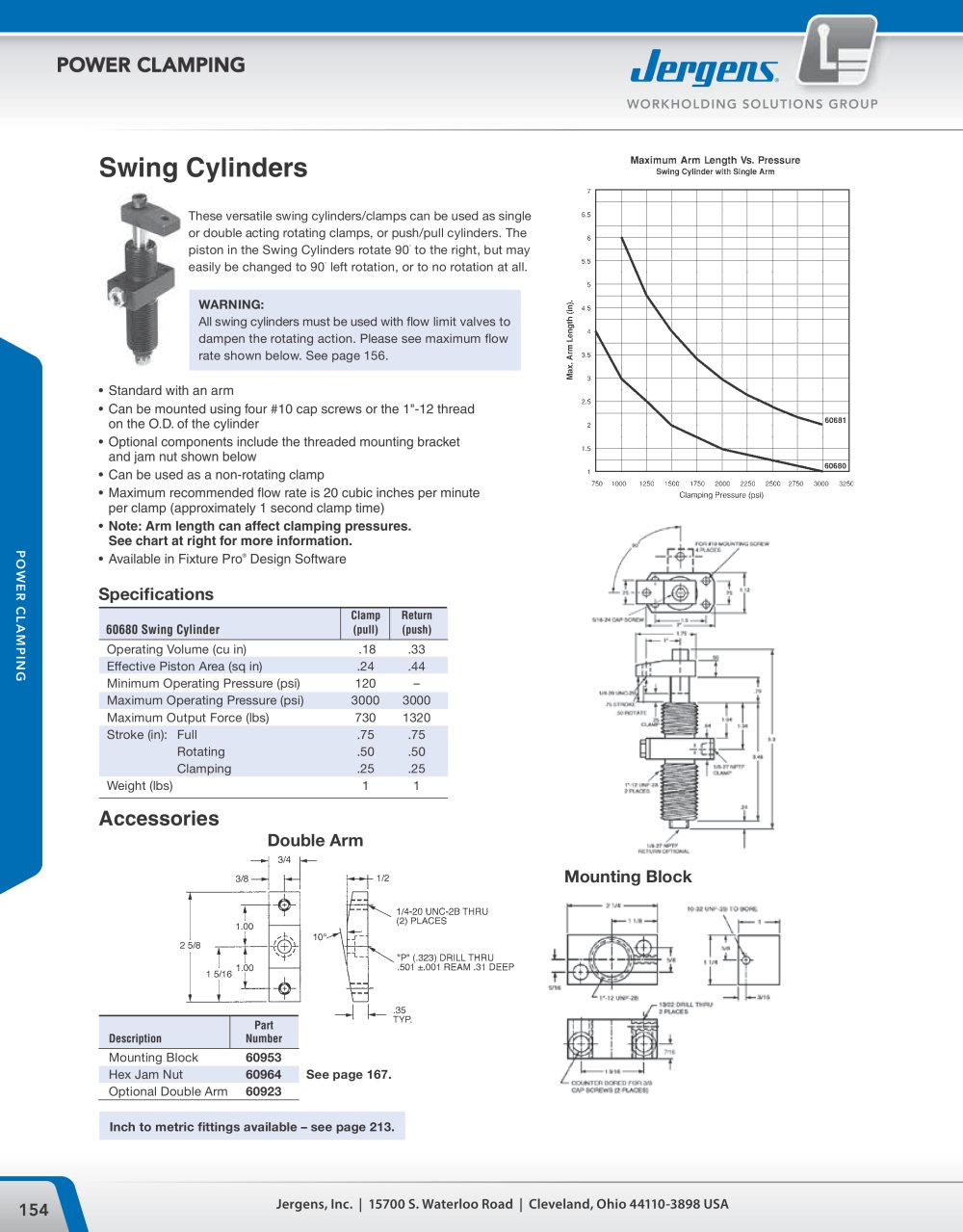

3 POWER CLAMPING www.jergensinc.com 3.6 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Clamp Return (pull) (push) Operating Volume (cu in) .18 .33 Effective Piston Area (sq in) .24 .44 Minimum Operating Pressure (psi) 120 – Maximum Operating Pressure (psi) 3000 3000 Maximum Output Force (lbs) 730 1320 Stroke (in): Full .75 .75 Rotating .50 .50 Clamping .25 .25 Weight (lbs) 1 1 Swing Cylinders 60680 Swing Cylinder Specifications Part Description Number Mounting Block 60953 Hex Jam Nut 60964 See page 3.21 Optional Double Arm 60923 Accessories • Can be mounted using four #10 cap screws or the 1"-12 thread on the O.D. of the cylinder • Optional components include the threaded mounting bracket and jam nut shown below • Can be used as a non-rotating clamp • Maximum recommended flow rate is 20 cubic inches per minute per clamp ( approximately 1 second clamp time) • Note: Arm length can affect clamping pressures. See chart at right for more information. • Available in FixtureProTM Design Software WARNING: All swing cylinders must be used with flow limit valves to dampen the rotating action. Please see maximum flow rate shown below. See page 3.8. These versatile swing cylinders/clamps can be used as single or double acting rotating clamps, or push/pull cylinders. The piston in the Swing Cylinders rotate 90° to the right, but may easily be changed to 90° left rotation, or to no rotation at all. Mounting Block Double Arm
