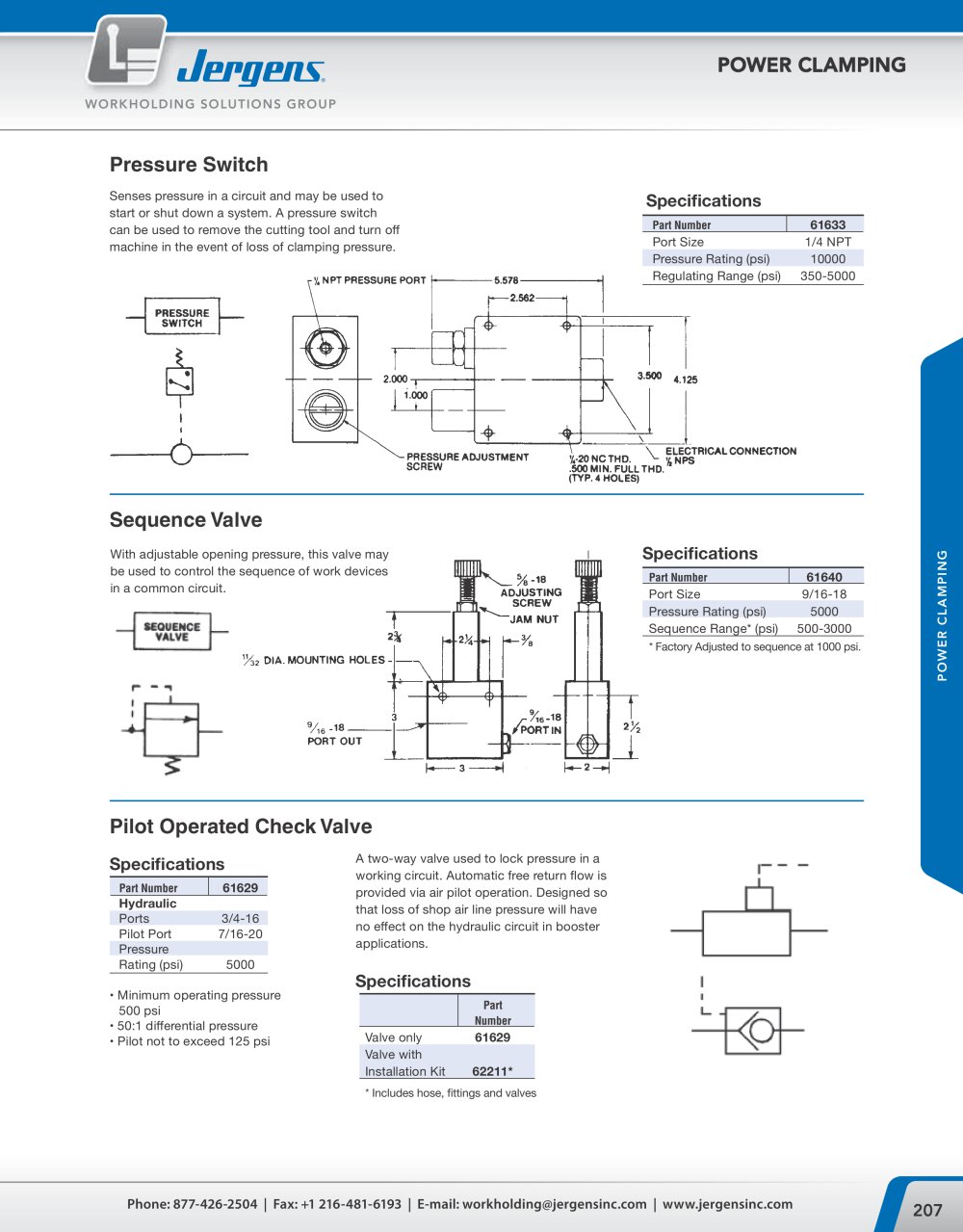

POWER CLAMPING 3 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 3.59 Selection Data Part Number 3000 Psi 6000 Psi 10000 Psi Gauge Only 60704 60703 60706 Block Only 61055 61055 61055 Gauge Kit* 60711 60712 60713 Specifications Part Number 61304 Medium Clean, dry compressed air only Working Range 50 to 100 psi TemperatureRange -300 to 1800F Air Flow (with Modular Valves) 10 CFM at 100 psi Exhaust To atmosphere through holes in plate Mounting 7/32 holes provided in subplate Materials Clear Acrylic, brass Filtration 40 Micron required Lubrication Recommended Air Circuit Controls 2-Hand No Tie Down Requires the operator to use both hands when activating a work circuit. Two counterbored finger buttons are installed at a minimum center distance. Hydraulic Circuit Controls Gauges Recommended as a visual pressurized monitoring gauge to be used on all pressuring systems. When sizing a pressure gauge, the maximum output of the system should equal approximately 2/3 of the gauge capacity. Gauges are filled with glycerine in order to dampen internal movement. Gauge blocks facilitate the installation of pressure gauges on standard boosters. * Gauge, Block and Fittings included in kits. All Gauges 1/4" NPT, bottom ported.
