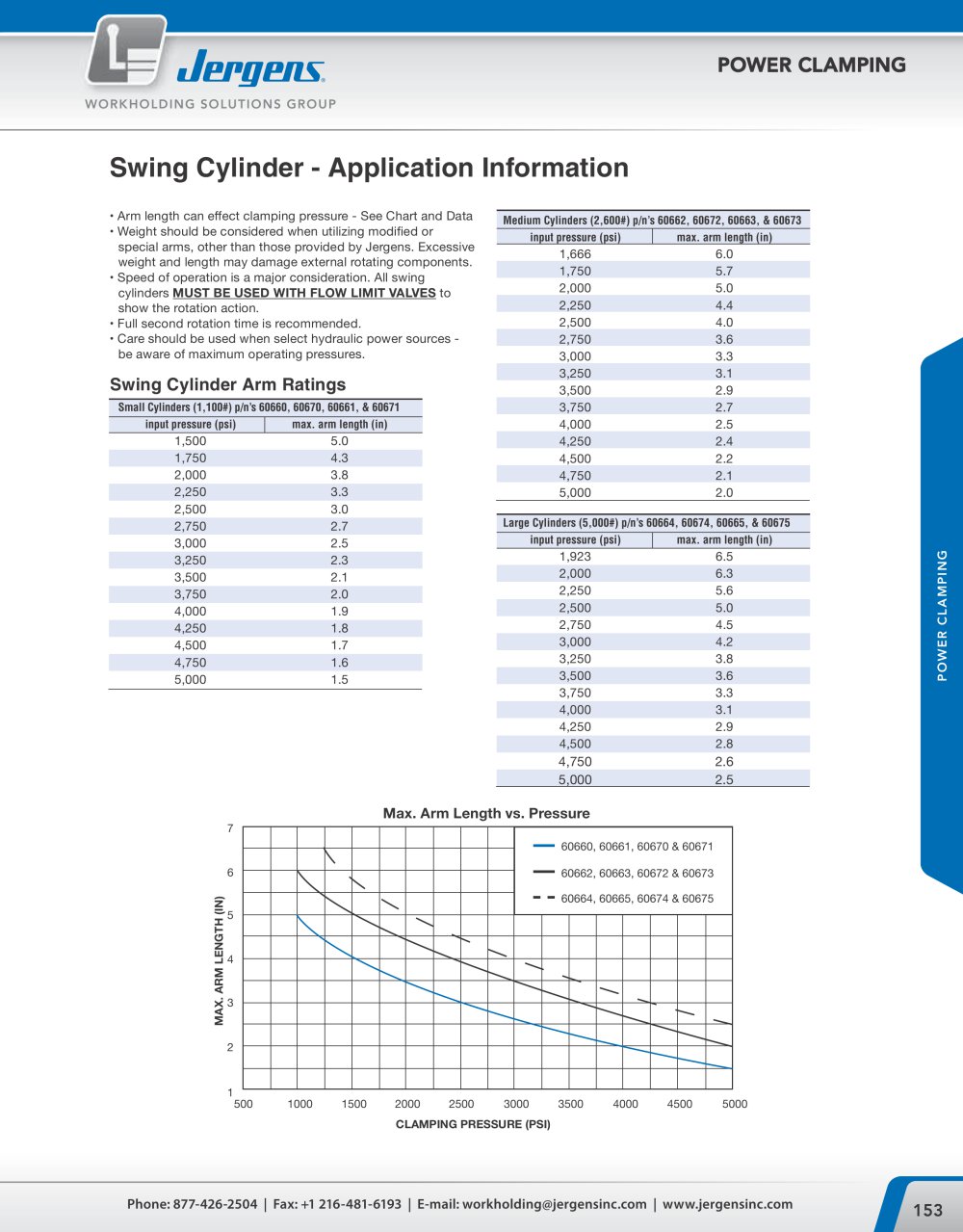

POWER CLAMPING 3 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 3.5 Swing Cylinder - Application Information • Arm length can effect clamping pressure - See Chart and Data • Weight should be considered when utilizing modified or special arms, other than those provided by Jergens. Excessive weight and length may damage external rotating components. • Speed of operation is a major consideration. All swing cylinders MUST BE USED WITH FLOW LIMIT VALVES to show the rotation action. • Full second rotation time is recommended. • Care should be used when select hydraulic power sources - be aware of maximum operating pressures. Swing Cylinder Arm Ratings Max. Arm Length vs. Pressure CLAMPING PRESSURE (PSI) MAX. ARM LENGTH (IN) 7 6 5 4 3 2 1 500 1000 1500 2000 2500 3000 3500 4000 4500 5000 60660, 60661, 60670 & 60671 60662, 60663, 60672 & 60673 60664, 60665, 60674 & 60675 Medium Cylinders (2,600#) p/n’s 60662, 60672, 60663, & 60673 input pressure (psi) max. arm length (in) 1,666 6.0 1,750 5.7 2,000 5.0 2,250 4.4 2,500 4.0 2,750 3.6 3,000 3.3 3,250 3.1 3,500 2.9 3,750 2.7 4,000 2.5 4,250 2.4 4,500 2.2 4,750 2.1 5,000 2.0 Large Cylinders (5,000#) p/n’s 60664, 60674, 60665, & 60675 input pressure (psi) max. arm length (in) 1,923 6.5 2,000 6.3 2,250 5.6 2,500 5.0 2,750 4.5 3,000 4.2 3,250 3.8 3,500 3.6 3,750 3.3 4,000 3.1 4,250 2.9 4,500 2.8 4,750 2.6 5,000 2.5 Small Cylinders (1,100#) p/n’s 60660, 60670, 60661, & 60671 input pressure (psi) max. arm length (in) 1,500 5.0 1,750 4.3 2,000 3.8 2,250 3.3 2,500 3.0 2,750 2.7 3,000 2.5 3,250 2.3 3,500 2.1 3,750 2.0 4,000 1.9 4,250 1.8 4,500 1.7 4,750 1.6 5,000 1.5
