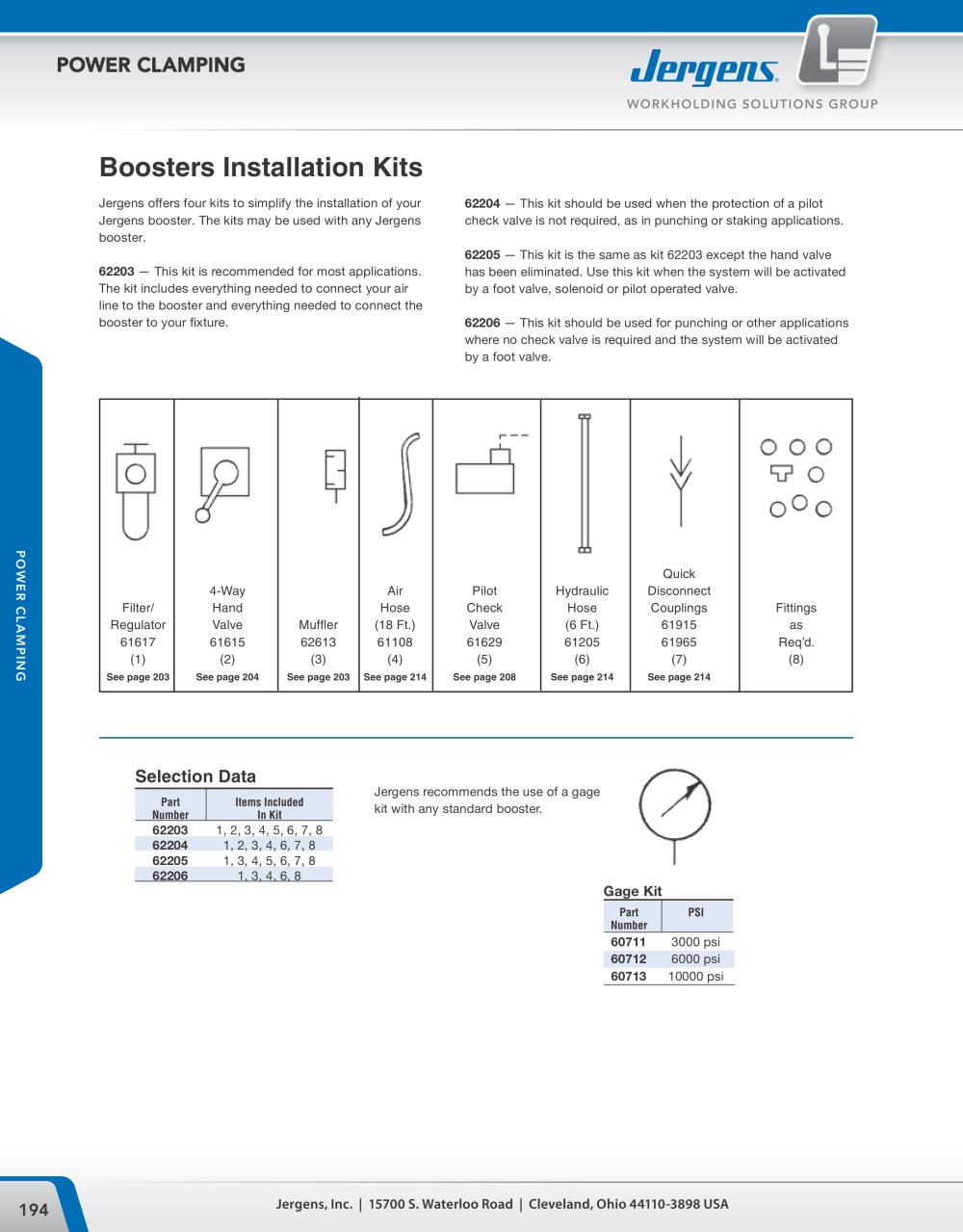

3 POWER CLAMPING www.jergensinc.com 3.46 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Specifications Part Number 61709 61710 61711 Reservoir Capacity (cu. in.) 15 15 18 High Pressure Volume (cu. in.) 4 7 1/2 3 3/4 Minimum Input (psi) 20 20 20 Maximum Input (psi) 125 125 125 Boost Ratio 15:1 15:1 30:1 Maximum Output (psi) 1875 1875 3750 Weight (lbs.) 20 24 22 Height (H) 10 7/16 14 7/16 14 7/16 Standard Boosters Base 60973 can be used to mount Jergens Boosters 61709 thru 61711 in a horizontal position. • Easy to view reservoir • 15:1 and 30:1 boost ratios • May be mounted vertically or horizontally 3/8" TUBE FITTING PROVIDED FOR EACH INLET AND OUTLET PORT. Valve Only 61641 The Rapid Exhaust Kit includes a valve, muffler, and fittings needed to convert Booster numbers 61709 thru 61711 to high speed operation. Standard Boosters are ideal for permanent fixtures, special machines or O.E.M. applications. The volume of oil available to operate the work circuit depends upon the high pressure capacity of the booster. Work circuits using standard boosters require manual bleeding. Rapid Exhaust Kit Installation Kits See Page 3.48 Accessories Part Number 62215 Part Number 60973 Mounting Bases
