3 POWER CLAMPING
www.jergensinc.com
3.4 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA
A
B
C
E
D
F
G
H
I
B
G
A
B
C
F
D
E
H
G
I
639420
639423
A
B
C
E
D
F
G
H
I
A
B
C
F
D
E
G
H
I
A
B
C
F
D
E
H
G
I
639420
639423
639426
A
B
C
E
D
F
G
H
I
A
B
C
F
D
E
G
H
I
639420
639426

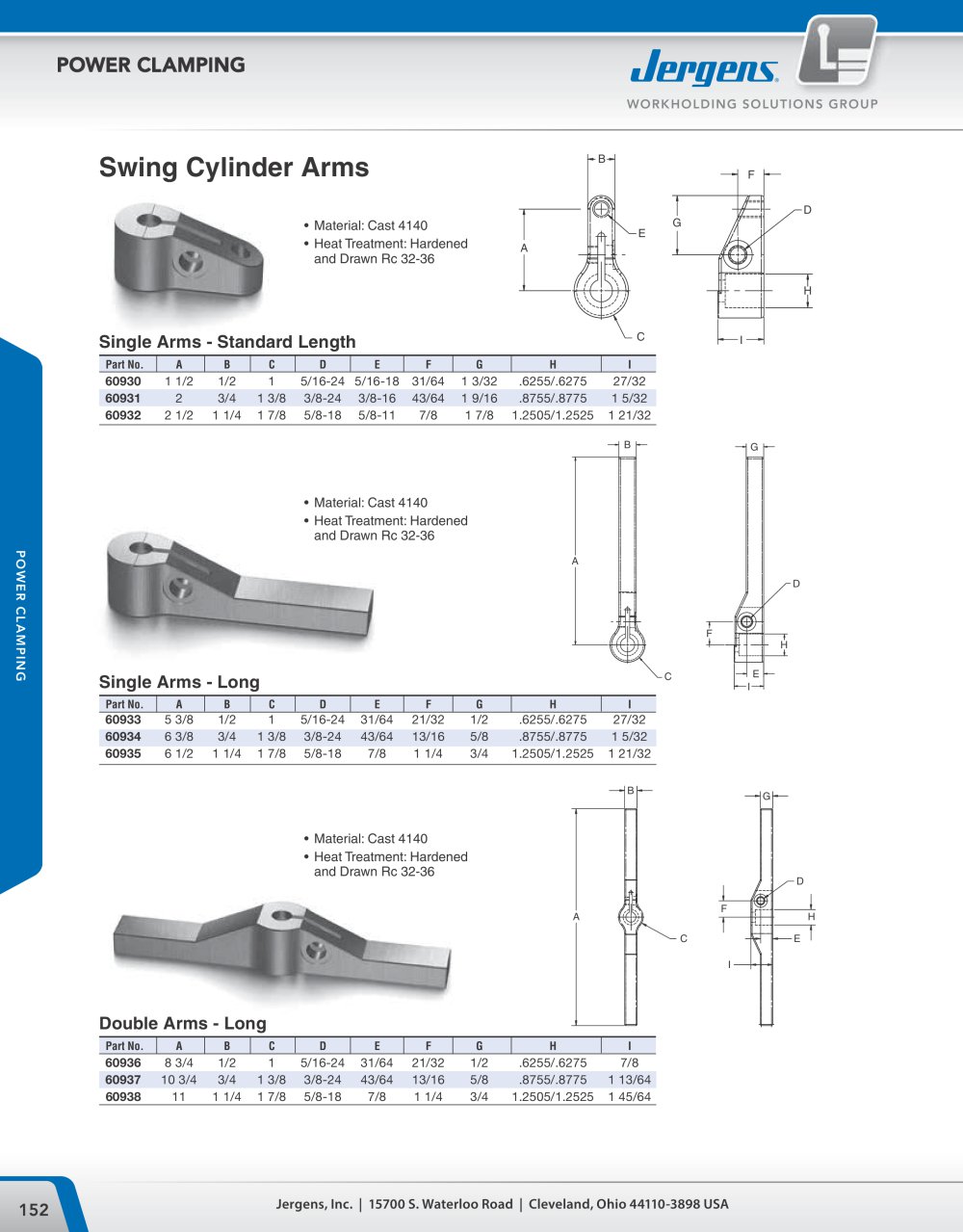

Single Arms - Standard Length
Single Arms - Long
Double Arms - Long
Swing Cylinder Arms
Part No. A B C D E F G H I
60936 8 3/4 1/2 1 5/16-24 31/64 21/32 1/2 .6255/.6275 7/8
60937 10 3/4 3/4 1 3/8 3/8-24 43/64 13/16 5/8 .8755/.8775 1 13/64
60938 11 1 1/4 1 7/8 5/8-18 7/8 1 1/4 3/4 1.2505/1.2525 1 45/64
Part No. A B C D E F G H I
60930 1 1/2 1/2 1 5/16-24 5/16-18 31/64 1 3/32 .6255/.6275 27/32
60931 2 3/4 1 3/8 3/8-24 3/8-16 43/64 1 9/16 .8755/.8775 1 5/32
60932 2 1/2 1 1/4 1 7/8 5/8-18 5/8-11 7/8 1 7/8 1.2505/1.2525 1 21/32
Part No. A B C D E F G H I
60933 5 3/8 1/2 1 5/16-24 31/64 21/32 1/2 .6255/.6275 27/32
60934 6 3/8 3/4 1 3/8 3/8-24 43/64 13/16 5/8 .8755/.8775 1 5/32
60935 6 1/2 1 1/4 1 7/8 5/8-18 7/8 1 1/4 3/4 1.2505/1.2525 1 21/32
