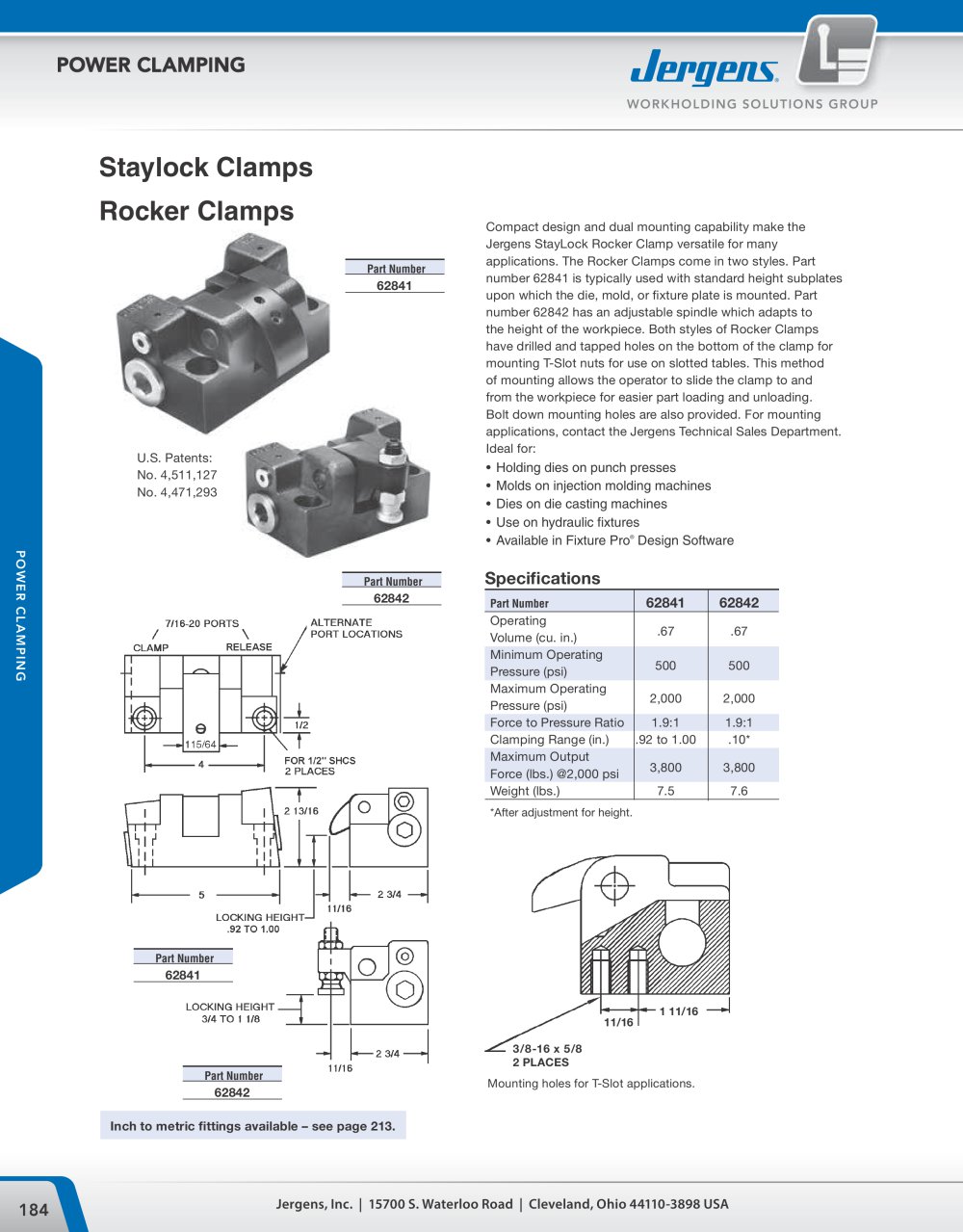

3 POWER CLAMPING www.jergensinc.com 3.36 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA C'BORED FOR 3/4" SHCS 4 REQ'D. CLAMP PORT 3 2 1 9 1 2 3 RELEASE PORT M5 X .8 X 10MM DEEP (WILL ACCEPT #10-32) REMOVE 1/8 NPT PLUG FOR MANIFOLD MOUNTING M12 X 1.0 FOR OPTIONAL PROXIMITY SWITCH 7/16-20UNF SAE PORTS 4 2.56 1.15 4.96 2 1.34 1 DIA. .06 .375 STROKE CLAMPING PISTON STAYLOCK CLAMP ADAPTER PLATE MOLD PORTS ROLLERS SENSOR Part Number 62806 Operating Volume (cu. in.) 7 Minimum Operating Pressure (psi) 500 Maximum Operating Pressure (psi) 3500 Force to Pressure Ratio 8:1 Clamping Stroke .38 Maximum Output Force (lbs.) 28,000 Weight (lbs.) 43 Specifications Large Capacity Mold Clamp The Jergens Large Capacity Mold Clamp is used on molding machines and wherever heavy clamping forces are required. It has a clamping force of 28,000 lbs. The clamp can be mounted either individually or in series on a manifold. Proximity Switch The Proximity Switch indicates the clamp’s piston position. A single switch is required for each Large Capacity Clamp. Stainless steel construction with 16' cord, 10-30 VDC. Typical StayLock Manifold Layout on Injection Molding Machine Part Number 62817 Staylock Clamps
