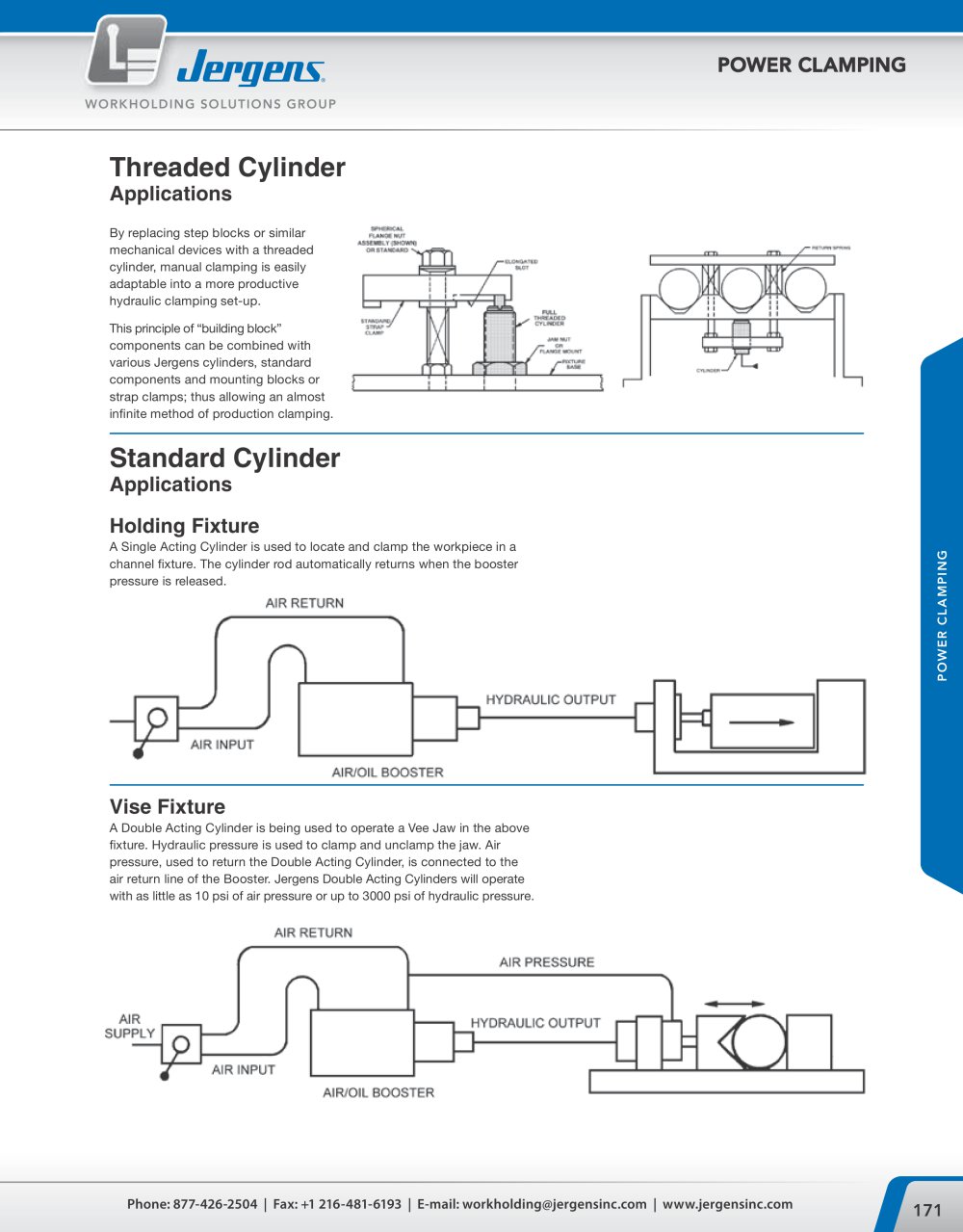

POWER CLAMPING 3 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 3.23 Double Acting Cylinders can be used for clamping, holding positioning, staking, punching...anywhere that a heavy duty cylinder is needed. If the cylinder is mounted in the fixture (as opposed to using mounting brackets), the fixture should be bored to between .0005 and .0010 over the “A” dimension. Doing so will prevent an out-of-round condition of the cylinder body which could damage the piston. They may be returned by air or by hydraulic pressure. • Available in FixtureProTM Design Software Dimensions Return Part Tap Port Number A B C D E F G H J K 60345 1.500 2 7/16 3 1/8 2 15/32 3/8-16 x 3/4 7/16-20 31/32 1 9/32 1/4 1/2 60341 2.500 2 11/16 3 3/8 2 31/32 3/8-16 x 3/4 7/16-20 31/32 1 9/32 1/4 3/4 60350 1.500 3 1/2 4 1/2 2 15/32 1/4-20 x 1/2 9/16-18 1 7/32 2 11/32 1/4 7/16 60351 2.500 3 3/4 4 23/32 2 31/32 3/8-16 x 3/4 9/16-18 1 3/16 2 11/32 1/4 3/4 60360 1.500 4 1/2 5 1/2 2 15/32 1/4-20 x 1/2 9/16-18 1 7/32 3 11/32 1/4 7/16 60361 2.500 4 3/4 5 23/32 2 31/32 3/8-16 x 3/4 9/16-18 1 3/16 3 11/32 1/4 3/4 Standard Cylinders Double Acting Specifications Part Number 60345 60341 60350 60351 60360 60361 Operating Stroke (in.) 1 1 2 2 3 3 Operating Volume (cu. in.) 1.1 3.14 2.2 6.28 3.31 9.42 Effective Piston -Push 1.1 3.14 1.1 3.14 1.1 3.14 Area (sq. in.) -Pull .912 2.699 .956 2.699 .956 2.699 Minimum Operating Pressure (psi) 20 20 20 20 20 20 Maximum Operating Pressure (psi) 3000 3000 3000 3000 3000 3000 Maximum Output Force (lbs.) 3300 9300 3300 9300 3300 9300 Weight (lbs.) 2.5 4.5 3.5 6.0 4.75 6.2
