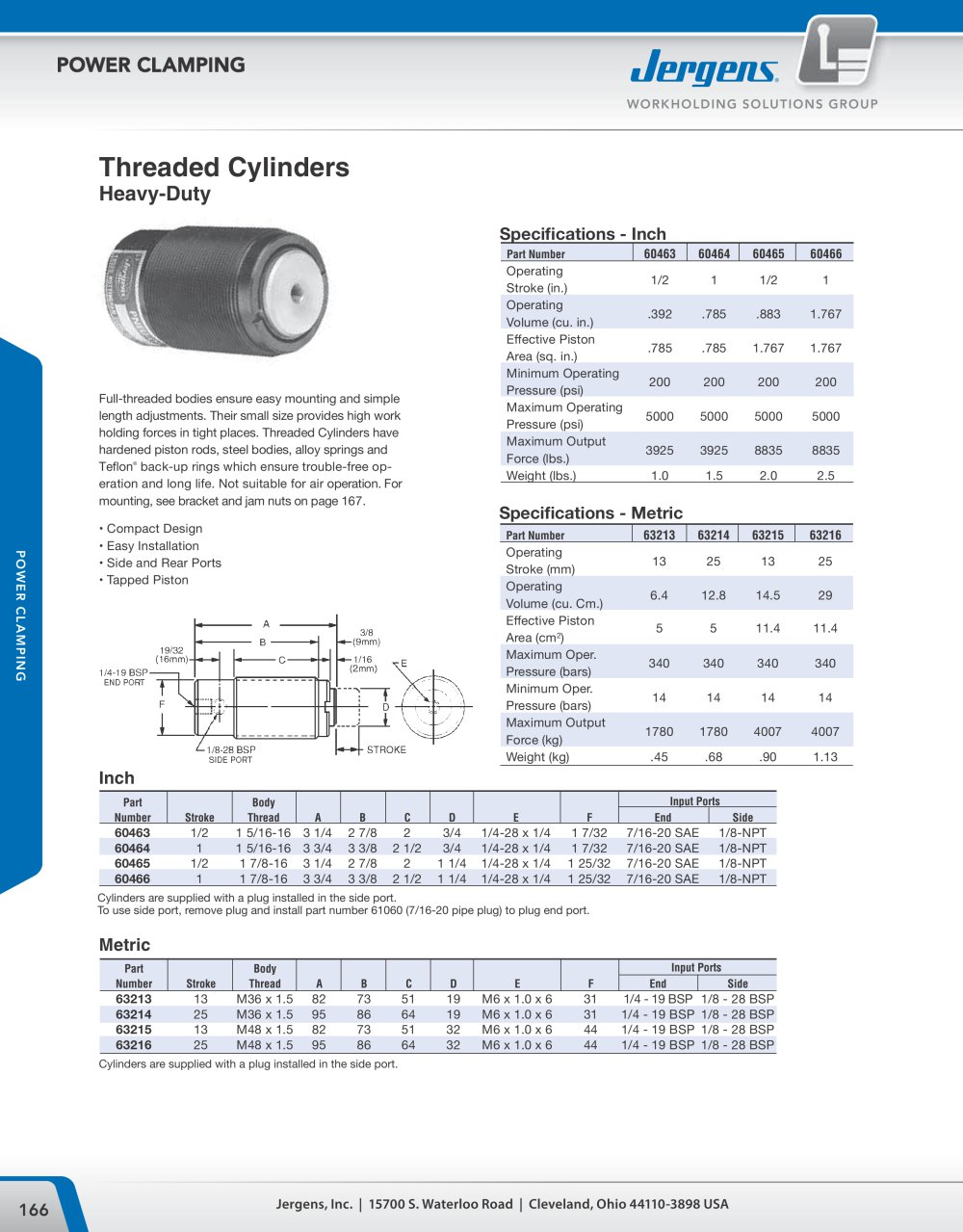

3 POWER CLAMPING www.jergensinc.com 3.18 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Part Body End Number Stroke Thread A B C D E F Port 60461 3/16 1/2-20 1 13/16 1 9/16 1/4 3/16 3/8 7/16 1/16-27 NPTF 60462 1/2 3/4-16 2 3/8 2 5/16 1/4 21/32 5/8 1/8-27 NPTF Part Number 60461 60462 Operating Stroke (in.) 3/16 1/2 Operating Volume (cu. in.) .018 .049 Effective Piston Area (sq. in.) .096 .196 Minimum Operating Pressure (psi) 200 300 Maximum Operating Pressure (psi) 10000 10000 Maximum Output Force (lbs.) 960 1960 Weight (lbs.) .5 .7 Jergens Pressure Points may be used with any power source and are designed to be used in restricted areas where space is at a minimum. Pressure Points can be used to eliminate part distortion during machining operations or to hold large diameter castings or rings in place while machining the upper surface. Pressure Points have hardened tool steel tips (50-60Rc). Jam nuts are included. Not suitable for air operation. • Available in FixtureProTM Design Software Threaded Cylinders Pressure Points Miniature Cylinders Part Number 61514 Part Number 61512 Specifications Specifications Part Number 61512 61514 Operating Stroke (in.) 3/16 3/16 Operating Volume (cu. in.) .037 .037 Effective Piston Area (sq. in.) .20 .20 Minimum Operating Pressure (psi) 400 400 Maximum Operating Pressure (psi) 5000 5000 Maximum Output Force (lbs.) 1000 1000 Weight (lbs.) .5 .6 Small, fully-threaded bodies ensure easy mounting and simple length adjustments. Their small size provides high workholding forces in tight places. Threaded Cylinders have hardened piston rods, steel bodies, alloy springs and Teflon® back-up rings which ensure trouble-free operation and long life. Not suitable for air operation. For mounting, see brackets on page 3.24. Jam nuts are included. • Available in FixtureProTM Design Software
