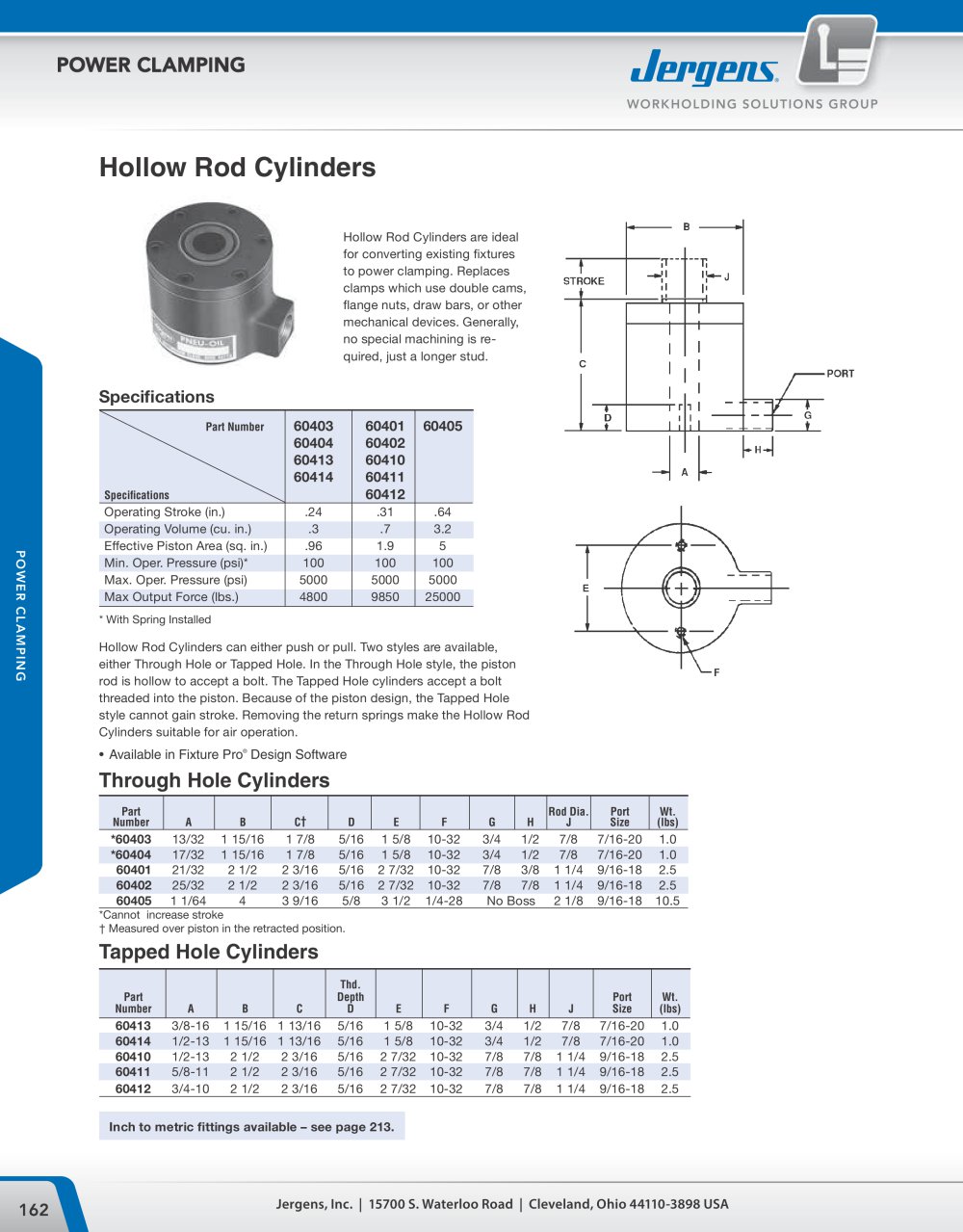

3 POWER CLAMPING www.jergensinc.com 3.14 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA A B C D O G J F E K L H I 9/16-18 PORT BLEED PORT 1/4-20 X 3/8 11/32 DIA. Bolt Size Height Part Thru Tapped Tap E Port Number A A B C Min Max F G H I J K L M N 60513 1/4 5/16-24 .50 1/4-20 2.45 2.70 .49 2.36 1.12 .81 1.75 9/16-18 .5 1.5 2 Work Supports Hydraulically-locked Work Supports differ from clamps and vises in that they do not actually exert force upon the workpiece. Rather, they are used to support the part being machined, offering resistance to any clamping forces acting counter to the direction of travel of the piston. In a typical application, a large, thin casting is located on several tooling point pads for positioning. Work Supports will automatically adjust to support the delicate sections of the casting. When hydraulic pressure is applied, the floating pistons within the Work Support are locked in position and resist any downward movement exerted on the casting. After the casting is removed, the floating pistons return to their fully-raised position. • Available in FixtureProTM Design Software Specifications Part Number 60513 60512 Operating Volume (cu. in.) .04 .06 Support to Pressure Ratio 1.6:1 3.3:1 Minimum Operating Pressure (psi) 500 500 Maximum Operating Pressure (psi) 3000 3000 Maximum Support Capacity (lbs.) 5000 10000 Plunger Spring Start 2 14 Force (lbs.) Finish 7 40 Weight (lbs.) 2.0 5.5 Part G Number A B C D E F Min Max H I J K L O 60512 3 9/16 1 3/8 2 3/4 .990 5/8 3.69 4.15 4.65 4 3/16 2 3/32 3/8 3 1 7/8 1.07
