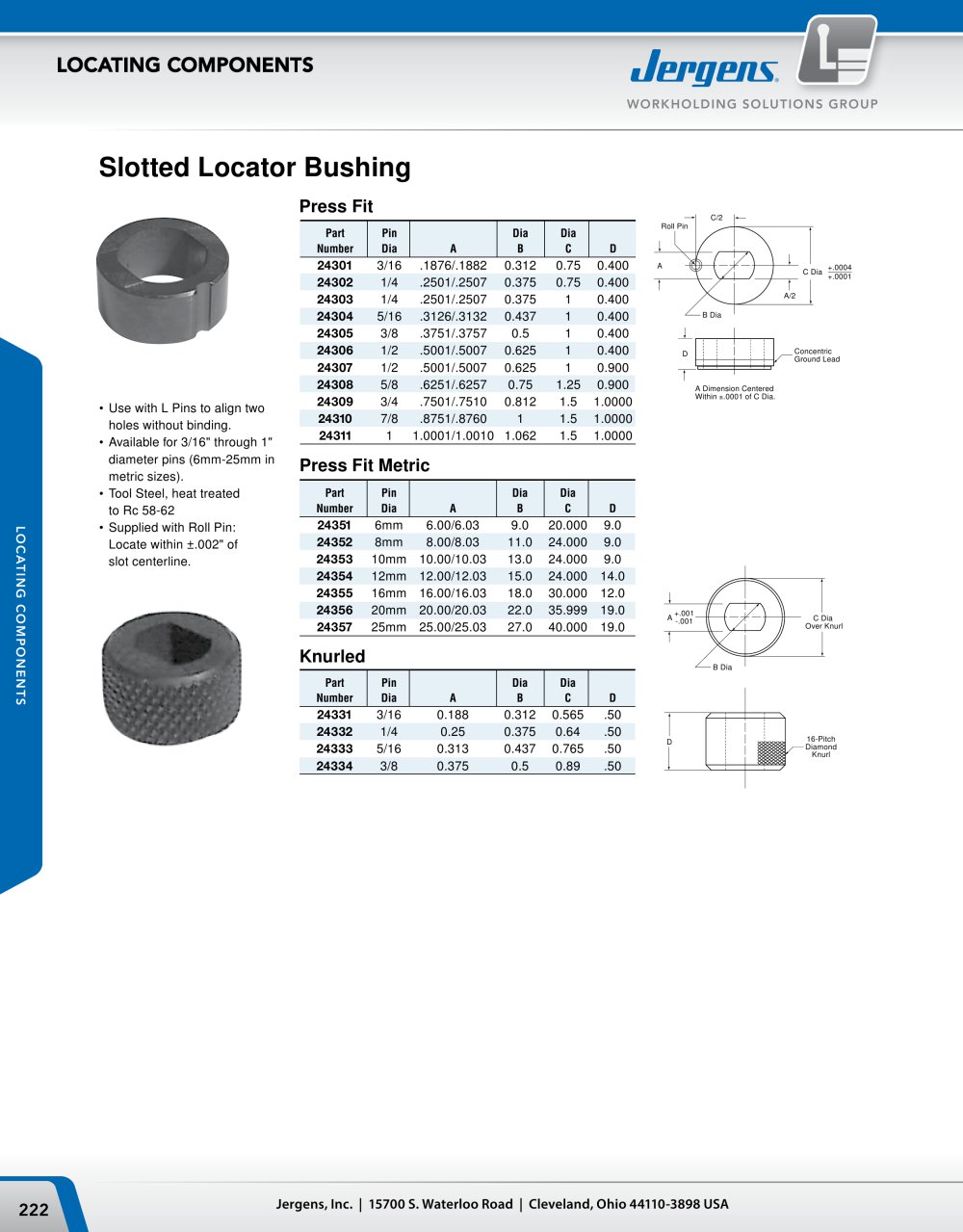

4 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA LOCATING COMPONENTS www.jergensinc.com 4.8 L-Pins and T-Pins • Material: Heat Treated Steel • Finish: Black Oxide • Available in FixtureProTM Design Software Jergens L-Pins and T-Pins are precision ground locating devices for aligning workpieces in jigs or fixtures. Each pin has a 1/8" diameter hole in the handle for attaching the nylon covered lanyard shown on page 4.9. Part Number L-pin T-pin A B C D 24001 24201 .125 2 1/2 1 1/2 1/4 24002 24202 .1875 3 2 1/2 5/16 24003 24203 .1875 6 2 1/2 5/16 24004 24204 .191 3 2 1/2 5/16 24005 24205 .191 6 2 1/2 5/16 24026 24226 .250 2 2 1/2 3/8 24007 24207 .250 3 2 1/2 3/8 24008 24208 .250 4 2 1/2 3/8 24009 24209 .250 6 2 1/2 3/8 24010 24210 .257 3 2 1/2 3/8 24030 24230 .3125 2 2 1/2 7/16 24011 24211 .3125 3 1/2 3 7/16 24012 24212 .3125 6 3 7/16 24013 24213 .375 4 3 1/2 1/2 24014 24214 .375 6 3 1/2 1/2 24015 24215 .4375 4 3 1/2 9/16 24016 24216 .4375 6 3 1/2 9/16 24017 24217 .500 4 3 1/2 5/8 24018 24218 .500 6 3 1/2 5/8 24019 24219 .5625 4 3 1/2 5/8 24020 24220 .5625 6 3 1/2 5/8 24021 24221 .625 6 3 1/2 7/8 24022 24222 .750 6 3 1/2 7/8 Metric Part Number L-pin T-pin A B C D 24051 24251 4 88 64 8 24052 24252 5 76 64 8 24054 24254 6 152 64 8 24055 24255 6 76 64 10 24056 24256 6 152 64 10 24057 24257 8 88 76 11 24058 24258 8 152 76 11 24059 24259 10 76 64 13 24060 24260 10 152 88 13 24061 24261 12 102 88 16 24062 24262 12 152 88 16 24063 24263 16 152 88 22 24064 24264 16 204 88 22 24065 24265 20 152 88 22 24066 24266 20 204 88 22
