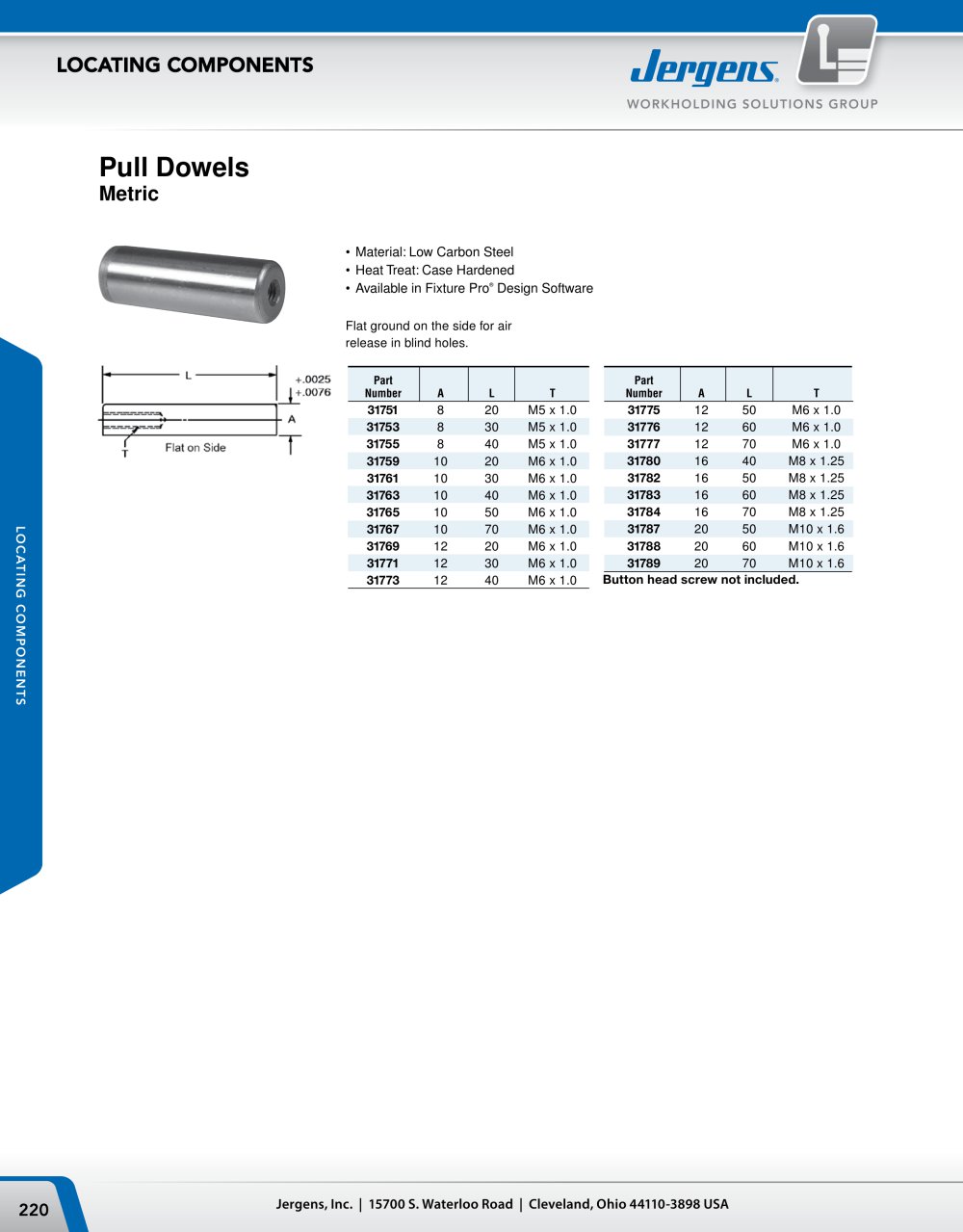

4 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA LOCATING COMPONENTS www.jergensinc.com 4.6 Part Number A L T 31751 8 20 M5 x 1.0 31753 8 30 M5 x 1.0 31755 8 40 M5 x 1.0 31759 10 20 M6 x 1.0 31761 10 30 M6 x 1.0 31763 10 40 M6 x 1.0 31765 10 50 M6 x 1.0 31767 10 70 M6 x 1.0 31769 12 20 M6 x 1.0 31771 12 30 M6 x 1.0 31773 12 40 M6 x 1.0 Part Number A L T 31775 12 50 M6 x 1.0 31776 12 60 M6 x 1.0 31777 12 70 M6 x 1.0 31780 16 40 M8 x 1.25 31782 16 50 M8 x 1.25 31783 16 60 M8 x 1.25 31784 16 70 M8 x 1.25 31787 20 50 M10 x 1.6 31788 20 60 M10 x 1.6 31789 20 70 M10 x 1.6 • Material: Low Carbon Steel • Heat Treat: Case Hardened • Available in FixtureProTM Design Software Flat ground on the side for air release in blind holes. Pull Dowels Metric Button head screw not included.
