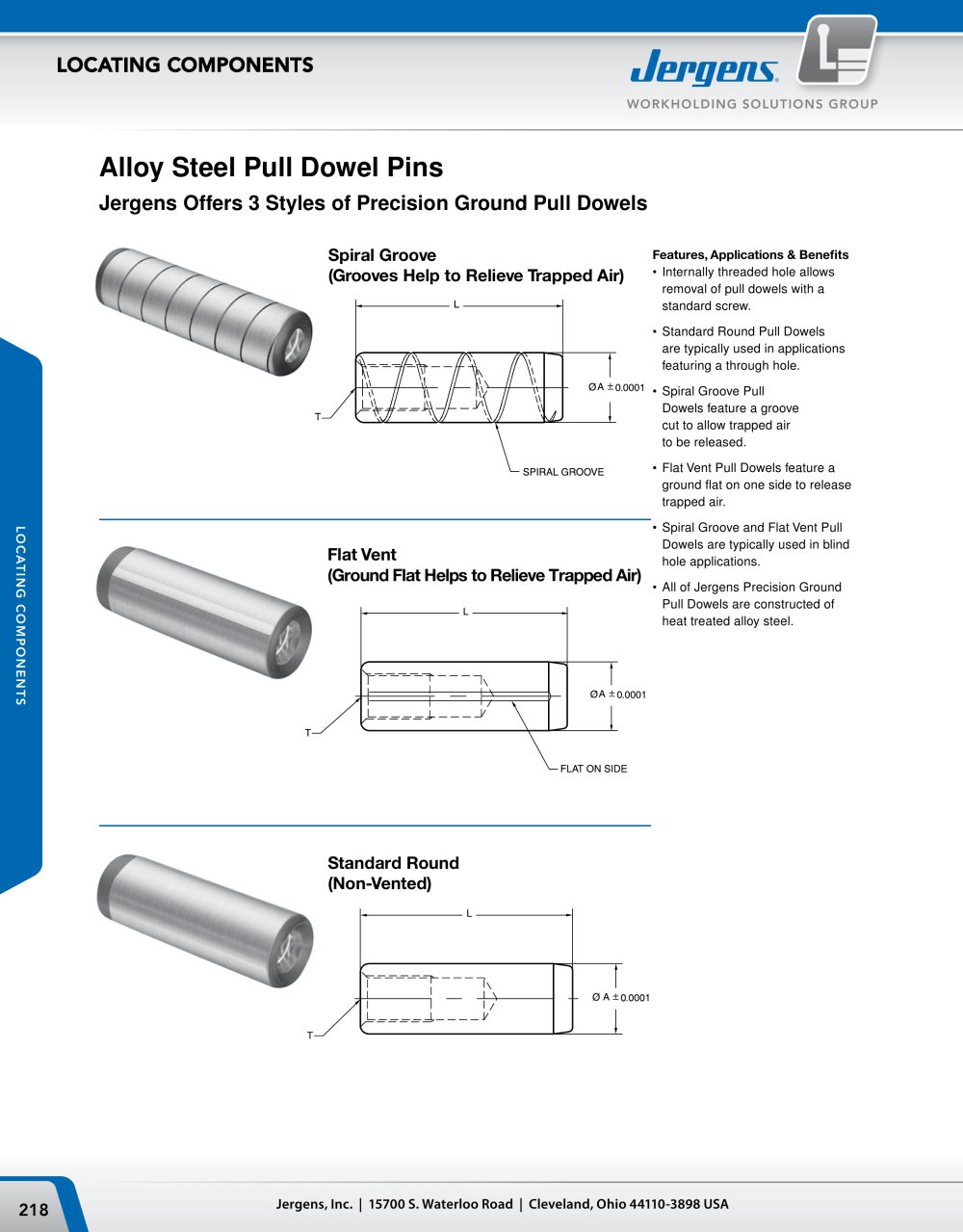

4 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA LOCATING COMPONENTS www.jergensinc.com 4.4 ± ± ± ± ± ± ± ± ± Alloy Steel Pull Dowel Pins Spiral Groove (Grooves Help to Relieve Trapped Air) Flat Vent (Ground Flat Helps to Relieve Trapped Air) Standard Round (Non-Vented) Features, Applications & Benefits • Internally threaded hole allows removal of pull dowels with a standard screw. • Standard Round Pull Dowels are typically used in applications featuring a through hole. • Spiral Groove Pull Dowels feature a groove cut to allow trapped air to be released. • Flat Vent Pull Dowels feature a ground flat on one side to release trapped air. • Spiral Groove and Flat Vent Pull Dowels are typically used in blind hole applications. • All of Jergens Precision Ground Pull Dowels are constructed of heat treated alloy steel. Jergens Offers 3 Styles of Precision Ground Pull Dowels
