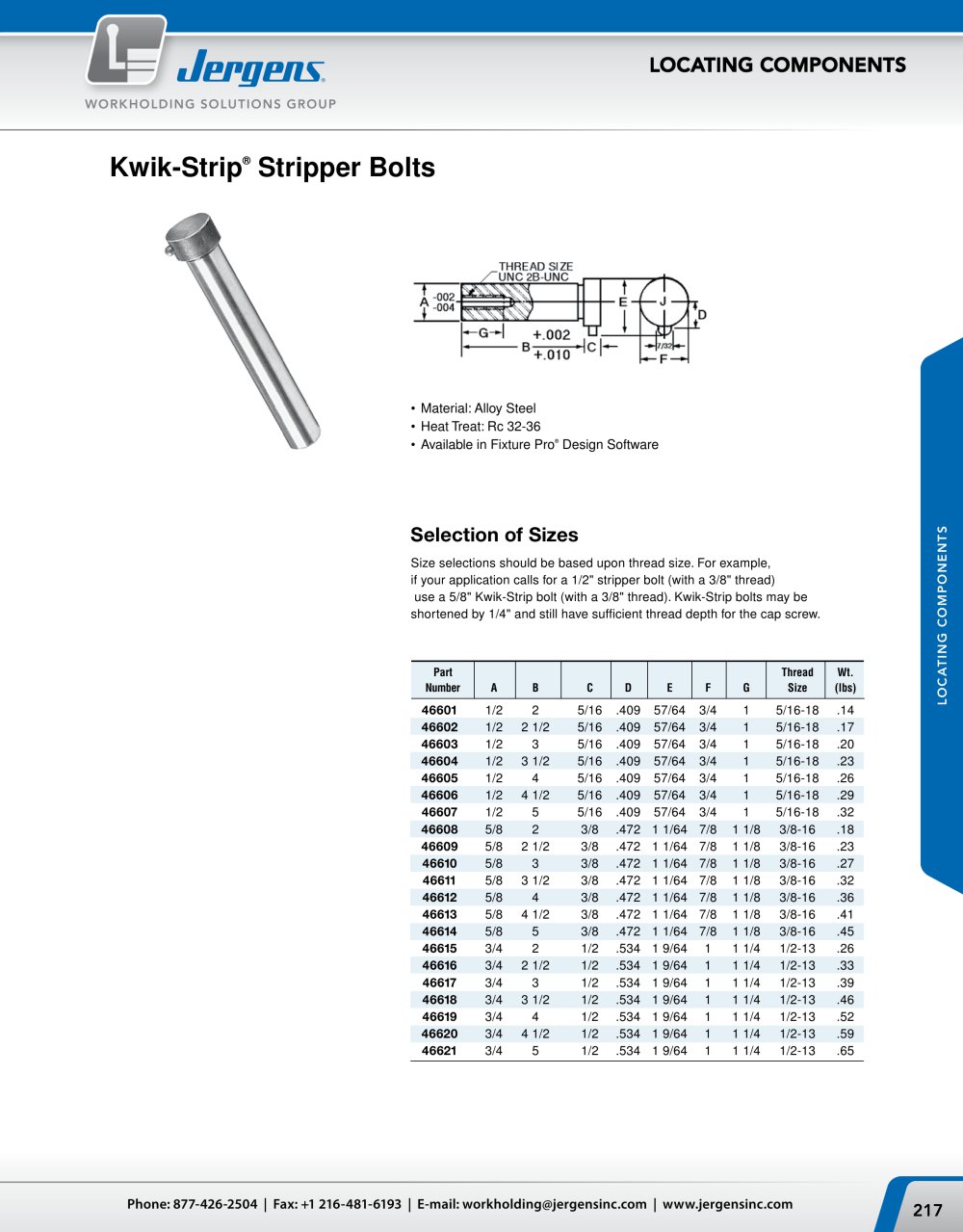

4 Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com LOCATING COMPONENTS www.jergensinc.com 4.3 1/4" Drill bushing is included. Part Thread Wt. Number A B C D E F G Size (lbs) 46601 1/2 2 5/16 .409 57/64 3/4 1 5/16-18 .14 46602 1/2 2 1/2 5/16 .409 57/64 3/4 1 5/16-18 .17 46603 1/2 3 5/16 .409 57/64 3/4 1 5/16-18 .20 46604 1/2 3 1/2 5/16 .409 57/64 3/4 1 5/16-18 .23 46605 1/2 4 5/16 .409 57/64 3/4 1 5/16-18 .26 46606 1/2 4 1/2 5/16 .409 57/64 3/4 1 5/16-18 .29 46607 1/2 5 5/16 .409 57/64 3/4 1 5/16-18 .32 46608 5/8 2 3/8 .472 1 1/64 7/8 1 1/8 3/8-16 .18 46609 5/8 2 1/2 3/8 .472 1 1/64 7/8 1 1/8 3/8-16 .23 46610 5/8 3 3/8 .472 1 1/64 7/8 1 1/8 3/8-16 .27 46611 5/8 3 1/2 3/8 .472 1 1/64 7/8 1 1/8 3/8-16 .32 46612 5/8 4 3/8 .472 1 1/64 7/8 1 1/8 3/8-16 .36 46613 5/8 4 1/2 3/8 .472 1 1/64 7/8 1 1/8 3/8-16 .41 46614 5/8 5 3/8 .472 1 1/64 7/8 1 1/8 3/8-16 .45 46615 3/4 2 1/2 .534 1 9/64 1 1 1/4 1/2-13 .26 46616 3/4 2 1/2 1/2 .534 1 9/64 1 1 1/4 1/2-13 .33 46617 3/4 3 1/2 .534 1 9/64 1 1 1/4 1/2-13 .39 46618 3/4 3 1/2 1/2 .534 1 9/64 1 1 1/4 1/2-13 .46 46619 3/4 4 1/2 .534 1 9/64 1 1 1/4 1/2-13 .52 46620 3/4 4 1/2 1/2 .534 1 9/64 1 1 1/4 1/2-13 .59 46621 3/4 5 1/2 .534 1 9/64 1 1 1/4 1/2-13 .65 Part Bolt Number Counterbore Size* 46647 31/32 5/8 46648 1 1/32 3/4 Kwik-Strip® Stripper Bolts • Material: Alloy Steel • Heat Treat: Rc 32-36 • Available in FixtureProTM Design Software Counterbore Tools Counterbores for installing Jergens Kwik-Strip Stripper Bolts. Drill Jigs Position in drilled hole, rotate set screw to lock, then proceed to drill 1/4" hole to desired depth. Part Bolt Wt. Number Size* A B (lbs) 46641 1/2 .528 1 1/2 .20 46642 5/8 .653 1 1/2 .22 46643 3/4 .778 1 5/8 .24 Drill Bushing 1/4" A B 1/2 *Refers to “A” Dimension on stripper bolts. Selection of Sizes Size selections should be based upon thread size. For example, if your application calls for a 1/2" stripper bolt (with a 3/8" thread) use a 5/8" Kwik-Strip bolt (with a 3/8" thread). Kwik-Strip bolts may be shortened by 1/4" and still have sufficient thread depth for the cap screw. 7/8
