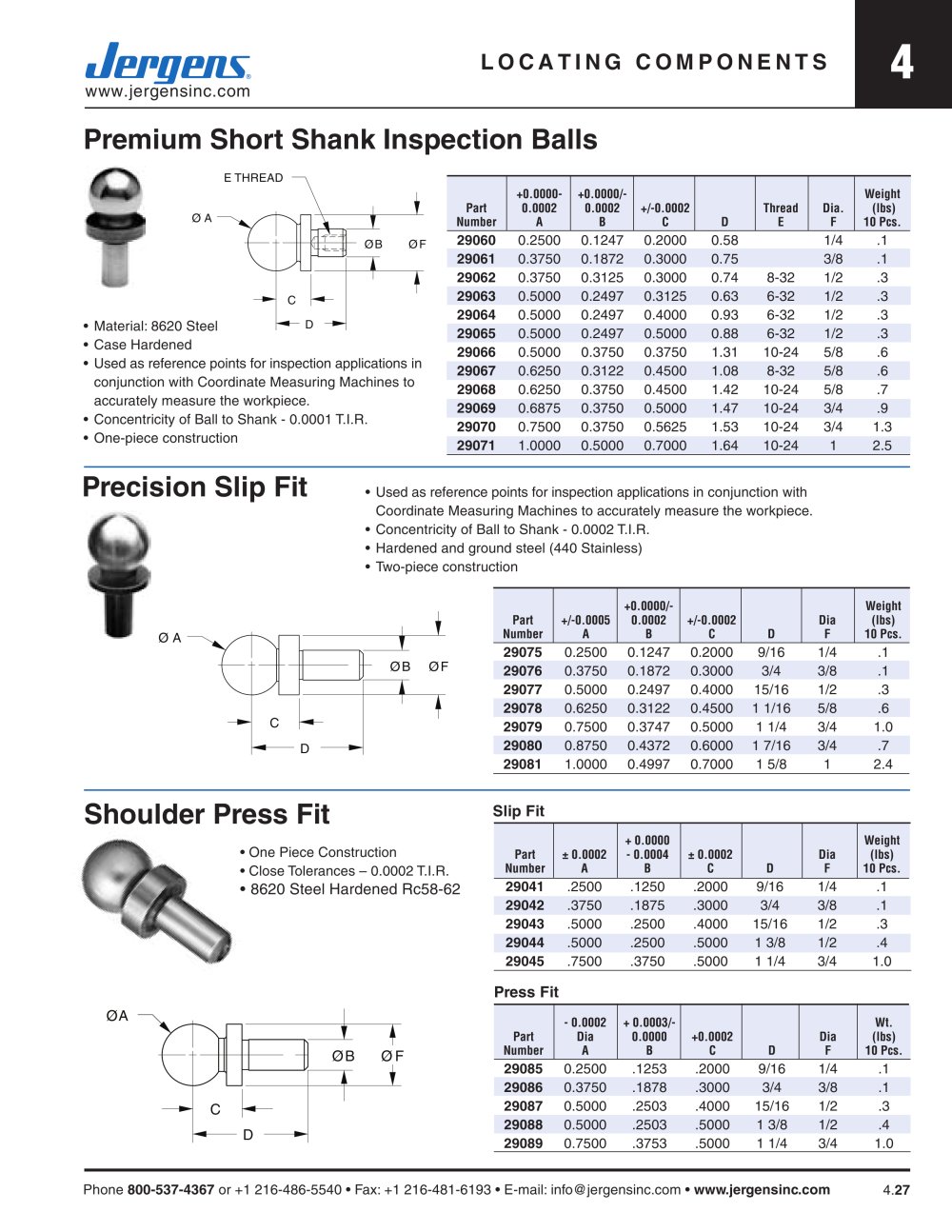

4 Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com LOCATING COMPONENTS www.jergensinc.com 4.27 Premium Short Shank Inspection Balls • One Piece Construction • Close Tolerances – 0.0002 T.I.R. • 8620 Steel Hardened Rc58-62 Precision Slip Fit Shoulder Press Fit • Used as reference points for inspection applications in conjunction with Coordinate Measuring Machines to accurately measure the workpiece. • Concentricity of Ball to Shank - 0.0002 T.I.R. • Hardened and ground steel (440 Stainless) • Two-piece construction • Material: 8620 Steel • Case Hardened • Used as reference points for inspection applications in conjunction with Coordinate Measuring Machines to accurately measure the workpiece. • Concentricity of Ball to Shank - 0.0001 T.I.R. • One-piece construction +0.0000/- Weight Part +/-0.0005 0.0002 +/-0.0002 Dia (lbs) Number A B C D F 10 Pcs. 29075 0.2500 0.1247 0.2000 9/16 1/4 .1 29076 0.3750 0.1872 0.3000 3/4 3/8 .1 29077 0.5000 0.2497 0.4000 15/16 1/2 .3 29078 0.6250 0.3122 0.4500 1 1/16 5/8 .6 29079 0.7500 0.3747 0.5000 1 1/4 3/4 1.0 29080 0.8750 0.4372 0.6000 1 7/16 3/4 .7 29081 1.0000 0.4997 0.7000 1 5/8 1 2.4 +0.0000- +0.0000/- Weight Part 0.0002 0.0002 +/-0.0002 Thread Dia. (lbs) Number A B C D E F 10 Pcs. 29060 0.2500 0.1247 0.2000 0.58 1/4 .1 29061 0.3750 0.1872 0.3000 0.75 3/8 .1 29062 0.3750 0.3125 0.3000 0.74 8-32 1/2 .3 29063 0.5000 0.2497 0.3125 0.63 6-32 1/2 .3 29064 0.5000 0.2497 0.4000 0.93 6-32 1/2 .3 29065 0.5000 0.2497 0.5000 0.88 6-32 1/2 .3 29066 0.5000 0.3750 0.3750 1.31 10-24 5/8 .6 29067 0.6250 0.3122 0.4500 1.08 8-32 5/8 .6 29068 0.6250 0.3750 0.4500 1.42 10-24 5/8 .7 29069 0.6875 0.3750 0.5000 1.47 10-24 3/4 .9 29070 0.7500 0.3750 0.5625 1.53 10-24 3/4 1.3 29071 1.0000 0.5000 0.7000 1.64 10-24 1 2.5 Slip Fit Press Fit + 0.0000 Weight Part ± 0.0002 - 0.0004 ± 0.0002 Dia (lbs) Number A B C D F 10 Pcs. 29041 .2500 .1250 .2000 9/16 1/4 .1 29042 .3750 .1875 .3000 3/4 3/8 .1 29043 .5000 .2500 .4000 15/16 1/2 .3 29044 .5000 .2500 .5000 1 3/8 1/2 .4 29045 .7500 .3750 .5000 1 1/4 3/4 1.0 - 0.0002 + 0.0003/- Wt. Part Dia 0.0000 +0.0002 Dia (lbs) Number A B C D F 10 Pcs. 29085 0.2500 .1253 .2000 9/16 1/4 .1 29086 0.3750 .1878 .3000 3/4 3/8 .1 29087 0.5000 .2503 .4000 15/16 1/2 .3 29088 0.5000 .2503 .5000 1 3/8 1/2 .4 29089 0.7500 .3753 .5000 1 1/4 3/4 1.0 Ø A C ØB ØF D E THREAD Ø A C D ØB ØF ØA C D ØB ØF
