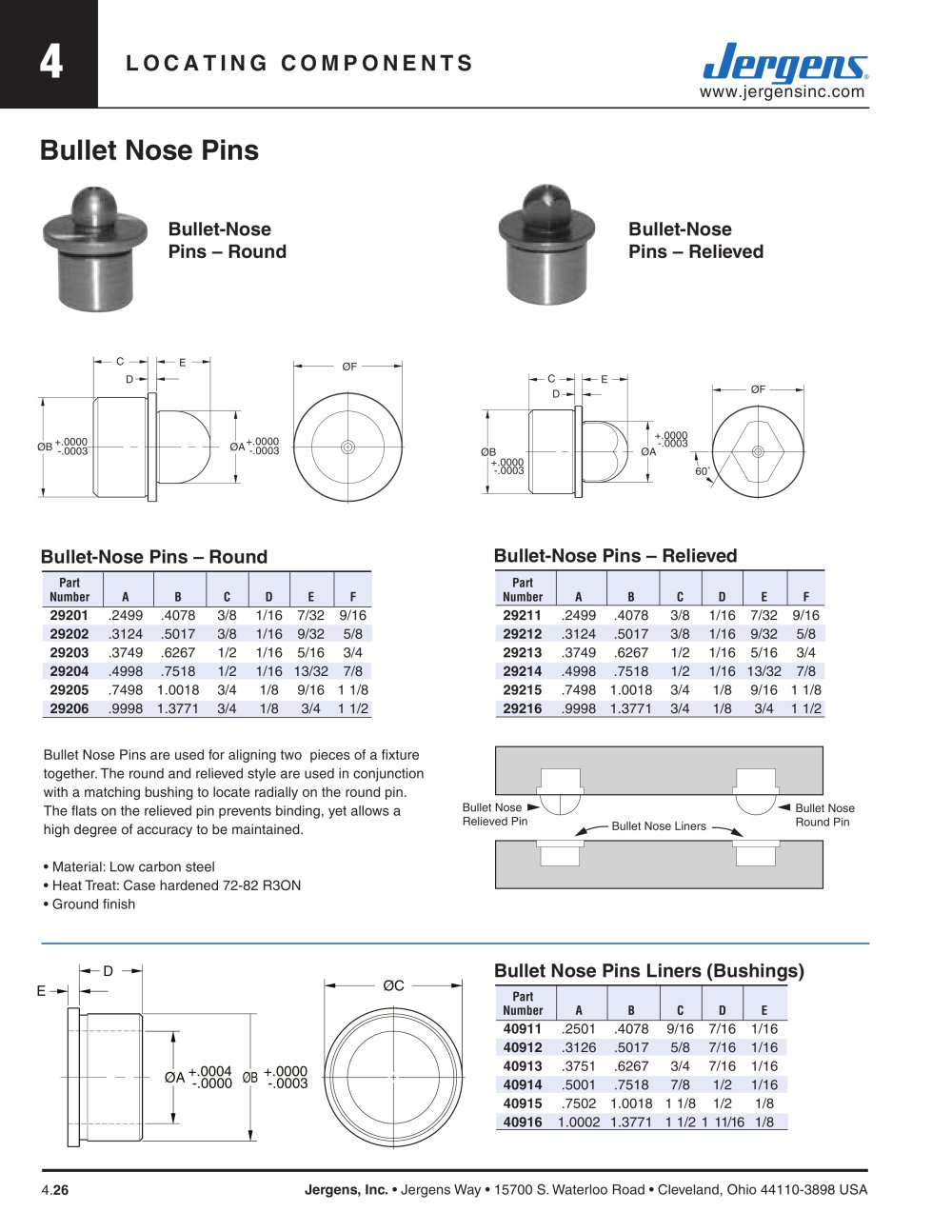

4 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA LOCATING COMPONENTS www.jergensinc.com 4.26 Bullet Nose Pins are used for aligning two pieces of a fixture together. The round and relieved style are used in conjunction with a matching bushing to locate radially on the round pin. The flats on the relieved pin prevents binding, yet allows a high degree of accuracy to be maintained. • Material: Low carbon steel • Heat Treat: Case hardened 72-82 R3ON • Ground finish Bullet Nose Pins Bullet-Nose Pins – Round Part Number A B C D E F 29201 .2499 .4078 3/8 1/16 7/32 9/16 29202 .3124 .5017 3/8 1/16 9/32 5/8 29203 .3749 .6267 1/2 1/16 5/16 3/4 29204 .4998 .7518 1/2 1/16 13/32 7/8 29205 .7498 1.0018 3/4 1/8 9/16 1 1/8 29206 .9998 1.3771 3/4 1/8 3/4 1 1/2 Bullet-Nose Pins – Relieved Part Number A B C D E F 29211 .2499 .4078 3/8 1/16 7/32 9/16 29212 .3124 .5017 3/8 1/16 9/32 5/8 29213 .3749 .6267 1/2 1/16 5/16 3/4 29214 .4998 .7518 1/2 1/16 13/32 7/8 29215 .7498 1.0018 3/4 1/8 9/16 1 1/8 29216 .9998 1.3771 3/4 1/8 3/4 1 1/2 Bullet Nose Pins Liners (Bushings) Part Number A B C D E 40911 .2501 .4078 9/16 7/16 1/16 40912 .3126 .5017 5/8 7/16 1/16 40913 .3751 .6267 3/4 7/16 1/16 40914 .5001 .7518 7/8 1/2 1/16 40915 .7502 1.0018 1 1/8 1/2 1/8 40916 1.0002 1.3771 1 1/2 1 11/16 1/8 ØA ØB D E +.0004 -.0000 +.0000 -.0003 ØC Bullet-Nose Pins – Round Bullet-Nose Pins – Relieved Bullet Nose Liners Bullet Nose Round Pin Bullet Nose Relieved Pin ØB ØA C D E +.0000 -.0003 +.0000 -.0003 60¢ª ØF ØB ØA C D E +.0000 -.0003 ØF +.0000 -.0003
