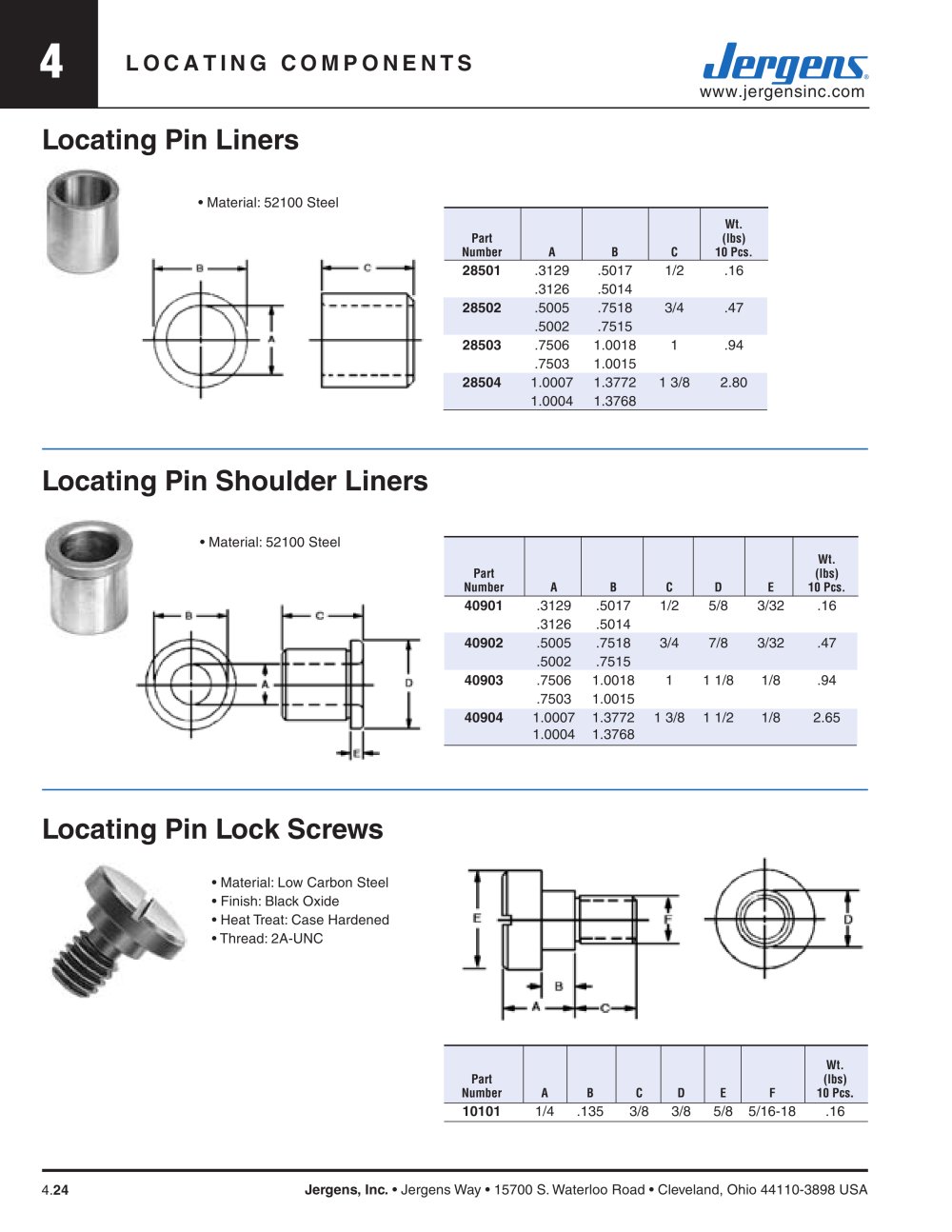

4 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA LOCATING COMPONENTS www.jergensinc.com 4.24 Wt. Part (lbs) Number A B C D E F 10 Pcs. 10101 1/4 .135 3/8 3/8 5/8 5/16-18 .16 Wt. Part (lbs) Number A B C D E 10 Pcs. 40901 .3129 .5017 1/2 5/8 3/32 .16 .3126 .5014 40902 .5005 .7518 3/4 7/8 3/32 .47 .5002 .7515 40903 .7506 1.0018 1 1 1/8 1/8 .94 .7503 1.0015 40904 1.0007 1.3772 1 3/8 1 1/2 1/8 2.65 1.0004 1.3768 Locating Pin Lock Screws • Material: Low Carbon Steel • Finish: Black Oxide • Heat Treat: Case Hardened • Thread: 2A-UNC Locating Pin Liners Locating Pin Shoulder Liners • Material: 52100 Steel • Material: 52100 Steel Wt. Part (lbs) Number A B C 10 Pcs. 28501 .3129 .5017 1/2 .16 .3126 .5014 28502 .5005 .7518 3/4 .47 .5002 .7515 28503 .7506 1.0018 1 .94 .7503 1.0015 28504 1.0007 1.3772 1 3/8 2.80 1.0004 1.3768
