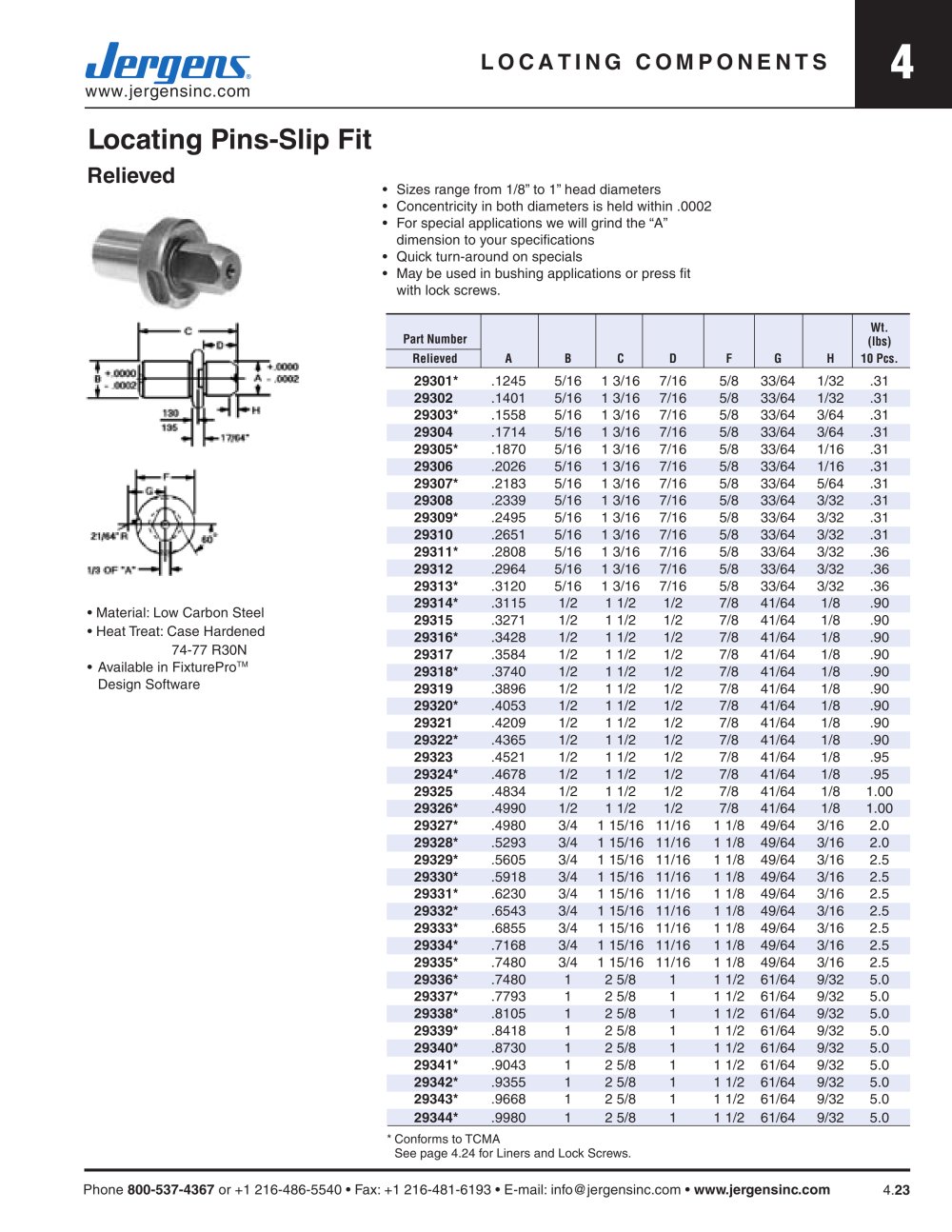

4 Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com LOCATING COMPONENTS www.jergensinc.com 4.23 Locating PinsSlip Fit • Material: Low Carbon Steel • Heat Treat: Case Hardened 74-77 R30N • Available in FixtureProTM Design Software Relieved • Sizes range from 1/8” to 1” head diameters • Concentricity in both diameters is held within .0002 • For special applications we will grind the “A” dimension to your specifications • Quick turn-around on specials • May be used in bushing applications or press fit with lock screws. * Conforms to TCMA See page 4.24 for Liners and Lock Screws. Wt. Part Number (lbs) Relieved A B C D F G H 10 Pcs. 29301* .1245 5/16 1 3/16 7/16 5/8 33/64 1/32 .31 29302 .1401 5/16 1 3/16 7/16 5/8 33/64 1/32 .31 29303* .1558 5/16 1 3/16 7/16 5/8 33/64 3/64 .31 29304 .1714 5/16 1 3/16 7/16 5/8 33/64 3/64 .31 29305* .1870 5/16 1 3/16 7/16 5/8 33/64 1/16 .31 29306 .2026 5/16 1 3/16 7/16 5/8 33/64 1/16 .31 29307* .2183 5/16 1 3/16 7/16 5/8 33/64 5/64 .31 29308 .2339 5/16 1 3/16 7/16 5/8 33/64 3/32 .31 29309* .2495 5/16 1 3/16 7/16 5/8 33/64 3/32 .31 29310 .2651 5/16 1 3/16 7/16 5/8 33/64 3/32 .31 29311* .2808 5/16 1 3/16 7/16 5/8 33/64 3/32 .36 29312 .2964 5/16 1 3/16 7/16 5/8 33/64 3/32 .36 29313* .3120 5/16 1 3/16 7/16 5/8 33/64 3/32 .36 29314* .3115 1/2 1 1/2 1/2 7/8 41/64 1/8 .90 29315 .3271 1/2 1 1/2 1/2 7/8 41/64 1/8 .90 29316* .3428 1/2 1 1/2 1/2 7/8 41/64 1/8 .90 29317 .3584 1/2 1 1/2 1/2 7/8 41/64 1/8 .90 29318* .3740 1/2 1 1/2 1/2 7/8 41/64 1/8 .90 29319 .3896 1/2 1 1/2 1/2 7/8 41/64 1/8 .90 29320* .4053 1/2 1 1/2 1/2 7/8 41/64 1/8 .90 29321 .4209 1/2 1 1/2 1/2 7/8 41/64 1/8 .90 29322* .4365 1/2 1 1/2 1/2 7/8 41/64 1/8 .90 29323 .4521 1/2 1 1/2 1/2 7/8 41/64 1/8 .95 29324* .4678 1/2 1 1/2 1/2 7/8 41/64 1/8 .95 29325 .4834 1/2 1 1/2 1/2 7/8 41/64 1/8 1.00 29326* .4990 1/2 1 1/2 1/2 7/8 41/64 1/8 1.00 29327* .4980 3/4 1 15/16 11/16 1 1/8 49/64 3/16 2.0 29328* .5293 3/4 1 15/16 11/16 1 1/8 49/64 3/16 2.0 29329* .5605 3/4 1 15/16 11/16 1 1/8 49/64 3/16 2.5 29330* .5918 3/4 1 15/16 11/16 1 1/8 49/64 3/16 2.5 29331* .6230 3/4 1 15/16 11/16 1 1/8 49/64 3/16 2.5 29332* .6543 3/4 1 15/16 11/16 1 1/8 49/64 3/16 2.5 29333* .6855 3/4 1 15/16 11/16 1 1/8 49/64 3/16 2.5 29334* .7168 3/4 1 15/16 11/16 1 1/8 49/64 3/16 2.5 29335* .7480 3/4 1 15/16 11/16 1 1/8 49/64 3/16 2.5 29336* .7480 1 2 5/8 1 1 1/2 61/64 9/32 5.0 29337* .7793 1 2 5/8 1 1 1/2 61/64 9/32 5.0 29338* .8105 1 2 5/8 1 1 1/2 61/64 9/32 5.0 29339* .8418 1 2 5/8 1 1 1/2 61/64 9/32 5.0 29340* .8730 1 2 5/8 1 1 1/2 61/64 9/32 5.0 29341* .9043 1 2 5/8 1 1 1/2 61/64 9/32 5.0 29342* .9355 1 2 5/8 1 1 1/2 61/64 9/32 5.0 29343* .9668 1 2 5/8 1 1 1/2 61/64 9/32 5.0 29344* .9980 1 2 5/8 1 1 1/2 61/64 9/32 5.0
