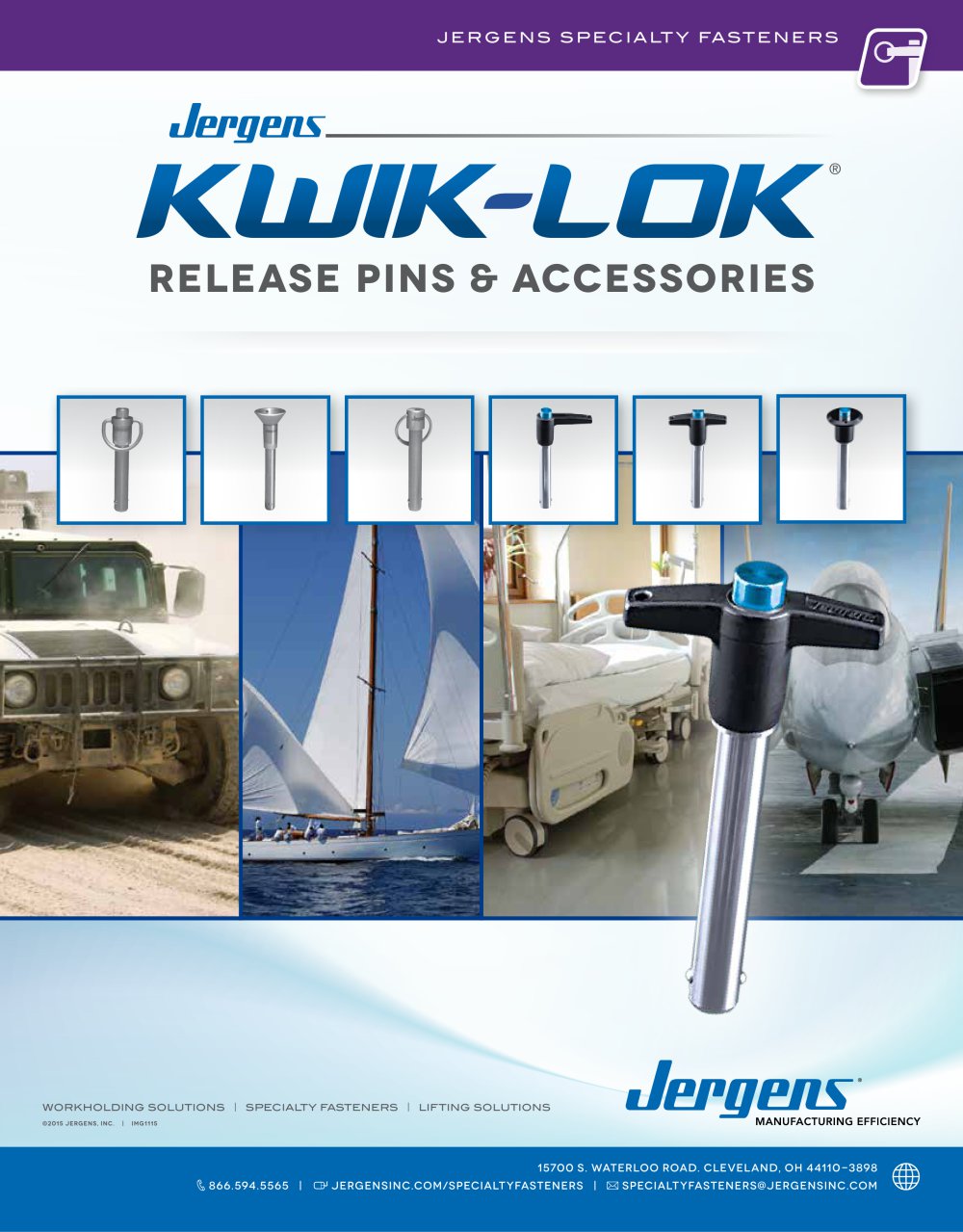

Jergens Kwik-Lok Pins - 1

S P E C I A LT Y P I N& ACCESSORIES RELEASE PINS S & FA S T E N E R S WORKHOLDING SOLUTIONS | SPECIALTY FASTENERS | LIFTING SOLUTIONS ©2015 jergens, inc. 15700 S. Waterloo Road. Cleveland, OH 44110-3898 866.594.5565 |

Open the catalog to page 1
Jergens Kwik-Lok Pins - 2

Jergenswww.jergensinc.com Kuiik-lok SPECIALTY PINS & FASTENERS Quality Control for Safety’s Sake Our quality control procedures define the entire manufacturing process and provide complete traceability from raw materials, tested in our metallurgical lab, to finished product. Our state-of-the-art, 110,000 square foot facility is ISO 9001:2008 rated, QSLM approved, MS, NaS, DFARS and RoHS compliant parts available. RuggedAmerican Jergens, Inc. is a proud supplier to leading companies in the following industries: • Transportation • Material Handling • Military/Aviation • Recreation MadeQuality...

Open the catalog to page 2
Jergens Kwik-Lok Pins - 4

Kwik-Lok Pins – Selection and Ordering ® 1. Choose Handle Shape and Style: T, L, or Button Heavy Duty T, L, or Button Ring Handle, Lifting Ring, or Recessed Button Double Acting (Push/Pull) T or L Aluminum Stainless Steel Stainless Steel Stainless Steel 2. Select Pin Body Material • 7-4-PH heat treated Stainless Steel for highest strength, corrosion and scratch resistance 1 • lloy Steel heat treated and cadmium plating to military specifications A *Grip Length is measured to edge of locking ball Standard Grip Lengths: 1/2"– 6", 10 –100 mm Special Grip Lengths available on request 3. Specify...

Open the catalog to page 4
Jergens Kwik-Lok Pins - 5

Jepgeits. KWIK-LOK® PINS SPECIALTY FASTENERS GROUP Recessed Button Handle Specifications - Inch DIA Recessed Button Handle Specifications - Metric KWIK-LOK® PINS Contact customer service for other sizes. Phone: 866-KWIK-LOK (594-5565) | Fax: +1 216-481-6193 | E-mail: fasteners@jergensinc.com | www.jergensinc.com

Open the catalog to page 5
Jergens Kwik-Lok Pins - 6

T-Handle Kwik-Lok® Pin MS17985, NAS1333-NAS1343 A2=Aluminum T Handle The T-Handle Kwik-Lok® Pin provides a firm, even grip for smooth comfortable operation. Handle is black cast aluminum and the button is blue anodized aluminum. Pin body: Heat Treated 17-4 PH Stainless Steel. Includes hole and split ring for easy attachment of optional lanyard. Jergens, Inc. | 15700 S. Waterloo Road | Cleveland, Ohio 44110-3898 USA

Open the catalog to page 6
Jergens Kwik-Lok Pins - 7

Jepgeits. KWIK-LOK® PINS SPECIALTY FASTENERS GROUP T-Handle - InchAluminum Handle, Body - High Strength Stainless Steel, 17-4 PH Heat Treated 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1 T-Handle - MetricAluminum Handle, Body - High Strength Stainless Steel, 17-4 PH Heat Treated Pin Dia KWIK-LOK® PINS Contact customer service for other sizes. Phone: 866-KWIK-LOK (594-5565) | Fax: +1 216-481-6193 | E-mail: fasteners@jergensinc.com | www.jergensinc.com

Open the catalog to page 7
Jergens Kwik-Lok Pins - 8

KWIK-LOK® PINS Jepgens. SPECIALTY FASTENERS GROUP The L-Handle Kwik-Lok* Pin provides a firm grip for applications where a T-Handle will not fit. Handle is black cast aluminum and the button is blue anodized aluminum. Pin body available in: Heat Treated 17-4 PH Stainless Steel. Includes hole and split ring for easy attachment of optional lanyard. KWIK-LOK® PINS L-Handle Specifications - Inch DIA L-Handle Specifications - Metric 5MM 6MM 8MM 10MM 12MM 16MM 20MM 25MM Jergens, Inc. | 15700 S. Waterloo Road | Cleveland, Ohio 44110-3898 USA

Open the catalog to page 8
Jergens Kwik-Lok Pins - 9

Jepgeits. KWIK-LOK® PINS SPECIALTY FASTENERS GROUP L-Handle - InchAluminum Handle, Body - High Strength Stainless Steel, 17-4 PH Heat Treated 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1 L-Handle - MetricAluminum Handle, Body - High Strength Stainless Steel, 17-4 PH Heat Treated Pin Dia KWIK-LOK® PINS Contact customer service for other sizes. Phone: 866-KWIK-LOK (594-5565) | Fax: +1 216-481-6193 | E-mail: fasteners@jergensinc.com | www.jergensinc.com

Open the catalog to page 9
Jergens Kwik-Lok Pins - 10

Button Handle Kwik-Lok Pin MS17984, NAS 1333-1343 ® • The Button Handle Kwik-Lok Pin is ideal for applications that have limited space around the handle. • Heavy Duty solid handle in 303 series stainless steel provides additional impact resistance • Light weight black anodized ­ luminum a handle with blue anodized aluminum button. • Includes hole and split ring for easy a ­ ttachment of optional lanyard. • Pin body available in:Heat Treated 17-4 PH Stainless Steel. • All stainless steel construction provides additional corrosion resistance • Includes hole and split ring for easy a ­...

Open the catalog to page 10
Jergens Kwik-Lok Pins - 11

Button Handle - InchAluminum Button, Heat Treated Stainless Steel 17-4 PH Body Pin Dia Stainless Steel Button, Heat Treated Stainless Steel 17-4 PH Body Pin Dia Contact customer service for other sizes. Phone: 866-KWIK-LOK (594-5565) | Fax: +1 216-481-6193 | E-mail: fasteners@jergensinc.com | www.jergensinc.com

Open the catalog to page 11
Jergens Kwik-Lok Pins - 12

• The Ring-Handle Kwik-Lok Pin is designed for applications which require small clearance area around the pin. ® • Stainless steel handle for tough environment with blue anodized aluminum button (steel shanks), or stainless button (stainless steel shanks). • Pin body: Heat Treated 17-4 PH Stainless Steel. • Ring allows for easy attachment of optional lanyard. Ring-Handle Specifications – Inch A MIN Ring-Handle Specifications – Metric DIA Jergens, Inc. | 15700 S. Waterloo Road | Cleveland, Ohio 4

Open the catalog to page 12
Jergens Kwik-Lok Pins - 13

Ring-Handle - InchStainless Steel - High Strength Stainless Steel, 17-4 PH Heat Treated 3/16 1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1 Stainless Steel - High Strength Stainless Steel, 17-4 PH Heat Treated Pin Dia KWIK-LOK® PINS Contact customer service for other sizes. Phone: 866-KWIK-LOK (594-5565) | Fax: +1 216-481-6193 | E-mail: fasteners@jergensinc.com | www.jergensinc.com

Open the catalog to page 13
Jergens Kwik-Lok Pins - 14

Heavy Duty T&L Handle Pins 17985, 17986, NAS1333-NAS1343 C2=Stainless T Handle C5=Stainless L Handle • Also known as Ground Handling Pins • Heavy Duty welded handle provides ­additional impact resistance T-Handle Style • Includes split ring for easy attachment of ­ optional lanyard. L-Handle Style • All stainless steel handle and button provide additional corrosion resistance ­ • Body is made from high Strength Stainless Steel, 17-4 PH heat treated. • Meets or exceeds NASM 23460 specifications • May be ordered with 4 locking balls for additional locking element tensile strength Heavy Duty...

Open the catalog to page 14
