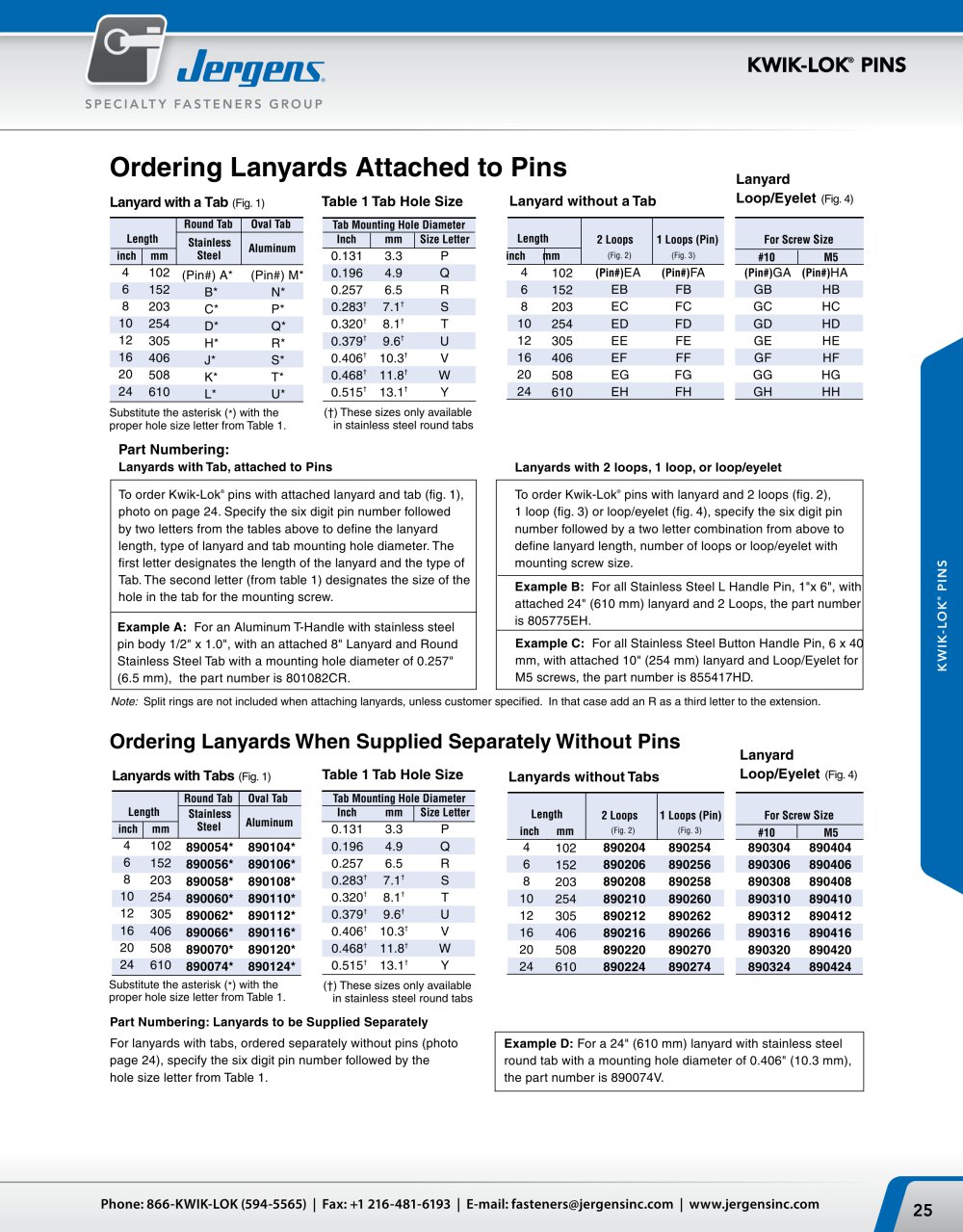

Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com KWIK-LOK™ P I N S www.jergensinc.com 9.25 9 Heat Treatment: • 17-4 PH Stainless Steel: Condition H-900, Rockwell C40 Min per MIL-H-6875 • 4130 Alloy Steel: Rockwell C36-40 Surface Treatment: • CRES Parts: Passivate per AMS-QQ-P-35 • Alloy Steel Parts: Cadmium plate per QQ-P-416, Type II, Class 2 • Aluminum Alloy Parts: Anodize per MIL-A-8625 Type I or II per MIL-C-5541 Class 1A • Aluminum Handles: Color Black Material Specifications Kwik-Lok™ Pin Component Part Material Bodies (Shank) CRES 17-4 PH Stainless Steel Alloy Steel 4130 Balls CRES 440C Stainless Steel* Buttons CRES 303 Stainless Steel Aluminum Alloy 2024 Springs CRES 302 Stainless Steel Handles T & L Handles Aluminum (380) Casting Button Handles Aluminum Alloy 2024 Ring Handles CRES 303 Stainless Steel Heavy Duty T & L CRES 303 Stainless Steel Heavy Duty Button Handle CRES 303 Stainless Steel Recessed Button Handle CRES 300 Series Stainless Steel Collar CRES 303 or 304 Stainless Steel Kwik-Lok™ Lifting Pin Component Part Material Bodies (Shank) CRES 17-4 PH Stainless Steel Balls CRES 440C Stainless Steel* Buttons CRES 303 Stainless Steel Lift Ring Forged 17-4 PH Stainless Steel Springs CRES 302 Stainless Steel Detent Pins Component Part Material Bodies (Shank) CRES 303 Stainless Steel Alloy Steel 4130 Balls CRES 440C Stainless Steel* Springs CRES 302 Stainless Steel Head CRES 303 Stainless Steel Alloy Steel 4130 Jergens Kwik-Lok™ Pins are designed and manufactured to meet or exceed these standards. * Locking Balls also available in 302 Stainless Steel by special order. Actual locking element tensile strength is reduced by lower strength alloys. Ordering special pins with 4 balls will increase locking element tensile strength above NAS functionality test requirements.
