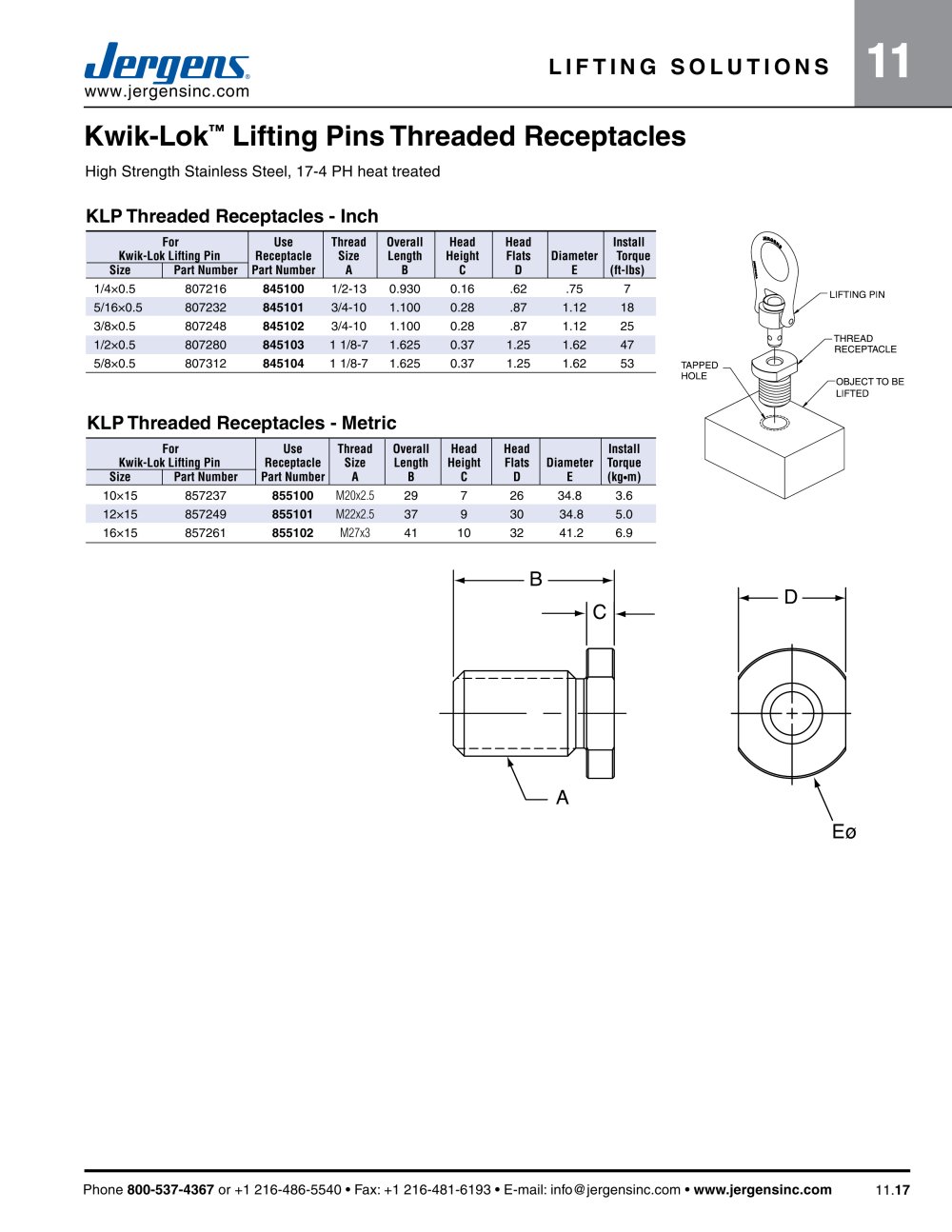

..............................................Threaded Receptacles
......................................................................................................
For Use Thread Overall Head Head Install
Kwik-Lok Lifting Pin Receptacle Size Length Height Flats Diameter Torque
Size Part Number Part Number A B C D E (ft-lbs)
1/4×0.5 807216 ............ 1/2-13 0.930 0.16 .62 .75 7
5/16×0.5 807232 ............ 3/4-10 1.100 0.28 .87 1.12 18
3/8×0.5 807248 ............ 3/4-10 1.100 0.28 .87 1.12 25
1/2×0.5 807280 ............ 1 1/8-7 1.625 0.37 1.25 1.62 47
5/8×0.5 807312 ............ 1 1/8-7 1.625 0.37 1.25 1.62 53
For Use Thread Overall Head Head Install
Kwik-Lok Lifting Pin Receptacle Size Length Height Flats Diameter Torque
Size Part Number Part Number A B C D E (kg..m)
10×15 857237 ............ M20x2.5 29 7 26 34.8 3.6
12×15 857249 ............ M22x2.5 37 9 30 34.8 5.0
16×15 857261 ............ M27x3 41 10 32 41.2 6.9
