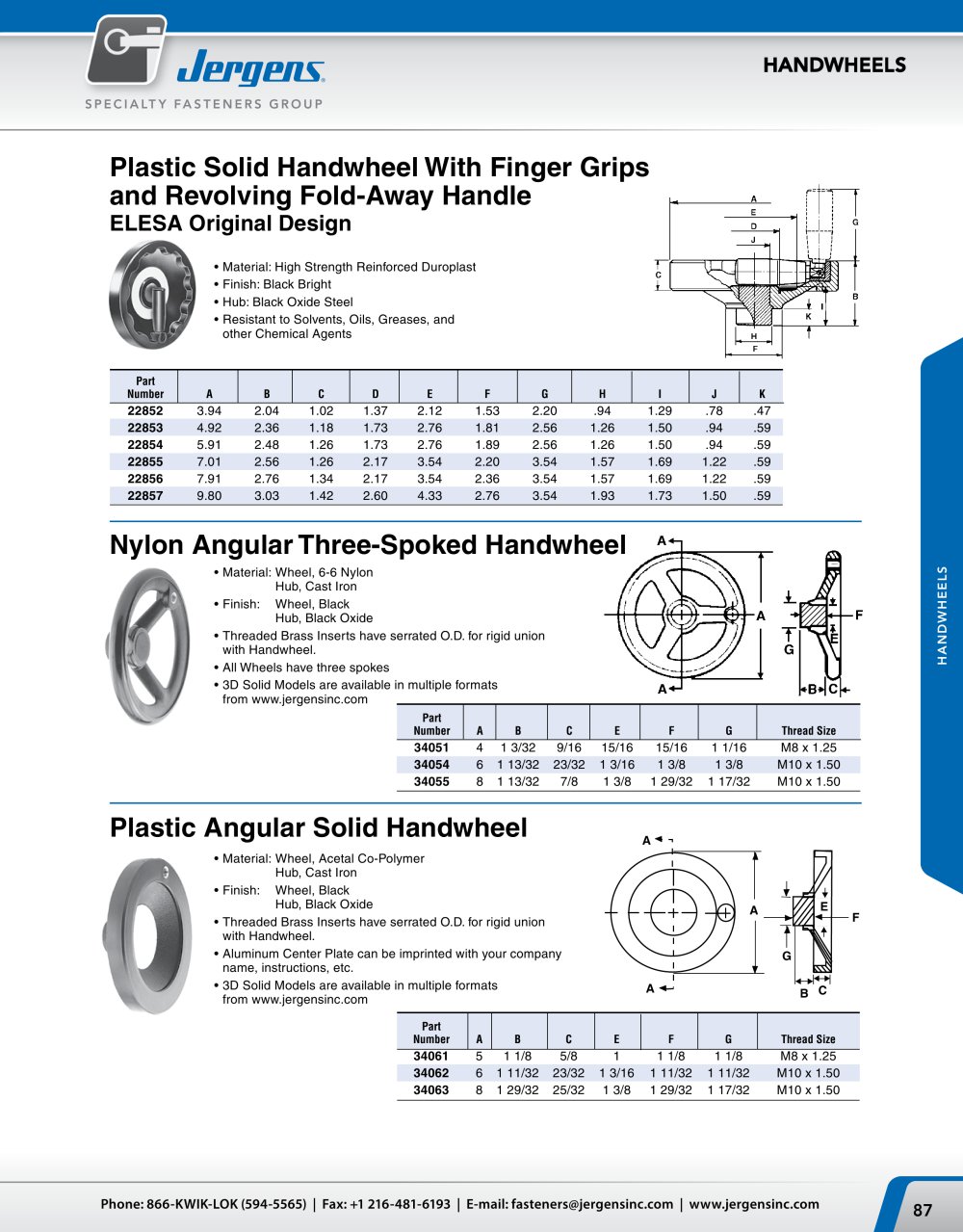

HANDWHEELS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.9 Plastic Angular Solid Handwheel Nylon Angular Three Spoked Handwheel • Material: Wheel, 6-6 Nylon Hub, Cast Iron • Finish: Wheel, Black Hub, Black Oxide • Threaded Brass Inserts have serrated O.D. for rigid union with Handwheel. • All Wheels have three spokes • Available in FixturePro™ Design Software A A F E B C G A Part Number A B C E F G Thread Size 34051 4 1 3/32 9/16 15/16 15/16 1 1/16 M8 x 1.25 34054 6 1 13/32 23/32 1 3/16 1 3/8 1 3/8 M10 x 1.50 34055 8 1 13/32 7/8 1 3/8 1 29/32 1 17/32 M10 x 1.50 • Material: Wheel, Acetal Co-Polymer Hub, Cast Iron • Finish: Wheel, Black Hub, Black Oxide • Threaded Brass Inserts have serrated O.D. for rigid union with Handwheel. • Aluminum Center Plate can be imprinted with your company name, instructions, etc. • Available in FixturePro™ Design Software Part Number A B C E F G Thread Size 34061 5 1 1/8 5/8 1 1 1/8 1 1/8 M8 x 1.25 34062 6 1 11/32 23/32 1 3/16 1 11/32 1 11/32 M10 x 1.50 34063 8 1 29/32 25/32 1 3/8 1 29/32 1 17/32 M10 x 1.50 Plastic Solid Handwheel With Finger Grips and Revolving Fold Away Handle ELESA Original Design • Material: High Strength Reinforced Duroplast • Finish: Black Bright • Hub: Black Oxide Steel • Resistant to Solvents, Oils, Greases, and otherChemical Agents Part Number A B C D E F G H I J K 22852 3.94 2.04 1.02 1.37 2.12 1.53 2.20 .94 1.29 .78 .47 22853 4.92 2.36 1.18 1.73 2.76 1.81 2.56 1.26 1.50 .94 .59 22854 5.91 2.48 1.26 1.73 2.76 1.89 2.56 1.26 1.50 .94 .59 22855 7.01 2.56 1.26 2.17 3.54 2.20 3.54 1.57 1.69 1.22 .59 22856 7.91 2.76 1.34 2.17 3.54 2.36 3.54 1.57 1.69 1.22 .59 22857 8.80 3.03 1.42 2.60 4.33 2.76 3.54 1.93 1.73 1.50 .59
