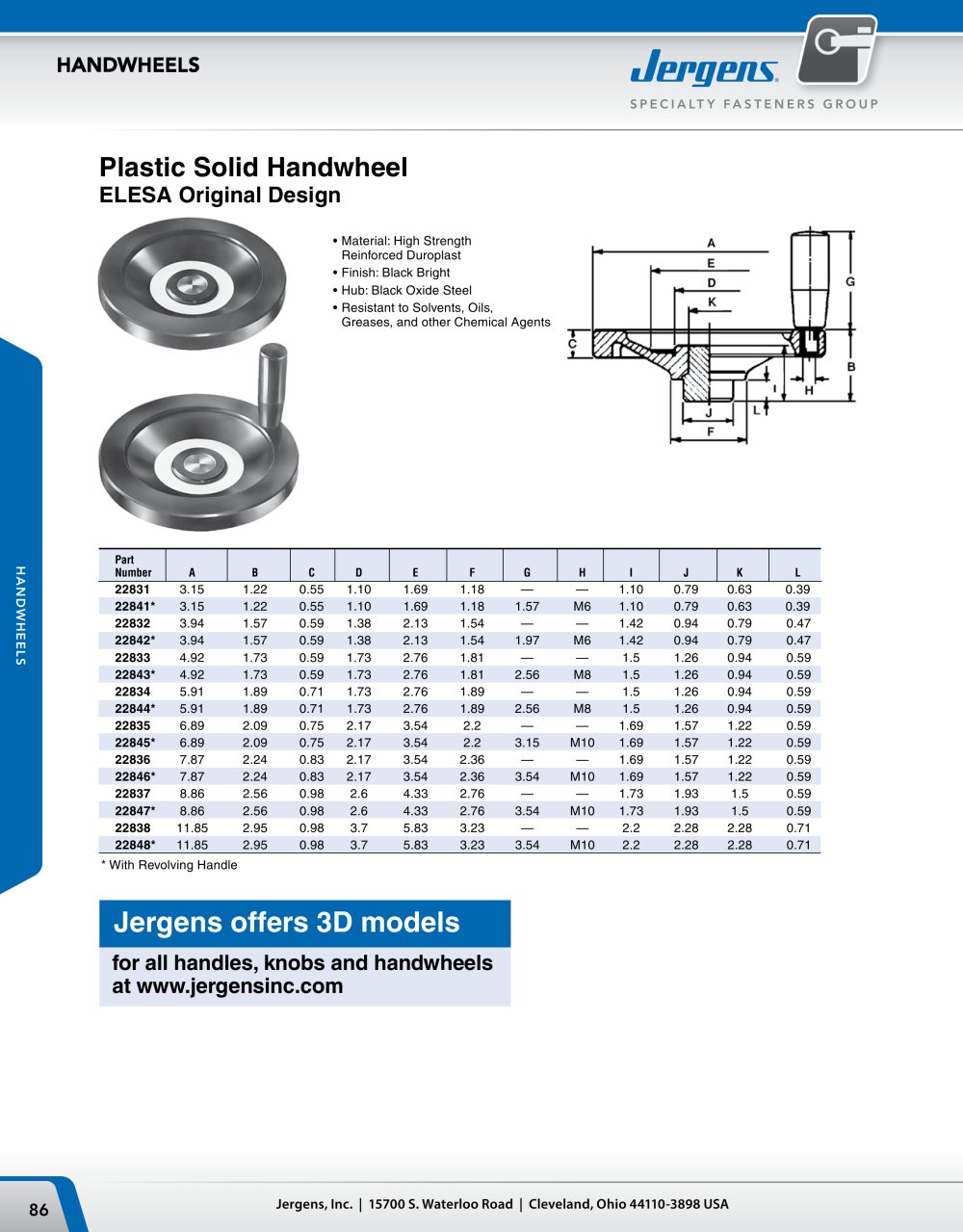

8 HANDWHEELS www.jergensinc.com 8.8 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Plastic Solid Handwheel ELESA Original Design • Material: High Strength Reinforced Duroplast • Finish: Black Bright • Hub: Black Oxide Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents Part Number A B C D E F G H I J K L 22831 3.15 1.22 0.55 1.10 1.69 1.18 - - 1.10 0.79 0.63 0.39 22841* 3.15 1.22 0.55 1.10 1.69 1.18 1.57 M6 1.10 0.79 0.63 0.39 22832 3.94 1.57 0.59 1.38 2.13 1.54 - - 1.42 0.94 0.79 0.47 22842* 3.94 1.57 0.59 1.38 2.13 1.54 1.97 M6 1.42 0.94 0.79 0.47 22833 4.92 1.73 0.59 1.73 2.76 1.81 - - 1.5 1.26 0.94 0.59 22843* 4.92 1.73 0.59 1.73 2.76 1.81 2.56 M8 1.5 1.26 0.94 0.59 22834 5.91 1.89 0.71 1.73 2.76 1.89 - - 1.5 1.26 0.94 0.59 22844* 5.91 1.89 0.71 1.73 2.76 1.89 2.56 M8 1.5 1.26 0.94 0.59 22835 6.89 2.09 0.75 2.17 3.54 2.2 - - 1.69 1.57 1.22 0.59 22845* 6.89 2.09 0.75 2.17 3.54 2.2 3.15 M10 1.69 1.57 1.22 0.59 22836 7.87 2.24 0.83 2.17 3.54 2.36 - - 1.69 1.57 1.22 0.59 22846* 7.87 2.24 0.83 2.17 3.54 2.36 3.54 M10 1.69 1.57 1.22 0.59 22837 8.8 2.56 0.98 2.6 4.33 2.76 - - 1.73 1.93 1.5 0.59 22847* 8.8 2.56 0.98 2.6 4.33 2.76 3.54 M10 1.73 1.93 1.5 0.59 22838 11.85 2.95 0.98 3.7 5.83 3.23 - - 2.2 2.28 2.28 0.71 22848* 11.85 2.95 0.98 3.7 5.83 3.23 3.54 M10 2.2 2.28 2.28 0.71 * With Revolving Handle for all handles, knobs and handwheels at www.jergensinc.com Jergens offers 3D models
