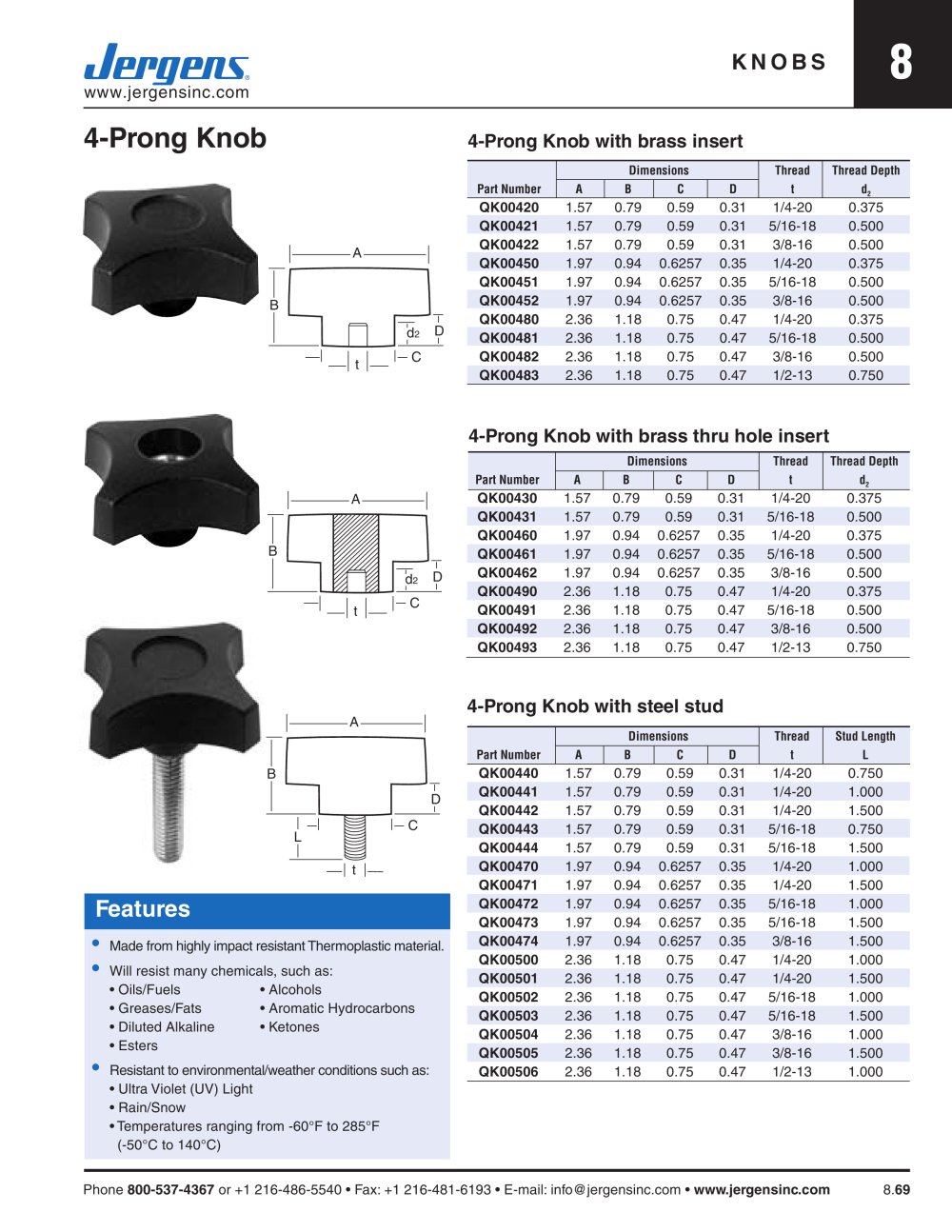

KNOBS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.69 B D A t C d2 4-Prong Knob 4-Prong Knob with brass insert 4-Prong Knob with brass thru hole insert 4-Prong Knob with steel stud B D A C L t d2 B D A C t Dimensions Thread Thread Depth Part Number A B C D t d2 QK00420 1.57 0.79 0.59 0.31 1/4-20 0.375 QK00421 1.57 0.79 0.59 0.31 5/16-18 0.500 QK00422 1.57 0.79 0.59 0.31 3/8-16 0.500 QK00450 1.97 0.94 0.6257 0.35 1/4-20 0.375 QK00451 1.97 0.94 0.6257 0.35 5/16-18 0.500 QK00452 1.97 0.94 0.6257 0.35 3/8-16 0.500 QK00480 2.36 1.18 0.75 0.47 1/4-20 0.375 QK00481 2.36 1.18 0.75 0.47 5/16-18 0.500 QK00482 2.36 1.18 0.75 0.47 3/8-16 0.500 QK00483 2.36 1.18 0.75 0.47 1/2-13 0.750 Dimensions Thread Thread Depth Part Number A B C D t d2 QK00430 1.57 0.79 0.59 0.31 1/4-20 0.375 QK00431 1.57 0.79 0.59 0.31 5/16-18 0.500 QK00460 1.97 0.94 0.6257 0.35 1/4-20 0.375 QK00461 1.97 0.94 0.6257 0.35 5/16-18 0.500 QK00462 1.97 0.94 0.6257 0.35 3/8-16 0.500 QK00490 2.36 1.18 0.75 0.47 1/4-20 0.375 QK00491 2.36 1.18 0.75 0.47 5/16-18 0.500 QK00492 2.36 1.18 0.75 0.47 3/8-16 0.500 QK00493 2.36 1.18 0.75 0.47 1/2-13 0.750 Dimensions Thread Stud Length Part Number A B C D t L QK00440 1.57 0.79 0.59 0.31 1/4-20 0.750 QK00441 1.57 0.79 0.59 0.31 1/4-20 1.000 QK00442 1.57 0.79 0.59 0.31 1/4-20 1.500 QK00443 1.57 0.79 0.59 0.31 5/16-18 0.750 QK00444 1.57 0.79 0.59 0.31 5/16-18 1.500 QK00470 1.97 0.94 0.6257 0.35 1/4-20 1.000 QK00471 1.97 0.94 0.6257 0.35 1/4-20 1.500 QK00472 1.97 0.94 0.6257 0.35 5/16-18 1.000 QK00473 1.97 0.94 0.6257 0.35 5/16-18 1.500 QK00474 1.97 0.94 0.6257 0.35 3/8-16 1.500 QK00500 2.36 1.18 0.75 0.47 1/4-20 1.000 QK00501 2.36 1.18 0.75 0.47 1/4-20 1.500 QK00502 2.36 1.18 0.75 0.47 5/16-18 1.000 QK00503 2.36 1.18 0.75 0.47 5/16-18 1.500 QK00504 2.36 1.18 0.75 0.47 3/8-16 1.000 QK00505 2.36 1.18 0.75 0.47 3/8-16 1.500 QK00506 2.36 1.18 0.75 0.47 1/2-13 1.000 • Made from highly impact resistant Thermoplastic material. • Will resist many chemicals, such as: • Oils/Fuels • Alcohols • Greases/Fats • Aromatic Hydrocarbons • Diluted Alkaline • Ketones • Esters • Resistant to environmental/weather conditions such as: • Ultra Violet (UV) Light • Rain/Snow • Temperatures ranging from -60°F to 285°F (-50°C to 140°C) Features
