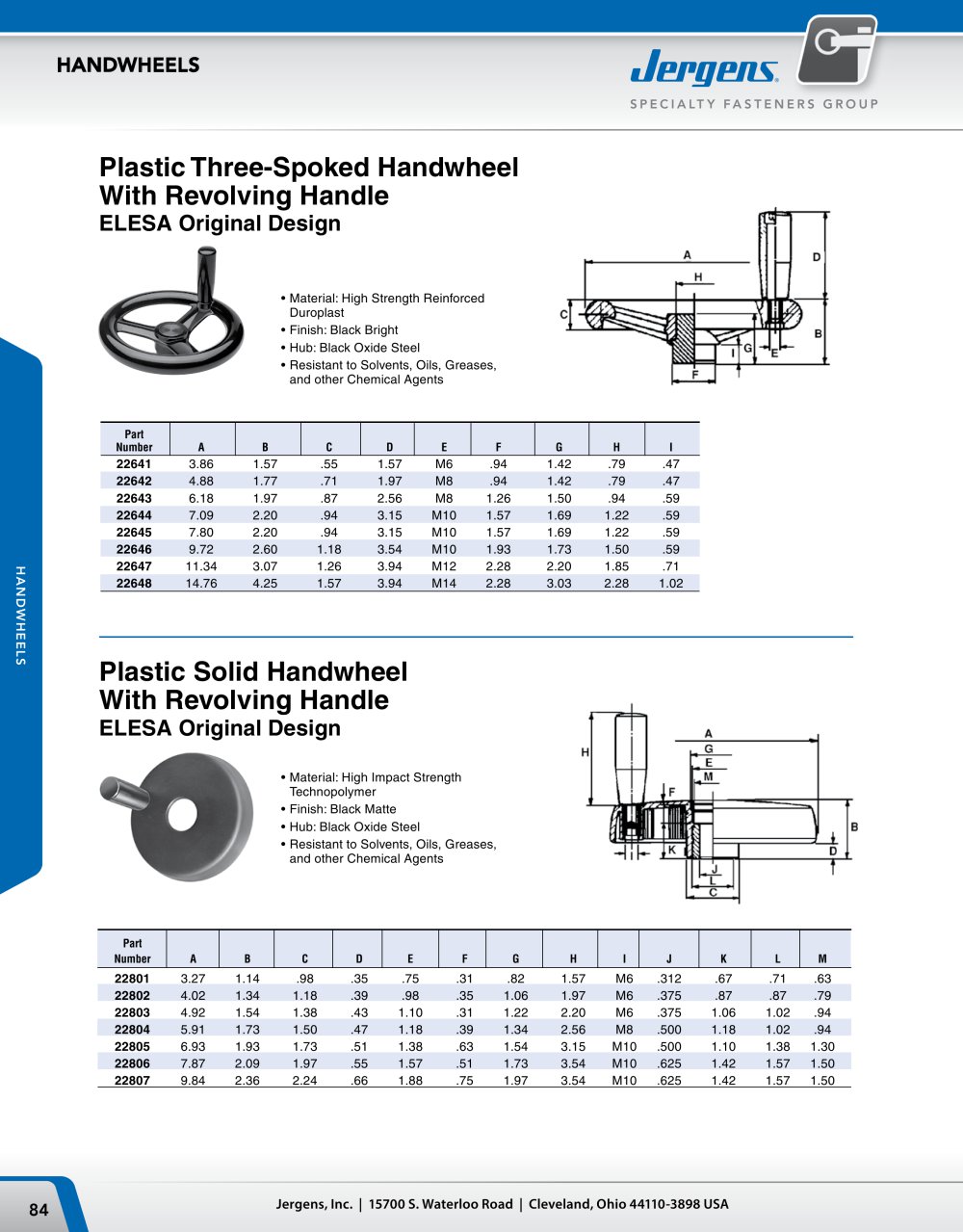

8 HANDWHEELS www.jergensinc.com 8.6 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Plastic Three Spoked Handwheel With Revolving Handle ELESA Original Design • Material: High Strength Reinforced Duroplast • Finish: Black Bright • Hub: Black Oxide Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents Part Number A B C D E F G H I 22641 3.86 1.57 .55 1.57 M6 .94 1.42 .79 .47 22642 4.88 1.77 .71 1.97 M8 .94 1.42 .79 .47 22643 6.18 1.97 .87 2.56 M8 1.26 1.50 .94 .59 22644 7.09 2.20 .94 3.15 M10 1.57 1.69 1.22 .59 22645 7.80 2.20 .94 3.15 M10 1.57 1.69 1.22 .59 22646 8.72 2.60 1.18 3.54 M10 1.93 1.73 1.50 .59 22647 11.34 3.07 1.26 3.94 M12 2.28 2.20 1.85 .71 22648 14.76 4.25 1.57 3.94 M14 2.28 3.03 2.28 1.02 Plastic Solid Handwheel With Revolving Handle ELESA Original Design • Material: High Impact Strength Technopolymer • Finish: Black Matte • Hub: Black Oxide Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents Part Number A B C D E F G H I J K L M 22801 3.27 1.14 .98 .35 .75 .31 .82 1.57 M6 .312 .67 .71 .63 22802 4.02 1.34 1.18 .39 .98 .35 1.06 1.97 M6 .375 .87 .87 .79 22803 4.92 1.54 1.38 .43 1.10 .31 1.22 2.20 M6 .375 1.06 1.02 .94 22804 5.91 1.73 1.50 .47 1.18 .39 1.34 2.56 M8 .500 1.18 1.02 .94 22805 6.93 1.93 1.73 .51 1.38 .63 1.54 3.15 M10 .500 1.10 1.38 1.30 22806 7.87 2.09 1.97 .55 1.57 .51 1.73 3.54 M10 .625 1.42 1.57 1.50 22807 8.84 2.36 2.24 .66 1.88 .75 1.97 3.54 M10 .625 1.42 1.57 1.50
