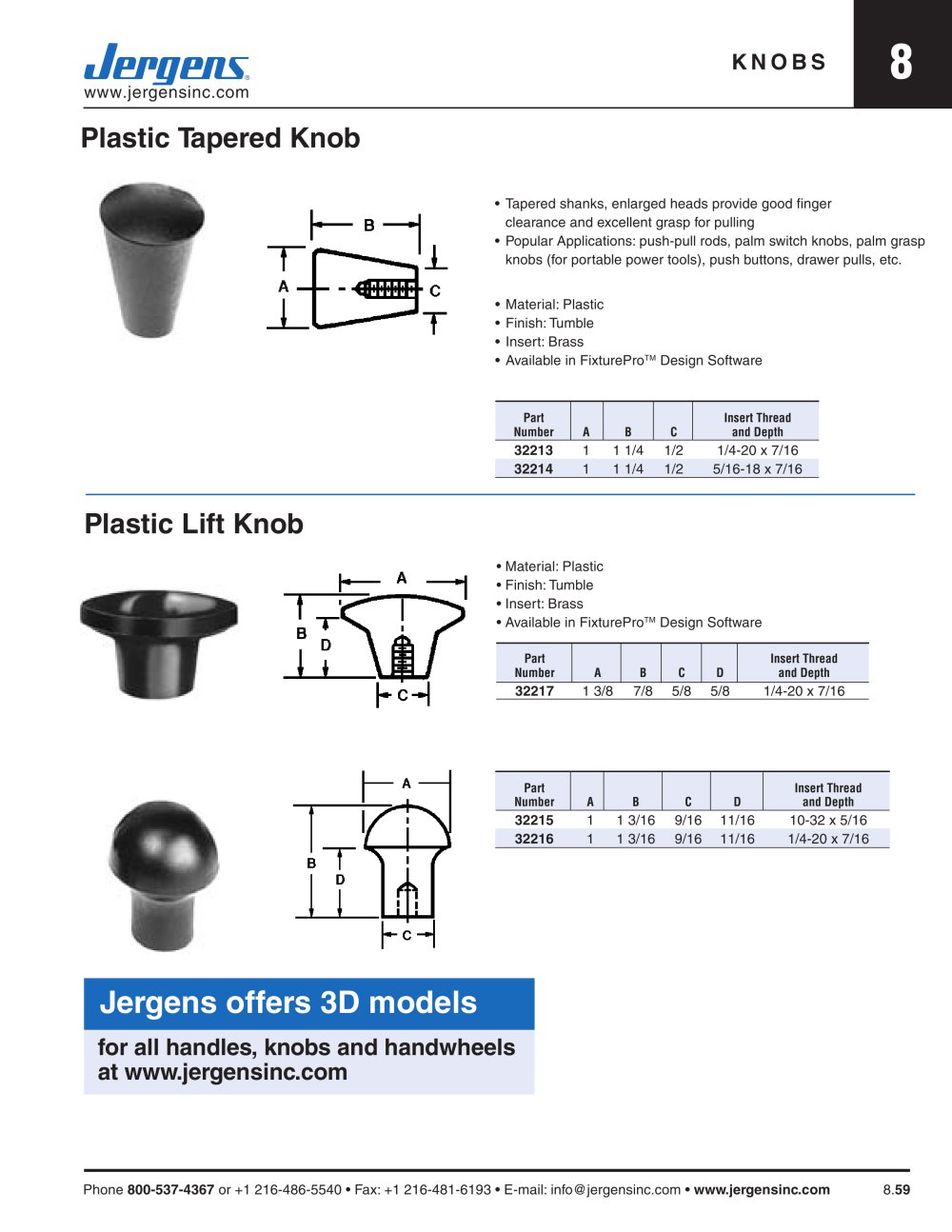

KNOBS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.59 Plastic Tapered Knob Plastic Lift Knob • Tapered shanks, enlarged heads provide good finger clearance and excellent grasp for pulling • Popular Applications: push-pull rods, palm switch knobs, palm grasp knobs (for portable power tools), push buttons, drawer pulls, etc. Part Insert Thread Number A B C D and Depth 32215 1 1 3/16 9/16 11/16 10-32 x 5/16 32216 1 1 3/16 9/16 11/16 1/4-20 x 7/16 Part Insert Thread Number A B C and Depth 32213 1 1 1/4 1/2 1/4-20 x 7/16 32214 1 1 1/4 1/2 5/16-18 x 7/16 • Material: Plastic • Finish: Tumble • Insert: Brass • Available in FixtureProTM Design Software Part Insert Thread Number A B C D and Depth 32217 1 3/8 7/8 5/8 5/8 1/4-20 x 7/16 • Material: Plastic • Finish: Tumble • Insert: Brass • Available in FixtureProTM Design Software for all handles, knobs and handwheels at www.jergensinc.com Jergens offers 3D models
