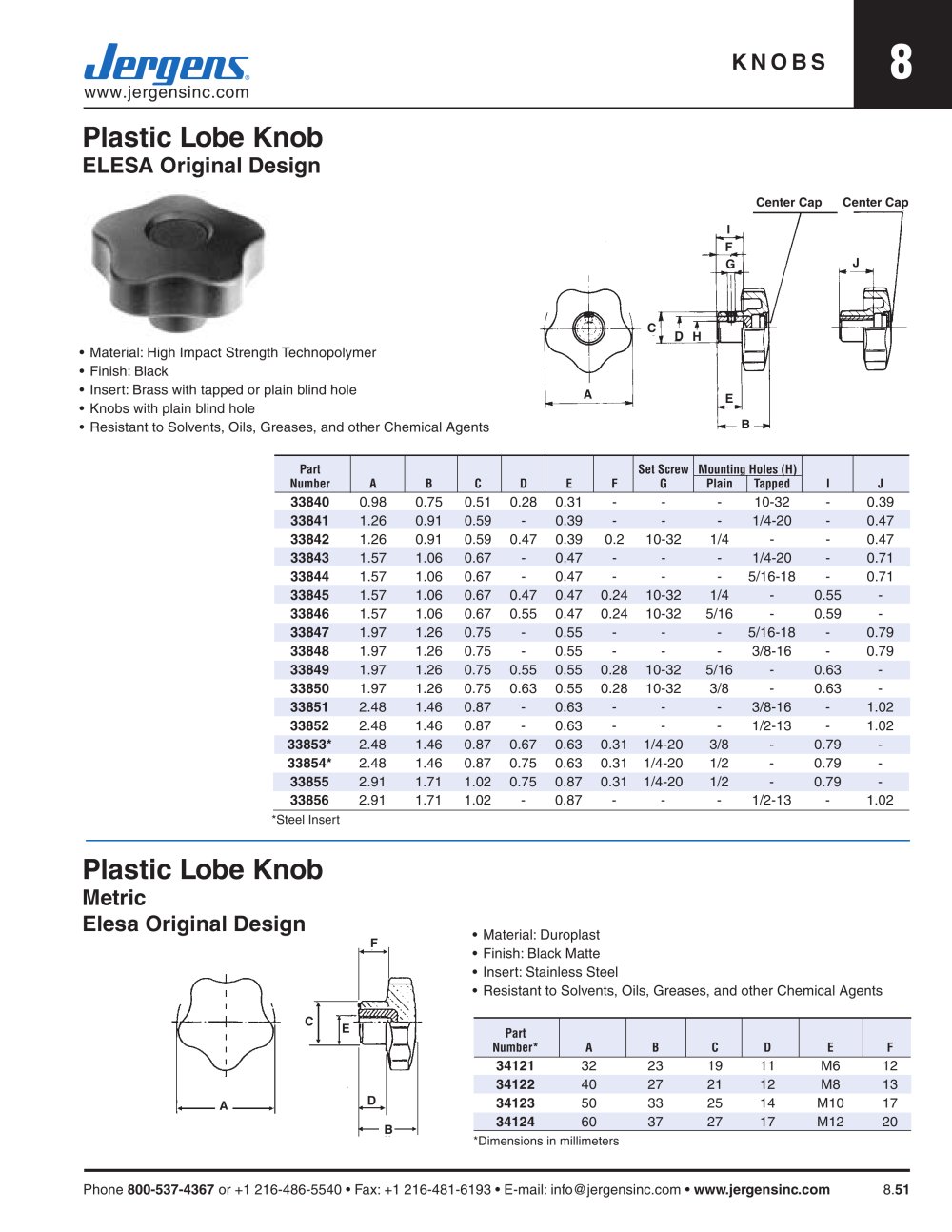

KNOBS 8 www.jergensinc.com Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.51 • Material: High Impact Strength Technopolymer • Finish: Black • Insert: Brass with tapped or plain blind hole • Knobs with plain blind hole • Resistant to Solvents, Oils, Greases, and other Chemical Agents Part Number* A B C D E F 34121 32 23 19 11 M6 12 34122 40 27 21 12 M8 13 34123 50 33 25 14 M10 17 34124 60 37 27 17 M12 20 D C E F H G I Center Cap Center Cap J A Plastic Lobe Knob ELESA Original Design Plastic Lobe Knob Metric Elesa Original Design B C E D F A • Material: Duroplast • Finish: Black Matte • Insert: Stainless Steel • Resistant to Solvents, Oils, Greases, and other Chemical Agents *Dimensions in millimeters Part Set Screw Mounting Holes (H) Number A B C D E F G Plain Tapped I J 33840 0.98 0.75 0.51 0.28 0.31 - - - 10-32 - 0.39 33841 1.26 0.91 0.59 - 0.39 - - - 1/4-20 - 0.47 33842 1.26 0.91 0.59 0.47 0.39 0.2 10-32 1/4 - - 0.47 33843 1.57 1.06 0.67 - 0.47 - - - 1/4-20 - 0.71 33844 1.57 1.06 0.67 - 0.47 - - - 5/16-18 - 0.71 33845 1.57 1.06 0.67 0.47 0.47 0.24 10-32 1/4 - 0.55 - 33846 1.57 1.06 0.67 0.55 0.47 0.24 10-32 5/16 - 0.59 - 33847 1.97 1.26 0.75 - 0.55 - - - 5/16-18 - 0.79 33848 1.97 1.26 0.75 - 0.55 - - - 3/8-16 - 0.79 33849 1.97 1.26 0.75 0.55 0.55 0.28 10-32 5/16 - 0.63 - 33850 1.97 1.26 0.75 0.63 0.55 0.28 10-32 3/8 - 0.63 - 33851 2.48 1.46 0.87 - 0.63 - - - 3/8-16 - 1.02 33852 2.48 1.46 0.87 - 0.63 - - - 1/2-13 - 1.02 33853* 2.48 1.46 0.87 0.67 0.63 0.31 1/4-20 3/8 - 0.79 - 33854* 2.48 1.46 0.87 0.75 0.63 0.31 1/4-20 1/2 - 0.79 - 33855 2.91 1.71 1.02 0.75 0.87 0.31 1/4-20 1/2 - 0.79 - 33856 2.91 1.71 1.02 - 0.87 - - - 1/2-13 - 1.02 *Steel Insert B
