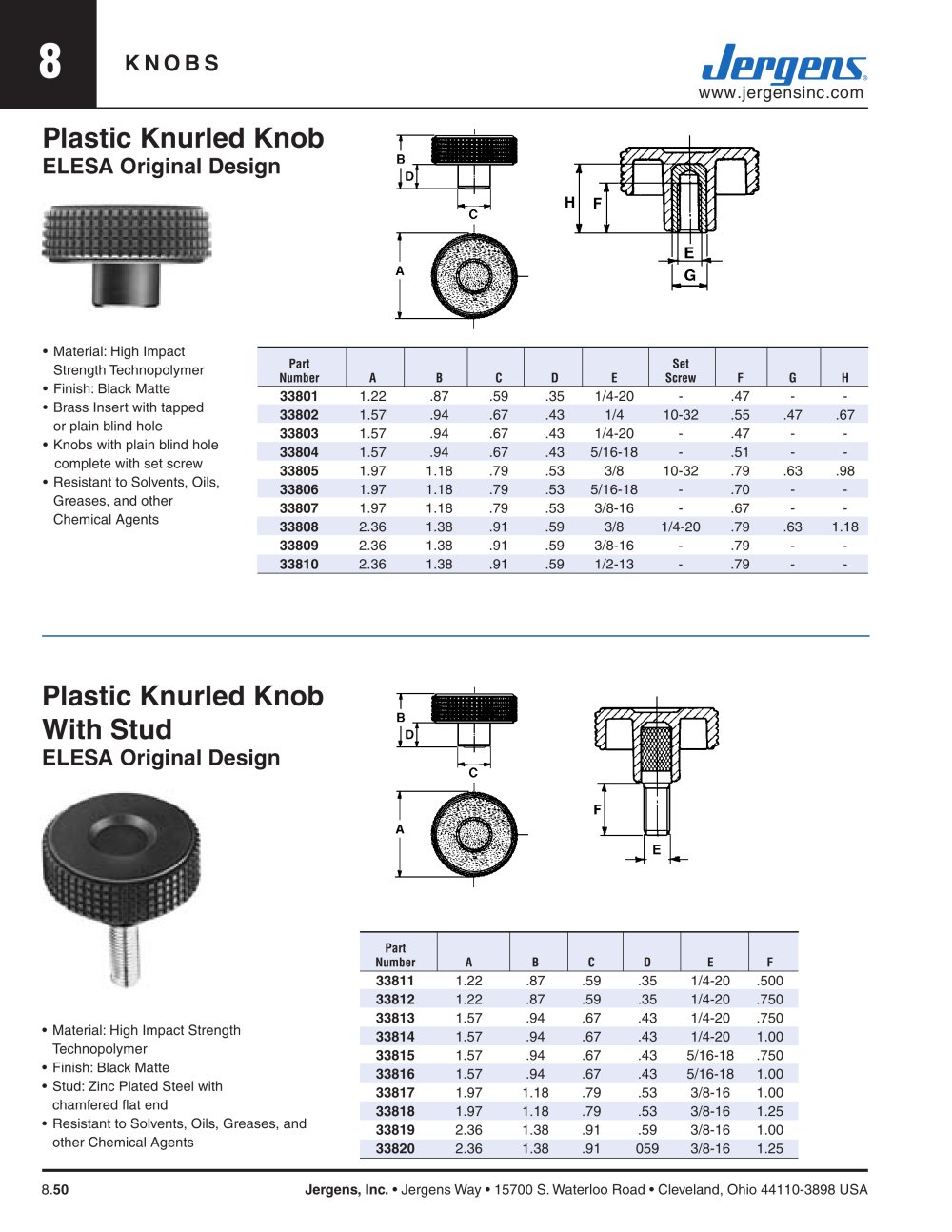

8 KNOBS www.jergensinc.com 8.50 Jergens, Inc. • Jergens Way • 15700 S. Waterloo Road • Cleveland, Ohio 44110-3898 USA Plastic Knurled Knob ELESA Original Design Part Set Number A B C D E Screw F G H 33801 1.22 .87 .59 .35 1/4-20 - .47 - - 33802 1.57 .94 .67 .43 1/4 10-32 .55 .47 .67 33803 1.57 .94 .67 .43 1/4-20 - .47 - - 33804 1.57 .94 .67 .43 5/16-18 - .51 - - 33805 1.97 1.18 .79 .53 3/8 10-32 .79 .63 .98 33806 1.97 1.18 .79 .53 5/16-18 - .70 - - 33807 1.97 1.18 .79 .53 3/8-16 - .67 - - 33808 2.36 1.38 .91 .59 3/8 1/4-20 .79 .63 1.18 33809 2.36 1.38 .91 .59 3/8-16 - .79 - - 33810 2.36 1.38 .91 .59 1/2-13 - .79 - - • Material: High Impact Strength Technopolymer • Finish: Black Matte • Brass Insert with tapped or plain blind hole • Knobs with plain blind hole complete with set screw • Resistant to Solvents, Oils, Greases, and other Chemical Agents Plastic Knurled Knob With Stud ELESA Original Design • Material: High Impact Strength Technopolymer • Finish: Black Matte • Stud: Zinc Plated Steel with chamfered flat end • Resistant to Solvents, Oils, Greases, and other Chemical Agents Part Number A B C D E F 33811 1.22 .87 .59 .35 1/4-20 .500 33812 1.22 .87 .59 .35 1/4-20 .750 33813 1.57 .94 .67 .43 1/4-20 .750 33814 1.57 .94 .67 .43 1/4-20 1.00 33815 1.57 .94 .67 .43 5/16-18 .750 33816 1.57 .94 .67 .43 5/16-18 1.00 33817 1.97 1.18 .79 .53 3/8-16 1.00 33818 1.97 1.18 .79 .53 3/8-16 1.25 33819 2.36 1.38 .91 .59 3/8-16 1.00 33820 2.36 1.38 .91 059 3/8-16 1.25
