HANDWHEELS 8
www.jergensinc.com
Phone 800-537-4367 or +1 216-486-5540 • Fax: +1 216-481-6193 • E-mail: info@jergensinc.com • www.jergensinc.com 8.5

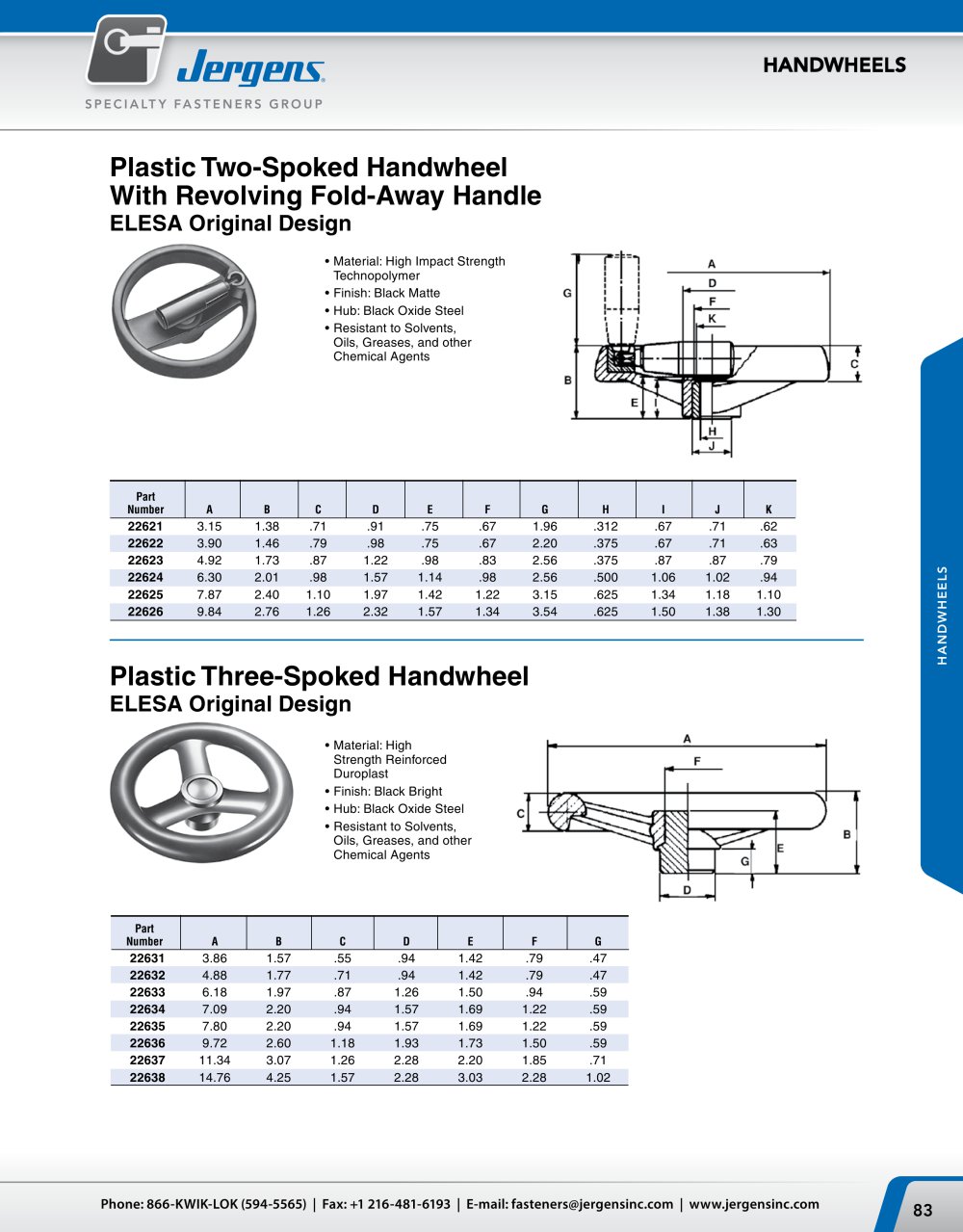

Plastic Two Spoked Handwheel
With Revolving Fold Away Handle
ELESA Original Design
Part
Number A B C D E F G
22631 3.86 1.57 .55 .94 1.42 .79 .47
22632 4.88 1.77 .71 .94 1.42 .79 .47
22633 6.18 1.97 .87 1.26 1.50 .94 .59
22634 7.09 2.20 .94 1.57 1.69 1.22 .59
22635 7.80 2.20 .94 1.57 1.69 1.22 .59
22636 8.72 2.60 1.18 1.93 1.73 1.50 .59
22637 11.34 3.07 1.26 2.28 2.20 1.85 .71
22638 14.76 4.25 1.57 2.28 3.03 2.28 1.02
• Material: High
Strength Reinforced
Duroplast
• Finish: Black Bright
• Hub: Black Oxide Steel
• Resistant to Solvents, Oils,
Greases, and other
Chemical Agents
Plastic Three Spoked Handwheel
ELESA Original Design
• Material: High Impact Strength
Technopolymer
• Finish: Black Matte
• Hub: Black Oxide Steel
• Resistant to Solvents, Oils,
Greases, and other
Chemical Agents
Part
Number A B C D E F G H I J K
22621 3.15 1.38 .71 .91 .75 .67 1.96 .312 .67 .71 .62
22622 3.90 1.46 .79 .98 .75 .67 2.20 .375 .67 .71 .63
22623 4.88 1.73 .87 1.22 .98 .83 2.56 .375 .87 .87 .79
22624 6.30 2.01 .98 1.57 1.14 .98 2.56 .500 1.06 1.02 .94
22625 7.87 2.40 1.10 1.97 1.42 1.22 3.15 .625 1.34 1.18 1.10
22626 8.84 2.76 1.26 2.32 1.57 1.34 3.54 .625 1.50 1.38 1.30
